¯Feature:

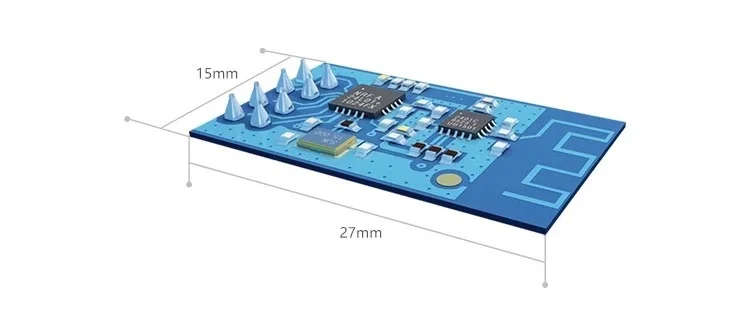

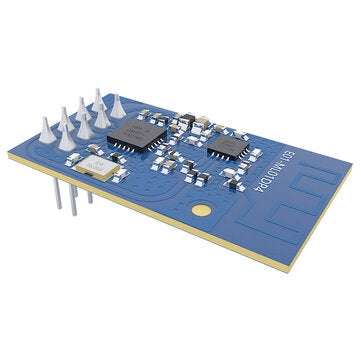

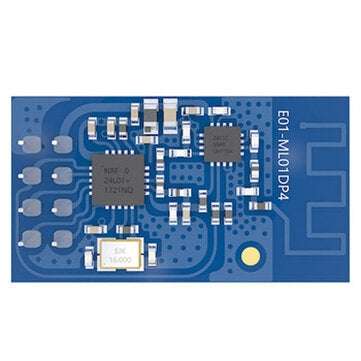

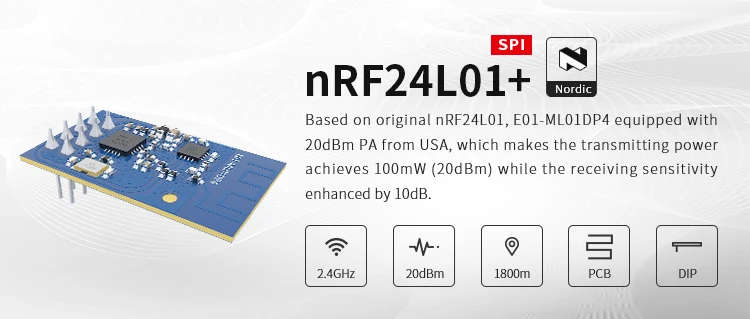

E01-ML01DP4 is based on original imported nRF24L01P form Nordic in Norway. And equipped with 20dBm power amplifier chip imported from USA, which makes the transmitting power achieves 100mW (20dBm) while the receiving sensitivity enhanced by 10dB. With high-performance PCB antenna and impedance matching, it is convenient for embedded development without external antenna.
RFParameter | Value | Remark |
Workingfrequency | 2400~2525MHz | Default:2.4GHz(16MHzoscillator) |
Transmittingpower | 20dBm | Max.Power(100mW) |
Receivingsensitivity | -96dBm | Datarate:250kbps |
Datarate | 250k~2Mbps | Default:250kbps |
Testdistance | 1800m | Inopenandclear,withmaximumpower,5dBiantennagain,heightof2m,datarate:250kbps |
Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
Power supply | 2 | 3.3 | 3.6 | V | |
Communication level |
