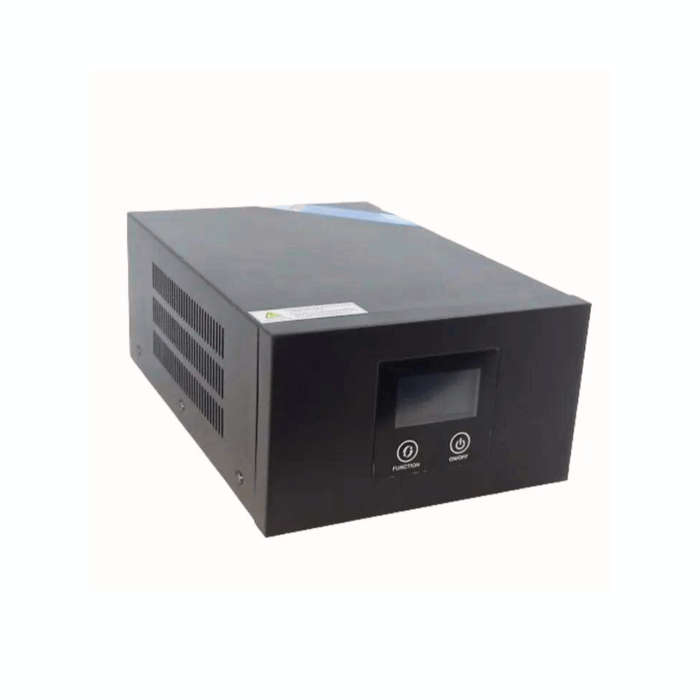

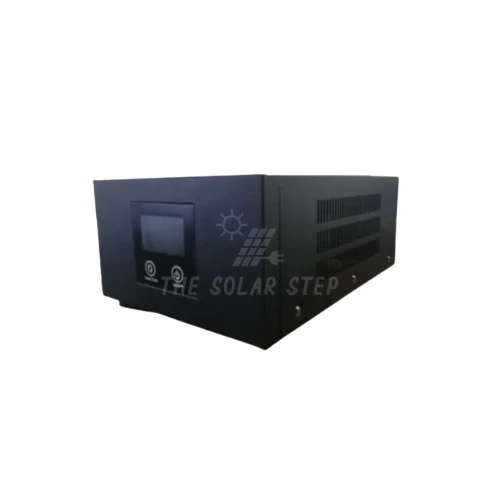

Ecco 1000W 12V Pure Sine Wave Inverter UPS (NS-1000)

Product Overview

Experience reliable power with the Ecco NS-1000 Pure Sine Wave Inverter. Designed to deliver a continuous output of 1000W, this inverter ensures that your devices run smoothly and efficiently.

Key Specifications

• Rated Output Power: 1000W
• Input Rated Power: 220/230 VAC (+25%, 35%)
• Frequency: 60/50 ± 10%
• Output Voltage Regulation: 220/230 ± 10% (Automatic adjustment)
• Conversion Time: Transfer time < 9ms
• Waveform: Pure Sine Wave

Safety Features

• Overload Protection
• Input Over Voltage Protection
• DC Voltage Protection
• Overload Protection: 100-120% for 30 seconds; > 120%, 100 ms; > 150%, 50 ms
• Output Short Circuit Protection < 150 microseconds

Technical Details

• Battery Voltage: 24VDC (Sealed, maintenance-free lead acid)
• Charging Current: 8-13A
• Dimensions: 37 x 24 x 14 cm
• Wide Input Voltage Range: Adapts to harsh power environments

Features

• Pure Sine Wave UPS/Inverter
• Power: 1000W
• Voltage: 12VDC
• Charging Current: 30A
• PV Input Voltage Range: 15V-44V
• Max PV Input Voltage: 50V (At lowest temperature)
• PV Array Maximum Power: 420W

Note: The battery bars on the inverter display will decrease by one bar if the battery level drops by 1%. Use a multimeter for precise battery voltage calculations.

What's in the Box

• 1 x Ecco NS-1000 12V/30A Pure Sine Wave Solar Inverter
• 1 x User Manual
• 2 x Battery Cables

1 Year Warranty
