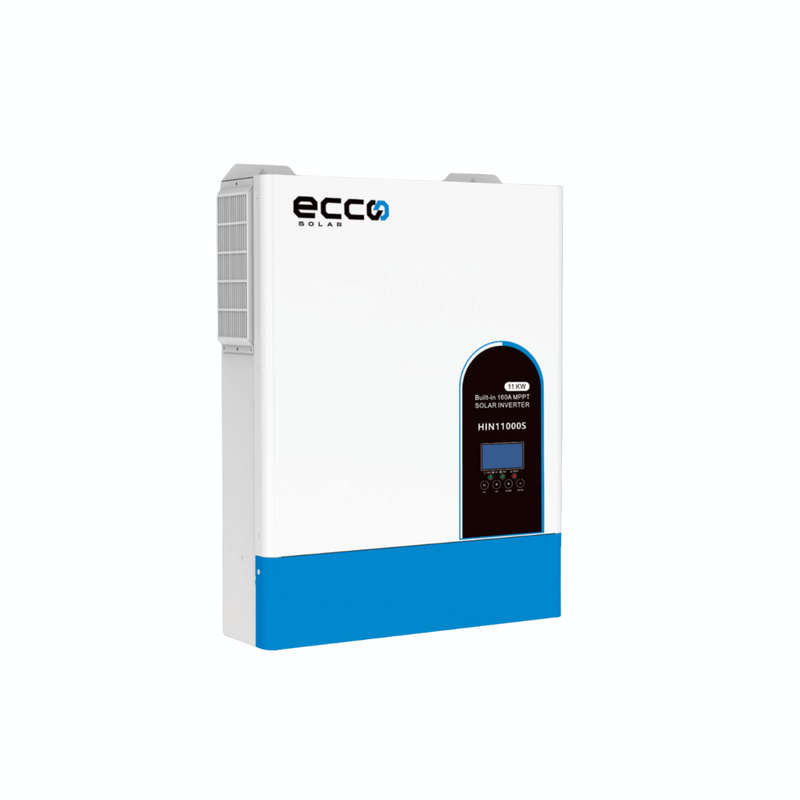

Ecco 11KVA / 11000W MPPT Hybrid Inverter 48V / Pure Sine Wave

Ecco 11KVA / 11000W MPPT Hybrid Inverter | 48V | Pure Sine Wave | Built-in 160A MPPT Solar Charger

Product Description:

High-Performance Hybrid Inverter for Reliable Solar Power

The Ecco 11KVA / 11000W MPPT Hybrid Inverter is a versatile and efficient power solution for off-grid and hybrid solar energy systems. With dual MPPT technology, battery-free operation capability, and lithium battery compatibility, this inverter provides seamless energy conversion for homes and businesses.

Key Features:

Advanced Solar & Battery Management

• Built-in Dual MPPT (160A) Maximizes solar efficiency with up to 11,000W PV input.
• 500V DC Maximum PV Input Voltage Ensures broad solar compatibility.
• Compatible with LiFePO4 Batteries Communicates via RS485 for optimized performance.
• Battery Activation via PV or Utility Enables smooth startup and operation.
• EQ Function Optimizes battery performance and extends lifecycle.

High-Quality Power Output

• Pure Sine Wave Technology Ensures stable power delivery for sensitive electronics.
• Power Factor 1.0 Provides full-rated output power without compromise.
• Surge Protection: 2200VA capacity for high startup loads.
• Multiple Output Priorities: SUB, SBU, SUF for flexible energy management.

Flexible Energy Management

• Capable of Operating Without Batteries Ideal for grid-tied applications.
• Acceptable Input Voltage Range:
  • 90-280V AC (for home appliances).
  • 170-280V AC (for computers).
• Fast Transfer Time: 10ms (computers) / 20ms (home appliances) for uninterrupted operation.

User-Friendly & Durable Design

• Detachable Dust Cover Designed for harsh environmental conditions.
• WiFi Remote Monitoring (Optional) Enables real-time system tracking.
• 94% Peak Efficiency High energy conversion rate to reduce power loss.

Technical Specifications:

Power Output:

• Rated Power: 11,000W (11KVA)
• Nominal Voltage: 220V / 230V / 240V AC
• Surge Power: 2200VA
• Frequency: 50/60Hz (Auto Sensing)
• Waveform: Pure Sine Wave
• Peak Efficiency: 94%
• Overload Protection: 5s @ 140% Load

Battery & Charging:

• Battery Voltage: 48V DC
• Maximum Discharge Current: 220A
• Floating Charge Voltage: 54V DC
• Overcharge Protection: 63V DC
• Charging Method: Constant Current / Constant Voltage (CC/CV)

Solar & AC Charger:

• Solar Charger Type: MPPT
• Maximum PV Array Power: 11,000W (5,500W × 2)
• Max PV Open Circuit Voltage: 500V DC
• MPPT Voltage Range: 60V DC 500V DC
• Max Solar Input Current: 18A × 2
• Max Solar Charge Current: 160A
• Max AC Charge Current: 120A
• Max Total Charge Current: 160A

General Specifications:

• Dimensions: 540 × 415 × 122 mm
• Net Weight: 15 kg
• Cooling Method: Internal Fan
• Noise Level: <60dB
• Protection Rating: IP20 (Indoor Use Only)

Communication & Monitoring:

• Communication Interfaces: RS232 / RS485 / Dry Contact
• LCD Display: For system monitoring and control
• Optional Connectivity: WiFi / Remote Monitoring

What's in the Box?

• 1 × Ecco 11KVA Hybrid Inverter
• 1 × User Manual

Warranty & Installation Requirements:

• 2-Year Manufacturer Warranty
• Must be installed by a qualified electrical wireman or Master Electrician registered with the Department of Labour.
• A valid Certificate of Compliance (COC) must be issued after installation.
• Installation must comply with SANS 10142 electrical standards.
• Warranty claims require installation photos, a valid COC, and proof of a qualified installer.

HIN11000S Datasheet
