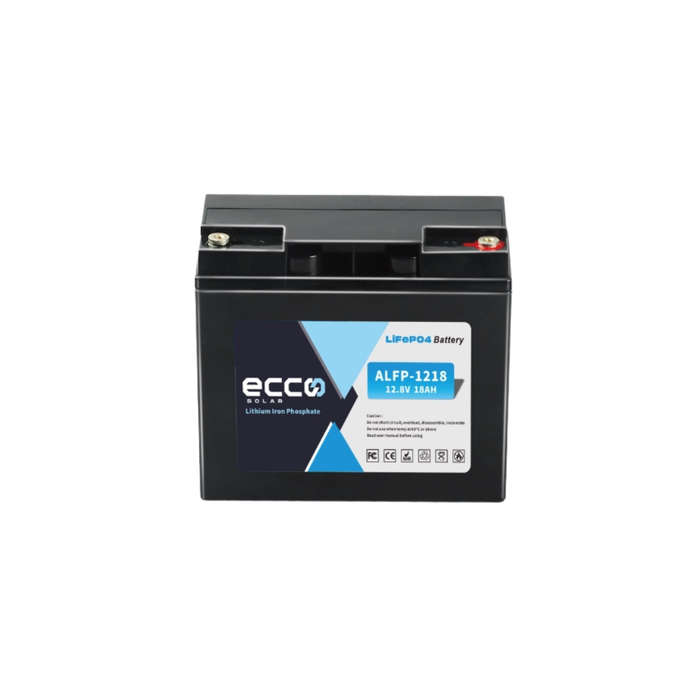

ECCO 12V 18AH LiFeP04 Lithium Battery

Ingle 12.8V 18Ah LiFePO Battery Lightweight, Long-Life Power

Description:

Engineered for efficiency and endurance, the Ingle 12.8V 18Ah Lithium Iron Phosphate (LiFePO) battery delivers a compact, lightweight energy solution for demanding applications. It serves as a direct drop-in replacement for traditional lead-acid batteries, with significantly improved cycle performance, weight reduction, and operational safety.

Key Features:

• Exceptional Lifespan: Up to 2000 charge cycles at 80% Depth of Discharge, reducing replacement frequency and lowering overall cost of ownership.

• Compact and Lightweight: Weighs only 2.2kgapproximately 60% lighter than typical lead-acid batteries.

• High Discharge Performance: Maintains stable capacity and power output even under high-load discharge conditions.

• Safe by Design: Built-in Lithium Iron Phosphate chemistry provides thermal stability and eliminates risks of combustion from impact or electrical faults.

• Wide Temperature Tolerance: Performs reliably in environments ranging from -20°C to 60°C.

• Direct Replacement: Designed as a plug-and-play substitute for standard 12V lead-acid batteries.

Technical Specifications:

• Voltage: 12.8V

• Capacity: 18Ah (230.4Wh)

• Cycle Life: 2000 cycles @ 80% DOD (35°C)

• Charging Voltage (Recommended/Max): 14.2V / 14.4V

• Charging Current (Recommended/Max): 9A / 15A

• Discharging Current (Recommended): 9A

• Max Pulse Current: 15A

• Discharge Cut-Off: 10.0V

• Terminal Type: M6 screw (6mm thread diameter)

• IP Rating: IP30

• Weight: 2.2kg

• Dimensions: 18.7cm (L) x 9.7cm (W) x 20.1cm (H)

Warranty:

This unit includes a 24-month limited warranty. Installation must be performed by a certified electrical wireman or master electrician, with a valid COC issued upon completion. Installations must fully comply with SANS 10142 standards. Warranty claims submitted without proper installation documentation and photographic proof will be deemed void.
