Title:
Ecco 3.5kVA 24V Hybrid Inverter 3500W, MPPT 100A, WiFi Ready
Description:

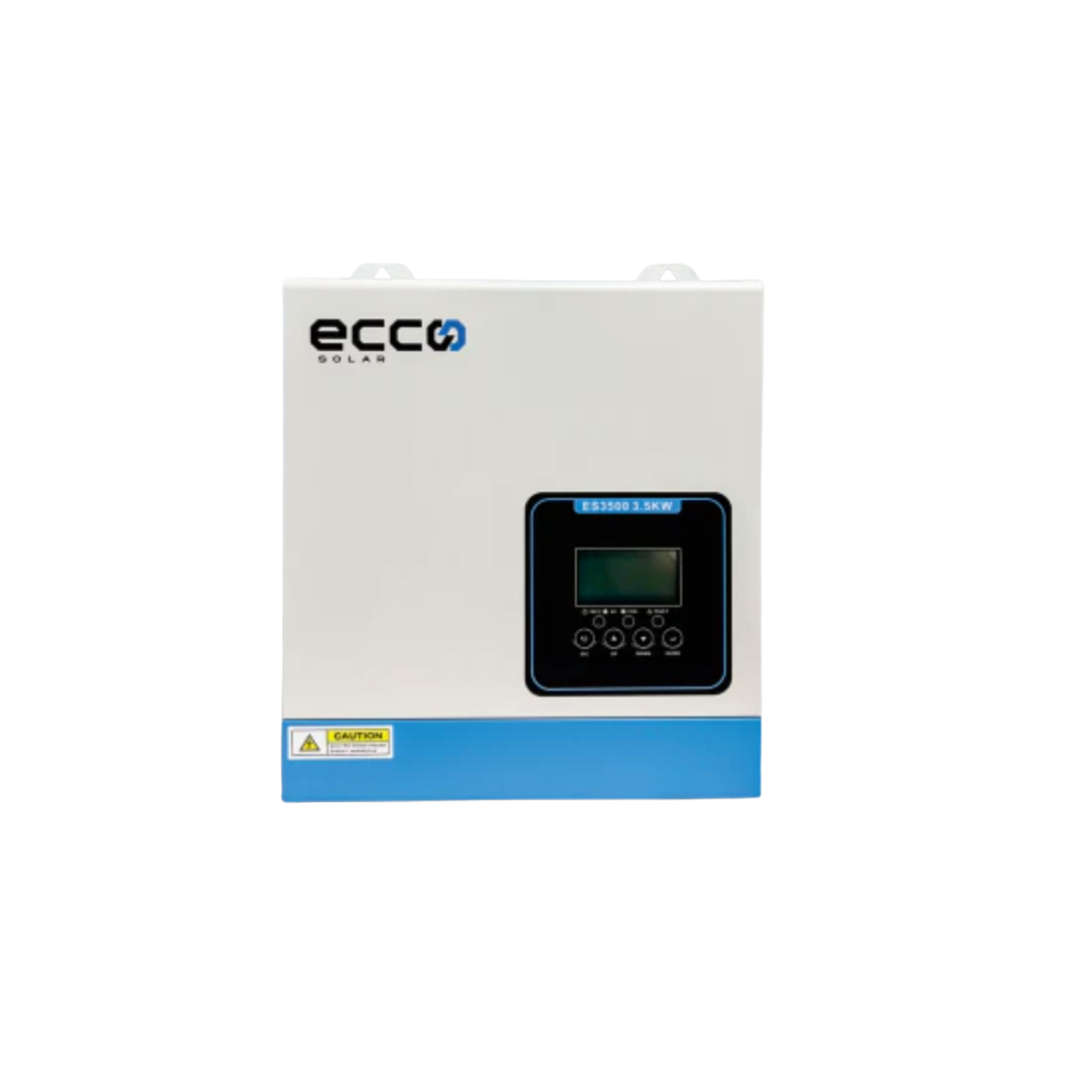

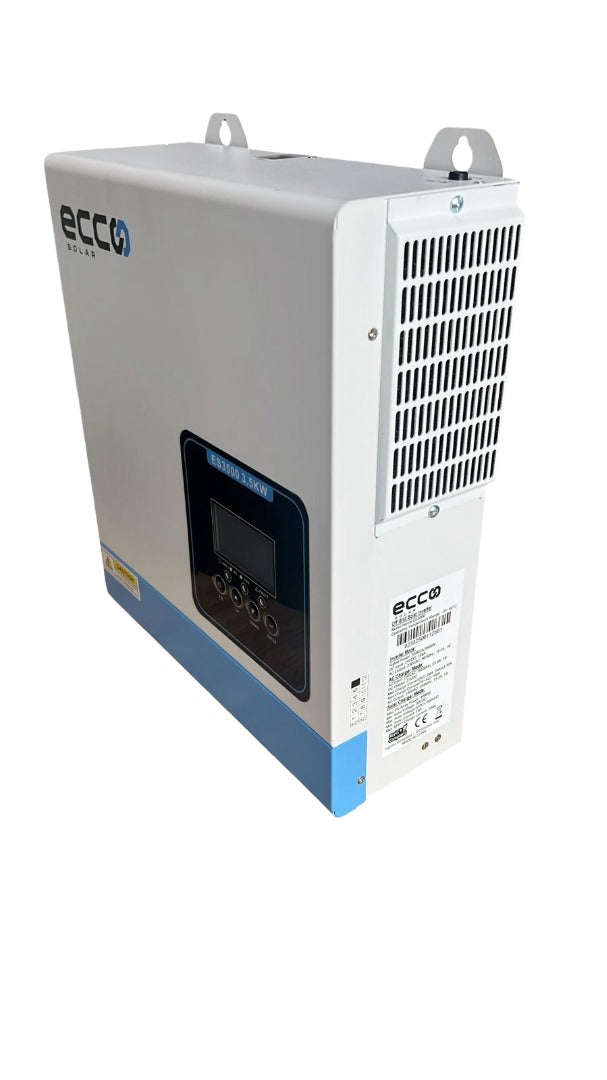

The Ecco ES3500 Hybrid Inverter is a compact yet powerful 3.5kVA (3500W) pure sine wave inverter, built for reliable home and small-office energy backup solutions. With integrated MPPT solar charging (100A), dual charging from AC and PV, and optional WiFi connectivity, this inverter ensures uninterrupted power during load-shedding while maximizing solar energy utilization.
Its lightweight design and robust safety protections make it an excellent choice for households, small businesses, or entry-level solar installations.

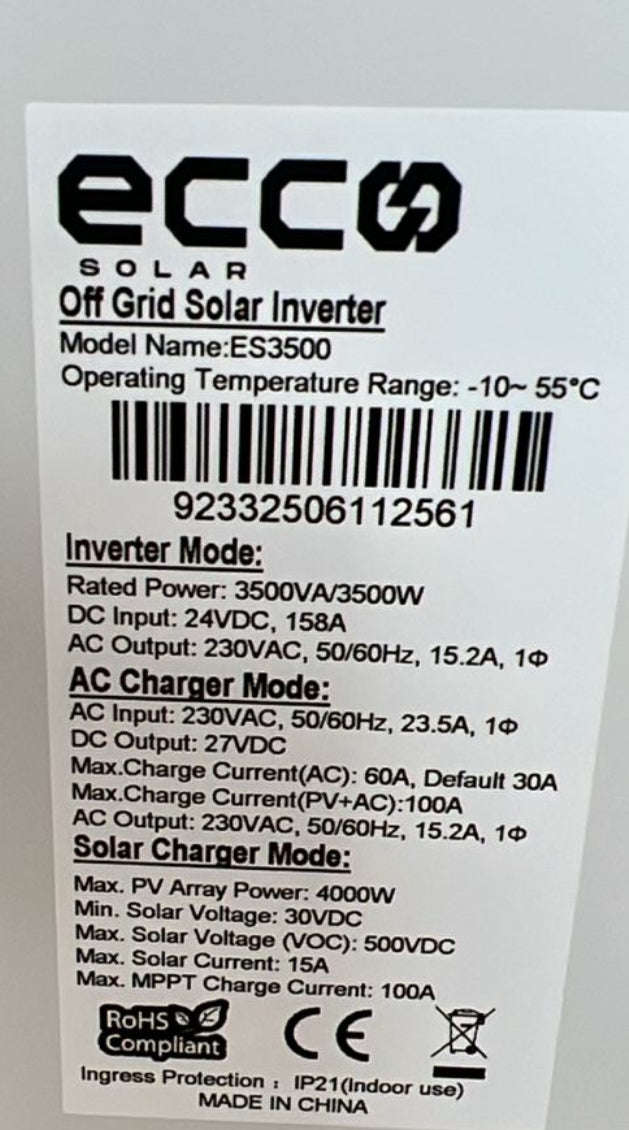

Key Features:
Pure Sine Wave Power
Rated Power: 3500VA / 3500W
Nominal System Voltage: 24VDC
Delivers clean, stable power for sensitive electronics
Smart AC Charger
AC Input: 230VAC (50/60Hz)
Max AC Charging Current: 60A
Combined AC + PV Charging Current: Up to 100A
AC Output: 230VAC
Solar Charger (MPPT)
Max PV Input Power: 4000W
Solar Voltage Range: 30VDC 500VDC (VOC max)
MPPT Operating Range: 120VDC 450VDC
Max MPPT Charging Current: 100A
Compact & Lightweight
Dimensions: 359 × 295 × 100 mm
Net Weight: 7kg
Easy to install and integrate into existing systems
Optional WiFi Monitoring
Compatible with WiFi dongle for app-based and remote system monitoring
Track system performance, charging, and load usage in real-time
Benefits of the Ecco ES3500 Hybrid Inverter:
Reliable Backup Power
Provides 3.5kVA continuous pure sine wave output, suitable for essential loads like TVs, routers, lights, and small appliances.
Flexible Charging Options
Combines solar + AC charging up to 100A for faster, more efficient battery management.
Solar Ready
Supports up to 4000W of solar PV input for off-grid and hybrid functionality.
Compact & Lightweight
At only 7kg, it's easy to install in homes or small businesses.
Smart Monitoring
Add a WiFi dongle to remotely view and control system performance from anywhere.
Warranty & Installation Requirements
5-Year Repair Warranty
Installation must be performed by a qualified wireman or master electrician
A valid Certificate of Compliance (COC) is required upon installation
The system must comply with SANS 10142 standards
Warranty claims will be denied if installation proof and compliance documents are not provided
