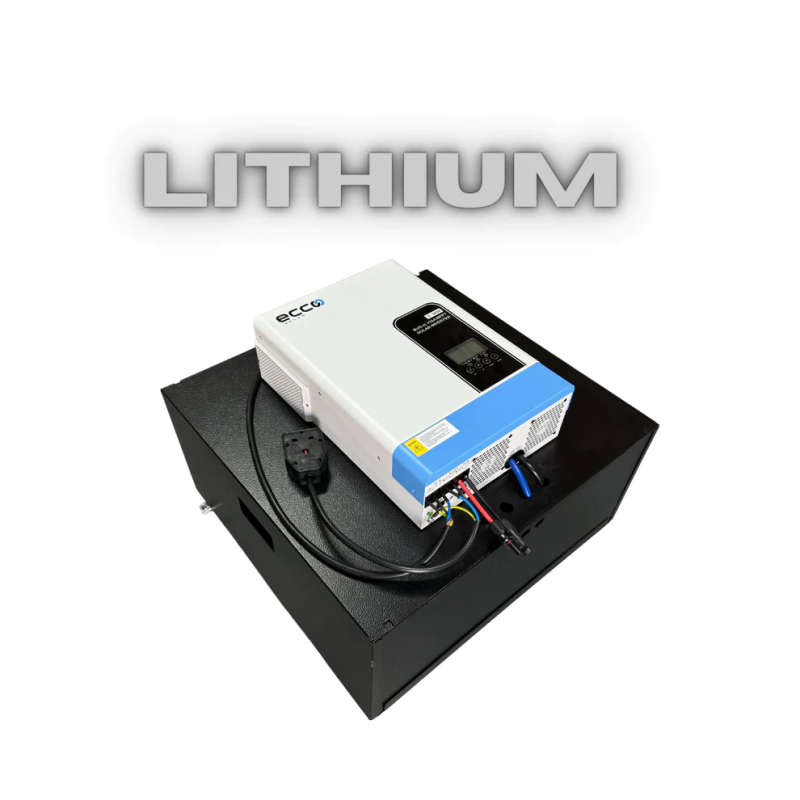

ECCO 3.5KVA (3500W) 24V Hybrid Inverter Plug & Play System + 2x 2.56kWh Lithium Batteries (5.12kWh) Solar Ready Backup Power
Product Description:
Reliable Load Shedding & Off-Grid Power Solution
The ECCO 3.5KVA Hybrid Inverter Plug & Play System is a portable all-in-one backup power solution designed to keep essential appliances running during load shedding or power failures. With a 3500W pure sine wave inverter and dual 2.56kWh lithium batteries (total 5.12kWh), this system ensures a seamless power transition, keeping your lights, WiFi, TV, and other essential devices operational.
Its solar-ready design allows for easy integration with solar panels, providing an off-grid or extended backup solution. Housed in a durable steel enclosure with lockable wheels, this system is plug-and-play, eliminating complex installation requirements.
Key Features:
- All-in-One Backup System: Inverter and lithium batteries housed in a portable steel enclosure.
- Pure Sine Wave Output: Ensures stable power for sensitive electronics.
- High-Efficiency MPPT Solar Controller (100A): Maximizes solar energy conversion.
- Extended Backup Time: Powers 150W essential loads (TV, WiFi, lights, etc.) for up to 60-65 hours.
- Multiple Charging Priorities: Selectable AC/solar charging modes for optimal performance.
- Fast Charging Capability: Supports simultaneous PV (solar) and AC charging up to 100A.
- Wireless Parallel Operation: Connect up to 12 units for higher power demands (parallel version).
- Smart Battery Management System (BMS): Prevents overcharge, deep discharge, and short circuits.
Technical Specifications Inverter:
- Model: ECCO 3.5KVA Hybrid Inverter
- Rated Power: 3500W (3.5KVA)
- Battery Voltage: 24V DC
- Waveform: Pure sine wave
- Efficiency: High energy conversion efficiency
- Transfer Time: 10ms (UPS mode) / 20ms (APL mode)
- AC Input Voltage: 230V ±5%
- Solar Input Voltage Range: 120V 500V DC
- Maximum Solar Charge Current: 100A
- AC Charging Current: 60A (Default: 30A)
- Total Charging Capacity (AC + Solar): 100A
Technical Specifications Lithium Battery (Total 5.12kWh):
- Battery Type: LiFePO4 (Lithium Iron Phosphate)
- Total Storage Capacity: 5.12kWh (2x 2.56kWh)
- Nominal Voltage: 25.6V DC
- Rated Capacity: 100Ah per battery
- Maximum Discharge Current: 100A
- Maximum Charge Current: 100A
- Cycle Life: Up to 10 years or 3000+ cycles
- Operating Temperature: Charge: 0°C to 55°C | Discharge: -20°C to 55°C
- Certifications: UN38.3, MSDS, CE
What's Included:
- 1 × ECCO 3.5KVA 24V Hybrid Solar Inverter
- 2 × 2.56kWh Lithium Batteries (Total 5.12kWh Storage)
- 1 × Portable Steel Enclosure with Lock Wheels
- 1 × Surge Plug (1m Power Cable, 2.5mm Cabtyre)
- 1 × Double-Sided Female Plug Socket
- 1 × Fuse & Disconnector (Battery to Inverter)
- Bolts, Wall & Rack Brackets
- User Manual & Communication Cable
Product Dimensions & Weight:
- Enclosure Size: 60cm × 60cm × 45cm
- System Weight: Approx. 65kg
- Inverter Dimensions: 38cm × 55cm × 20cm
- Inverter Weight: 9.65kg
Installation & Warranty:
- System Warranty: 5 years (repair coverage)
- Installation Requirement: Must be installed by a qualified electrician with a valid registration and compliant with SANS 10142 regulations.
- Warranty Claims: Require installation photos, a Certificate of Compliance (COC), and proof of qualified installation.
Why Choose This System?
This plug-and-play hybrid power system provides a long-lasting, energy-efficient backup solution for homes and small businesses. With dual lithium batteries, a pure sine wave inverter, and solar compatibility, it ensures uninterrupted power during outages and a sustainable energy alternative for long-term use.
