Ecco 3.5KVA / 3500W 24V MPPT Hybrid Inverter + 2.56kWh 25.6V 100Ah Lithium Battery + 3x 460W Mono...

ECCO Hybrid Inverter 24v 3.5 Kva 3500w Mppt 100A Inverter Pure Sine Wave - Ecco

Ecco 3.5KVA / 3500W 24V MPPT Hybrid Inverter + 2.56kWh 25.6V 100Ah Lithium Battery + 3x 450W Mono Crystal Solar / Backup Power Solution

Description:

The Ecco 3.5KVA Hybrid Inverter paired with a 2.56kWh 25.6V 100Ah Lithium Iron Phosphate Battery provides an efficient, long-lasting backup power and solar energy storage solution. Ideal for home and business applications, this system ensures uninterrupted power, optimized battery performance, and high solar energy efficiency.

Note: Solar panels are couriered at the buyer's risk.

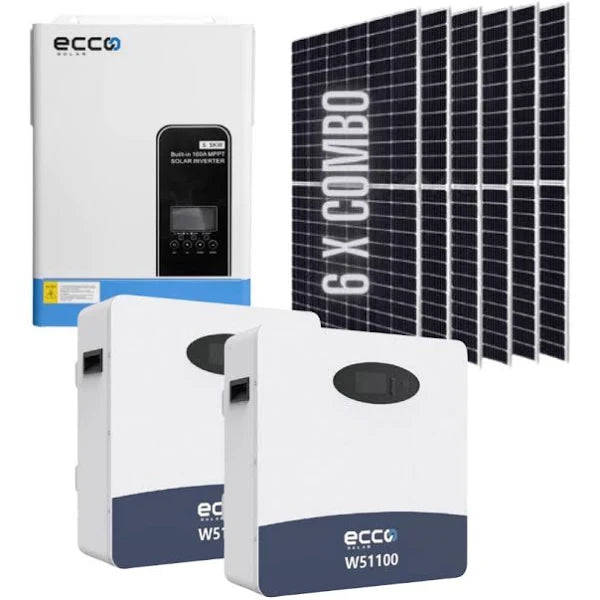

This combo includes only what is shown in the image.

Key Features:

Inverter Features:

• 3500W Pure Sine Wave Output Provides clean, stable power for sensitive appliances and electronics.
• MPPT Solar Charge Controller (100A Built-in) Improves solar charging efficiency by up to 30% compared to PWM controllers.
• Power Factor 1.0 Maximizes inverter efficiency.
• High PV Input Voltage Range (30V - 160V DC) Supports high-efficiency solar panels.
• Multiple Output Priority Modes:
  • UTL (Utility First) Prioritizes grid power.
  • SOL (Solar First) Maximizes solar energy usage.
  • SBU (Solar & Battery First) Ideal for off-grid setups.
• Battery Equalization Function Enhances battery lifespan and performance.
• Lithium Battery Activation Supports RS485 BMS communication for lithium battery integration.
• Detachable Dust Cover Designed for harsh environments to extend lifespan.
• Wi-Fi Monitoring (Optional Add-On) Enables real-time system tracking with the Ecco Hybrid Inverter Wi-Fi Dongle.

Inverter Specifications:

• Rated Power: 3500VA / 3500W
• DC Input: 24VDC (158A)
• AC Output: 230VAC, 50/60Hz (15.2A)

AC Charger Mode:

• AC Input: 230VAC, 50/60Hz (23.5A)
• DC Output: 27VDC
• Max Charge Current: 80A
• Max Combined Charge Current (AC + PV): 100A
• AC Output: 230VAC, 50/60Hz (15.2A)

Solar Charger Mode:

• Max PV Array Power: 4000W
• Min Solar Voltage: 60VDC
• Max Solar Voltage (VOC): 500VDC
• Max Charge Current: 100A

Physical Specifications:

• Dimensions: 359mm x 295mm x 100mm
• Weight: 7kg

Battery Specifications (Ecco 2.4kWh 25.6V 100Ah Lithium Iron Phosphate Battery):

• Type: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 25.6V
• Capacity: 100Ah (2.56kWh)
• Cycle Life: Up to 20 times longer than lead-acid alternatives.
• Power Output: Twice the power of lead-acid batteries, even under high discharge rates.
• Standard Charge Voltage: 29.2V (±0.2V)
• Max Pulse Current: 120A
• Operating Temperature Range: -20°C to 60°C
• IP Rating: IP30 (Indoor Use)
• Terminal Type: M6
• Mounting Options: Rack-mount or wall-mounted
• Weight: 25.5kg
• Dimensions: 442 x 400 x 132mm
• Warranty: 5-Year Manufacturer's Warranty

What's Included in the Package:

• 1x Ecco 3.5KVA / 3500W 24V MPPT Hybrid Inverter
• 1x Ecco 2.56kWh 25.6V 100Ah Lithium Iron Phosphate Battery
• 3x 460W Mono Crystal Solar Panels
• User Manual

Optional Add-On:

• Ecco Hybrid Inverter Wi-Fi Dongle (For remote system monitoring)

Important Notes:

• Solar panels are couriered at the buyer's risk.
• This combo includes only what is shown in the image.
• Installation must be performed by a qualified wireman or master electrician.
• A valid Certificate of Compliance (COC) is required for warranty claims.
• Warranty claims without professional installation proof, installation photos, or a valid COC may be rejected.

Ideal For:

• Load shedding and backup power solutions
• Small business and home solar systems
• Off-grid and hybrid solar energy storage
• Sustainable energy solutions with long-lasting lithium technology

Installation & Warranty Information:

• Inverter Warranty: 5-Year Repair Warranty
• Battery Warranty: 5-Year Manufacturer's Warranty
