Ecco 3.5KVA / 3500W Hybrid Inverter + 2.56kWh 25.6V 100Ah Lithium Battery / MPPT 100A / Pure Sine...

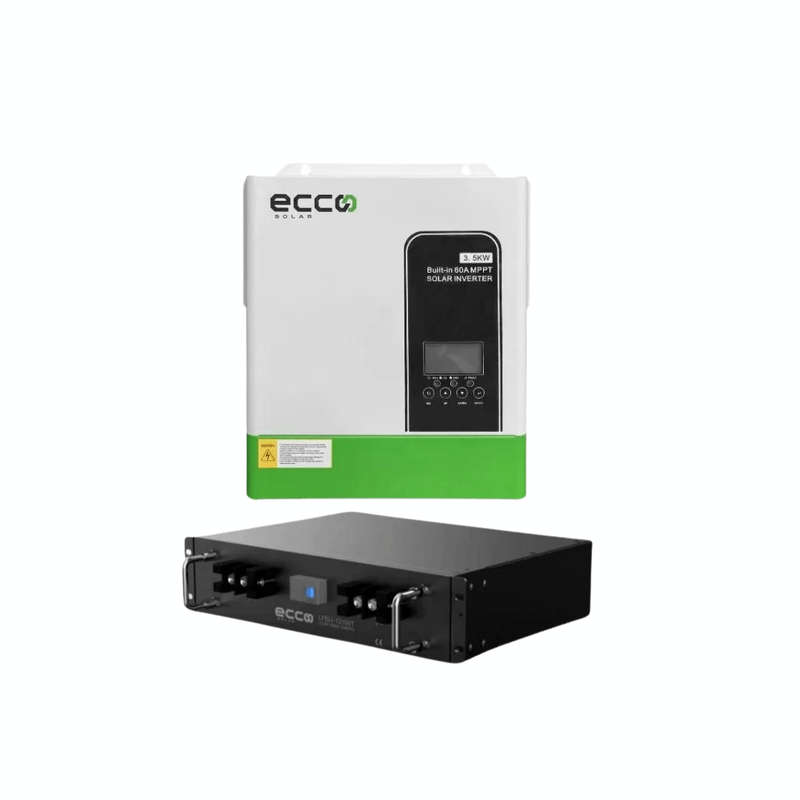

3.5KVA / 3500W MPPT 100A Ecco Pure Sine Wave Hybrid Inverter + 2.56 kWh 25.6V 100AH Lithium

Product Overview

The Ecco 3.5kVA 3500W Hybrid Inverter combined with the 2.56kWh 25.6V 100Ah Lithium Battery offers an efficient, high-performance energy solution for both residential and commercial solar applications. With its pure sine wave output and MPPT 100A charge controller, this combo kit ensures optimal power efficiency, reliable backup, and seamless integration with solar power systems.

Key Features:

• Hybrid Functionality: Supports grid, solar, and battery power for versatile energy management.
• Pure Sine Wave Output: Ensures stable, high-quality power for sensitive electronics.
• MPPT Solar Charger (100A): Maximizes solar panel efficiency for improved performance.
• Wi-Fi Monitoring (Optional): Connect a Wi-Fi dongle (sold separately) for remote monitoring.
• High Power Output: 3.5kVA / 3500W capacity supports demanding appliances and devices.
• Wide Solar Voltage Range: Compatible with solar arrays up to 500VDC.

Technical Specifications:

Inverter Mode:

• Rated Power: 3500VA / 3500W
• DC Input: 24VDC (158A)
• AC Output: 230VAC, 50/60Hz (15.2A)

AC Charger Mode:

• AC Input: 230VAC, 50/60Hz (23.5A)
• DC Output: 27VDC
• Max Charge Current: 80A
• Max Combined Charge Current (AC + PV): 100A
• AC Output: 230VAC, 50/60Hz (15.2A)

Solar Charger Mode:

• Max PV Array Power: 4000W
• Min Solar Voltage: 60VDC
• Max Solar Voltage (VOC): 500VDC
• Max Charge Current: 100A

Physical Specifications:

• Dimensions: 359mm x 295mm x 100mm
• Weight: 7kg

Lithium Battery Features (Ecco 25.6V 100Ah Lithium Iron Phosphate)

• Battery Type: Lithium Iron Phosphate (LiFePO4) Known for long lifespan and safety.
• Voltage: 25.6V
• Capacity: 100Ah
• Energy Storage: 2.56kWh Reliable power for off-grid systems and backup power.
• Cycle Life: 2000+ cycles at 100% Depth of Discharge (DOD) Designed for long-term use.
• IP30 Rating Protected against dust ingress, suitable for indoor installations.
• Max Pulse Current: 120A Capable of handling high-power demands.
• Weight: 25.5kg Lighter than traditional batteries, providing easier handling and installation.
• Mounting Options: Wall-mountable or rack-mounted for flexible installation.
• Standard Charging Voltage: 29.2V ±0.2V Optimized for standard charge requirements.
• Built-in Battery Management System (BMS) Ensures safe operation and battery longevity.
• Environmentally Friendly Lithium iron phosphate is safer and more sustainable compared to other battery chemistries.

Package Includes:

• 1x Ecco 25.6V 100Ah Lithium Battery (2.56kWh, 5-Year Warranty)
• 1x Ecco 3.5kVA Hybrid Inverter (3500W, MPPT 60A, Pure Sine Wave, 5-Year Repair Warranty)

Installation & Warranty Guidelines

• Qualified Installation Required: All inverters and batteries must be installed by a certified electrical wireman or Master Electrician registered with the Department of Labour.
• A Certificate of Compliance (COC) is required for valid warranty claims.
• The installation must comply with SANS 10142 standards and all relevant regulations.
• Warranty claims will not be honored without installation photos, a valid COC, and proof of installation by a qualified professional.

Optional Add-On:

• Ecco Inverter WiFi Dongle For remote monitoring of your system via a smartphone app.

ADD ECCO INVERTER WIFI DONGLE :

https://gridsolutionssa.co.za/shop/new-arrivals/ecco-hybrid-inverter-wifi-dongle/
