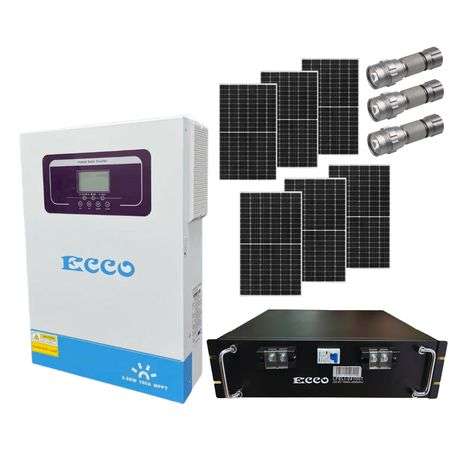

Ecco 3.5kw Invertor 25V Lithium Battery, 6x 410w Solar Panel and Stier Torch Complete Off Grid Clean

High Voltage VDC500V

3.5KVA/3500W 100A Pure Sine Wave Solar Inverter

Features
- Pure Sine Wave Solar Inverter
- Output Power Factor 1
- High PV Input Voltage Range (120VDC - 500VDC)
- Built-in 100A MPPT Solar Controller
- Supports Multiple Output Priority: UTL, SOL, SBU, SUB
- Parallel Operation with Up to 12 units (Parallel Version)
- Supports Parallel Operation in Single Phase/ 3 Phase (Parallel Version)
- Supports Wireless Parallel, Without Extra Sharing Current Cable
- RS485 Communication for BMS
- Wifi Monitoring
- Battery Equalization Function to Optimise Battery Performance and Extended Lifecycle

Specifications:-

Inverter Mode
- Rated Power: 3500VA / 3500W
- DC Input: 24VDC, 158A
- AC Output: 230VAC, 50/60Hz, 23.5A

AC Charger Mode

AC Input: 230VAC, 50/60Hz, 23.5A
DC Output: 27VDC
Max. Charge Current(AC): 60A Default 30A
Max. Charge Current(PV+AC): 100A
AC Output: 230VAC, 50/60Hz, 15.2A

Solar Charge Mode

Max. PV Array Power: 4000W
Min. Solar Voltage: 120VDC
Max. Solar Voltage (VOC): 500VDC
Max. MPPT Charge Current: 100A

Ingress Protection: IP21 (Indoor Use)
Dimensions ; 38 x 55 x 20 cm
Weight : 9.65kg

Battery Specs

Lithium Ion Phosphate
Lighter weight and higher power
25.6v voltage 100ah
standard charge 29.2+- 0.2v
Max Pulse current 120a
Ip30 Class
25.5kb weight
20 year long cycle Life

Solar Panel Specs

410W Maximum Power
Mono Solar Cell
Anodized Aluminum Alloy
46.53V Operating Voltage
21.1 Module Efficiency
13.89 Amp Operating Current
49.95 Operating circuit voltage
-40C - +85C Operating Temperature

What's in the box

• 1 x ECCO 3.5KW Inverter
• 1 x Wifi Monitoring Module
• 3 x Connecting Cables
• 2 x User Guide
• 1 x 24v/100ah Lithium Ion Battery
• 6 x Ecco 410w Solar Panel
• 2 x Stier Torch
