The perfect solution for load shedding!

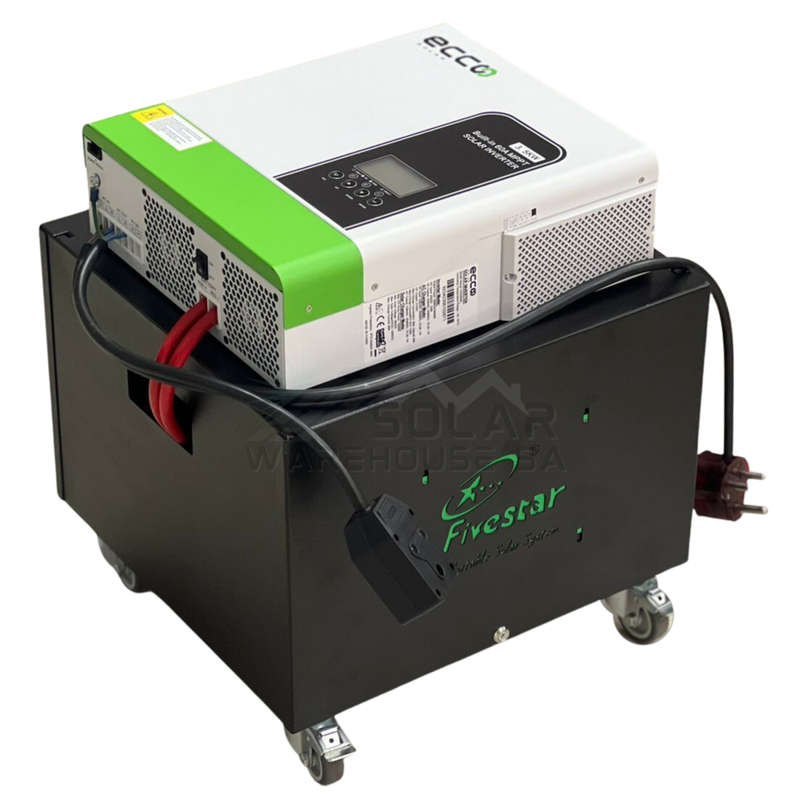

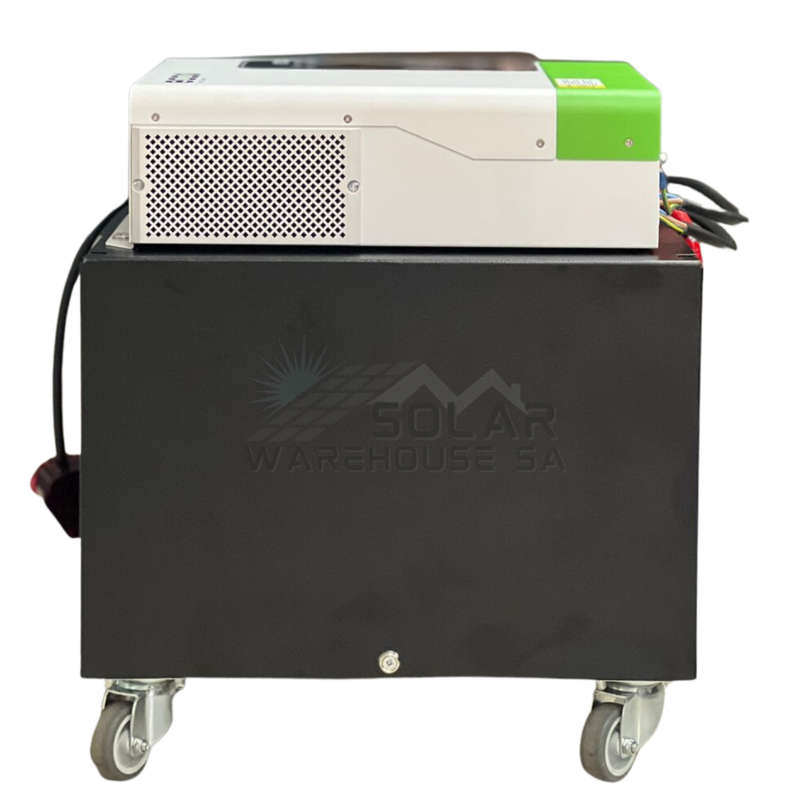

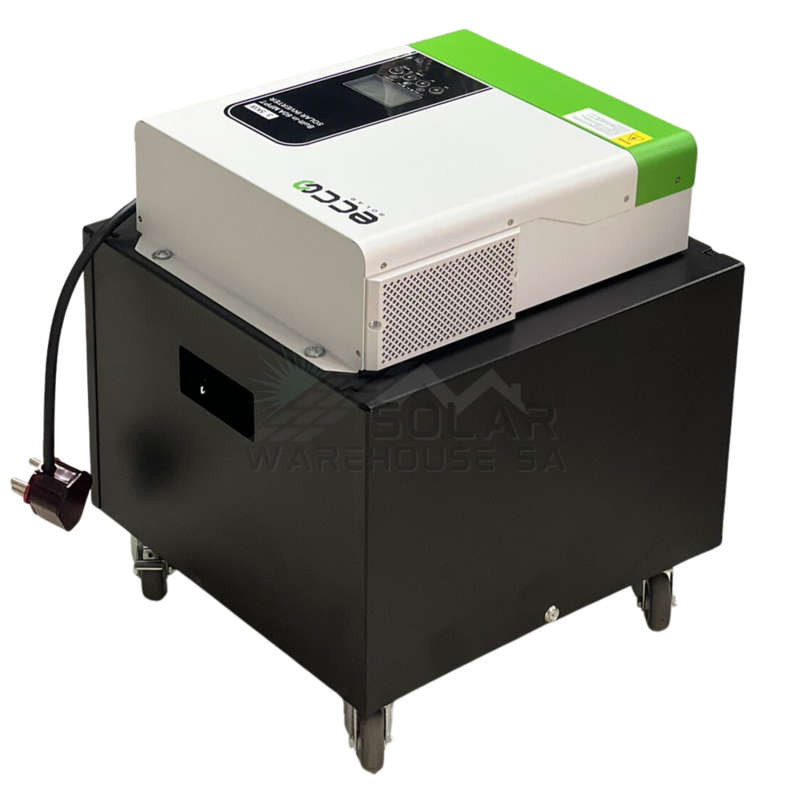

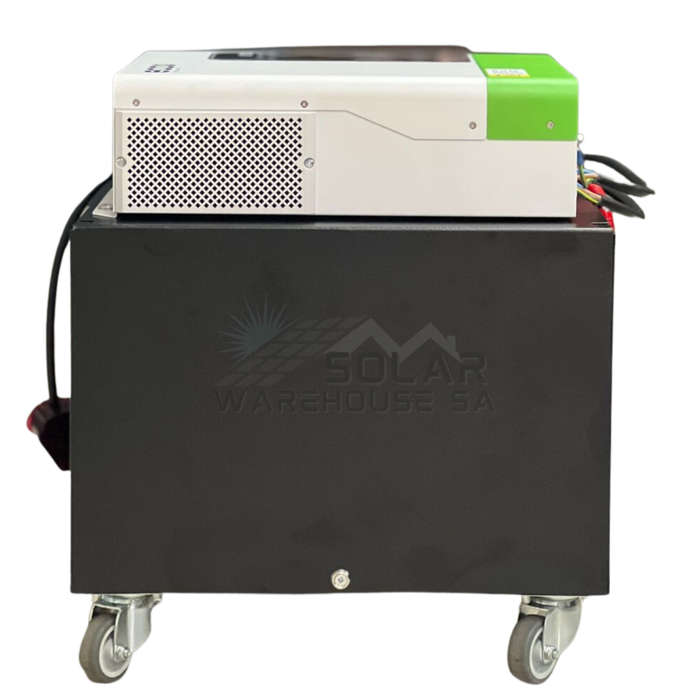

The all-in-one portable plug & play inverter battery trolley system (Heavy Duty Inverter Trolley) Easy portable compact unit with lock wheels as well as handles to carry the system.
PLEASE NOTE TROLLEYS TAKE 2-3 HOURS TO ASSEMBLE
What is an all-in-one portable plug & play Solar Ready inverter system and what does it do?
It is an inverter unit connected to a battery that provides power when there is load shedding. It will charge your battery once the power is on. As soon as load shedding hits, your inverter system instantly transfers over to battery power. This will allow you to keep your lights, TV, computers, chargers, and wifi running during load shedding. Solar ready : Add a solar panel and charge your batteries when there is no power.
How much battery backup power will I have when the power is off?
If you connect 100w which is usually a TV, Wifi, Lights, etc. This portable system will last 8-10 Hours.
Inverter Specifications & Fixtures:

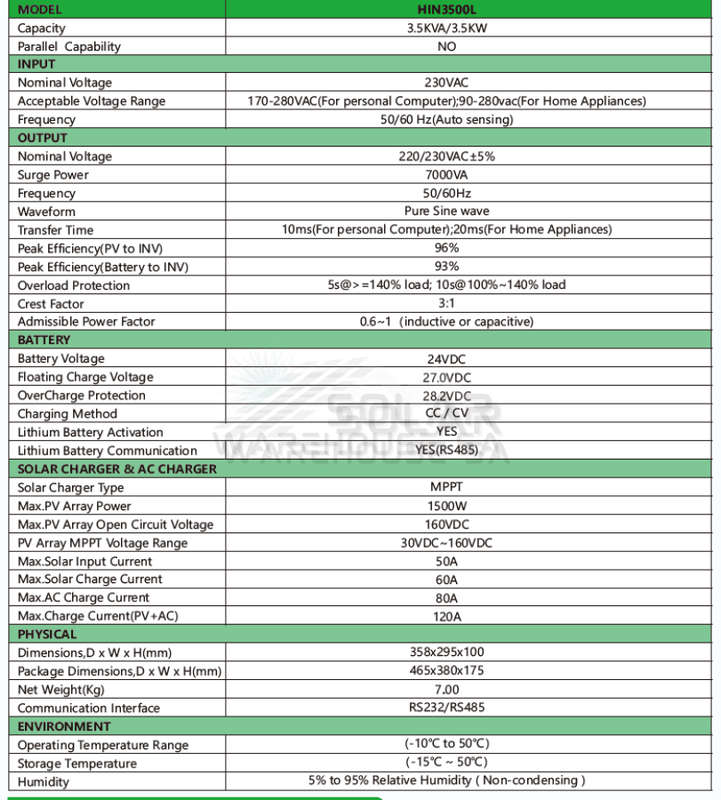

Hybrid Inverter 24v 3.5 Kva 3500w Mppt 60A Inverter Pure Sine Wave - Ecco
Features:
Pure sine wave
Power factor 1.0
PV input Voltage 30Vdc~160Vdc
Built-in MPPT 60A
Detachable dust cover for harsh environment
WiFi remote monitoring optional
Support multiple output priority: UTL, SOL, SBU,
RS485 BMS Communication
Lithium battery activation
How to maximize battery life:
Keep your inverter system plugged in and switched on, this will keep your batteries at full charge.
Plug & Play System Size & Weight:
40 x 40 x 45 cm
53KG
This all-in-one system Includes:
1x Hybrid Inverter 24v 3.5 Kva 3500w Mppt 60A Inverter Pure Sine Wave - Ecco (Green)
5 Years Warranty on the inverter

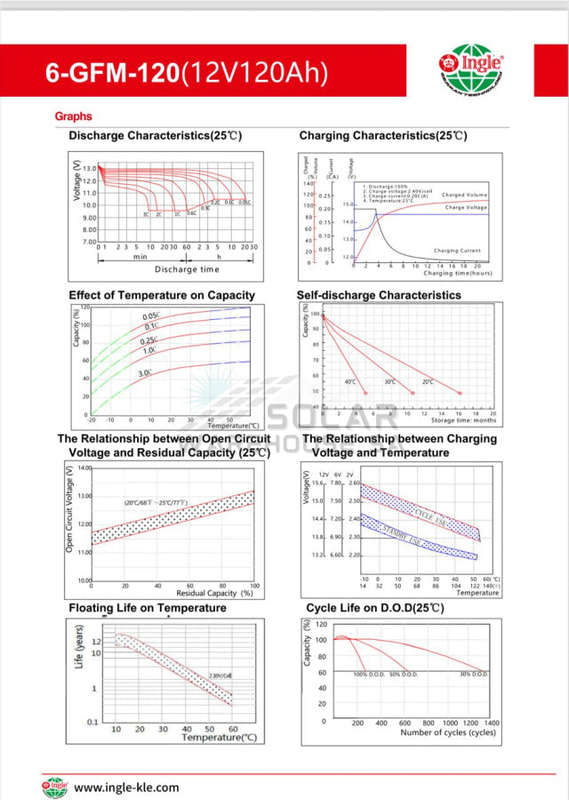

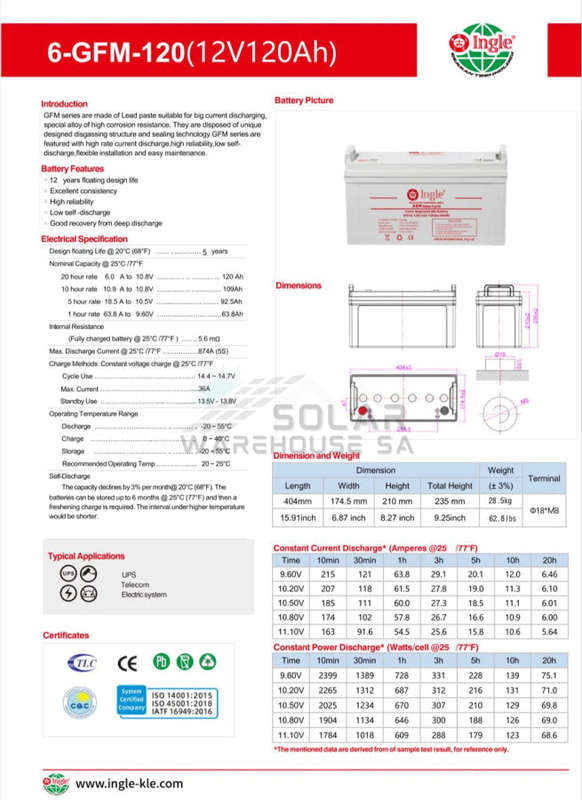

2x AGM Gel Battery 120 Ah Deep Cycle Battery 12V Ingle Battery
1x Battery Fuse
1x 1m Power Cable With Wall Plug
1x 1m Cable With Power Socket
1x Heavy Duty Steel Portable Box With Lock Wheels & Handles
(Please note this only applies to gel batteries and not lithium batteries)
- The standard batteries in this kit are rated to last 200-300 cycles (load shedding).
- During occasional load shedding, at stages 1-2, the average life span is 2 years.
- Unfortunately, during constant load shedding, at stages 2 - 6, these cycles will be depleted within a few months.
- The batteries will also be further degraded due to insufficient time to recharge fully in between load-shedding cycles.
- As soon as the batteries stop lasting, unfortunately, the warranty becomes void, as this means that the batteries have depleted their cycles and reached the end of their life
- 200-300 cycles (deep cycle batteries) in mind when running the system.
- Therefore, during constant stages 2-6, we highly recommend keeping the inverter's power switch OFF. Then, only switch it on when the need for backup power is crucial.
- This will preserve the longevity of the batteries (please keep it plugged into the wall permanently to keep it charged).
