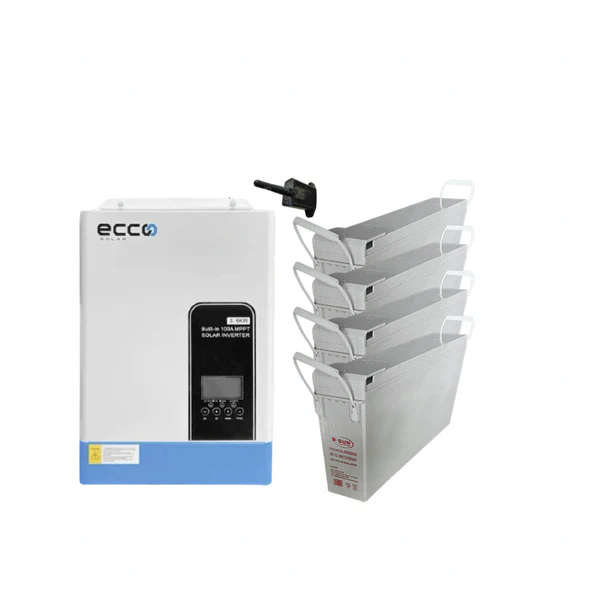

Ecco 5.5KVA / 5500W 48V MPPT 100A Hybrid Inverter + 4x 200Ah Deep Cycle Gel Batteries / Solar & Backup Power System

Description:

The Ecco 5.5KVA Hybrid Inverter, paired with four 200Ah deep cycle gel batteries, is a high-performance solar and backup power solution designed for homes and businesses. With MPPT (Maximum Power Point Tracking) technology, this inverter optimizes solar energy conversion, ensuring 30% higher charge efficiency compared to PWM controllers. The system allows flexible power management, supporting solar, battery, and grid input while offering lithium battery compatibility and Wi-Fi monitoring (optional add-on).

Key Features:

Inverter Features:

• Pure Sine Wave Output Ensures stable, clean power for sensitive electronics.
• Built-in MPPT 100A Charge Controller Maximizes solar energy utilization.
• Smart LCD Control Panel Customizable settings for working modes, charge current, and voltage configurations.
• Multi-Source Power Management:
  • Solar priority mode Maximize solar energy use.
  • Grid priority mode Maintain continuous power.
  • Hybrid mode (Solar + Grid + Battery) Optimize energy efficiency.
• High PV Voltage Support:
  • MPPT Voltage Range: 60V - 500V DC
  • Maximum PV Open Circuit Voltage: 500V DC
• Battery-Free Operation Can power loads directly from solar energy without requiring a battery.
• Automatic Transfer Switching:
  • 10ms transfer time for uninterrupted power to computers.
  • 20ms transfer time for household appliances.
• RS485 BMS Communication Seamless lithium battery integration.
• Detachable Dust Cover Protects components in harsh environments.
• Wi-Fi Remote Monitoring (Optional Wi-Fi Dongle) Enables real-time system tracking.

Technical Specifications:

Inverter Specifications:

• Rated Power Output: 5.5KVA / 5500W
• Input Voltage: 230V AC
• Frequency Range: 50Hz / 60Hz (Auto-Sensing)
• Output Voltage Regulation (Battery Mode): 230V AC ±5%
• Surge Power: 11,000W
• Peak Efficiency: 93%
• Waveform: Pure Sine Wave

Battery & AC Charger:

• Battery Voltage: 48V DC
• Floating Charge Voltage: 54.8V DC
• Overcharge Protection Voltage: 60V DC
• Maximum Charging Current: 80A

Solar Charge Controller:

• Maximum PV Array Open Circuit Voltage: 500V DC
• Maximum Solar Charging Current: 100A

Physical Dimensions:

• Inverter Size: 438 x 295 x 105mm
• Inverter Weight: 9kg
• Battery Dimensions (Each): 65mm (L) x 120mm (W) x 330mm (H)
• Battery Weight (Each): 34kg

Battery Specifications (4x 12V 200Ah Deep Cycle Gel Batteries):

• Battery Type: Sealed Lead Acid Gel Battery
• Nominal Voltage: 12V
• Capacity: 200Ah per battery (Total: 48V 200Ah)
• Maintenance-Free Design No refilling required
• Reliable Deep Cycle Performance Designed for extended use in solar and backup applications
• Battery Brand & Size: May vary based on stock availability
• Warranty: 90-Day Replacement Warranty

What's Included in the Package:

• 1x Ecco Hybrid Inverter 5.5KVA / 5500W 48V (MPPT 100A, Pure Sine Wave)
• 1x Wi-Fi Dongle (Optional for Remote Monitoring)
• 4x 12V 200Ah Deep Cycle Gel Batteries
• User Manual

Important Notes:

• It is recommended to use ECCO batteries and solar panels for optimal performance.
• Installation must be performed by a qualified wireman or master electrician.
• A valid Certificate of Compliance (COC) is required for warranty claims.
• Warranty claims without professional installation proof, installation photos, or a valid COC may be rejected.
• Damage due to improper use or burning out of the unit is not covered under warranty.

Ideal For:

• Load shedding and emergency backup power
• Small business and home solar systems
• Off-grid and hybrid solar energy storage
• Reliable energy backup for essential appliances

Installation & Warranty Information:

• Inverter Warranty: 5-Year Repair Warranty
• Battery Warranty: 90-Day Replacement Warranty
