Ecco 5.5KVA / 5500W Hybrid Inverter (Parallel Version) + 1x 51.2V 100Ah 5.12kWh Lithium Battery /...

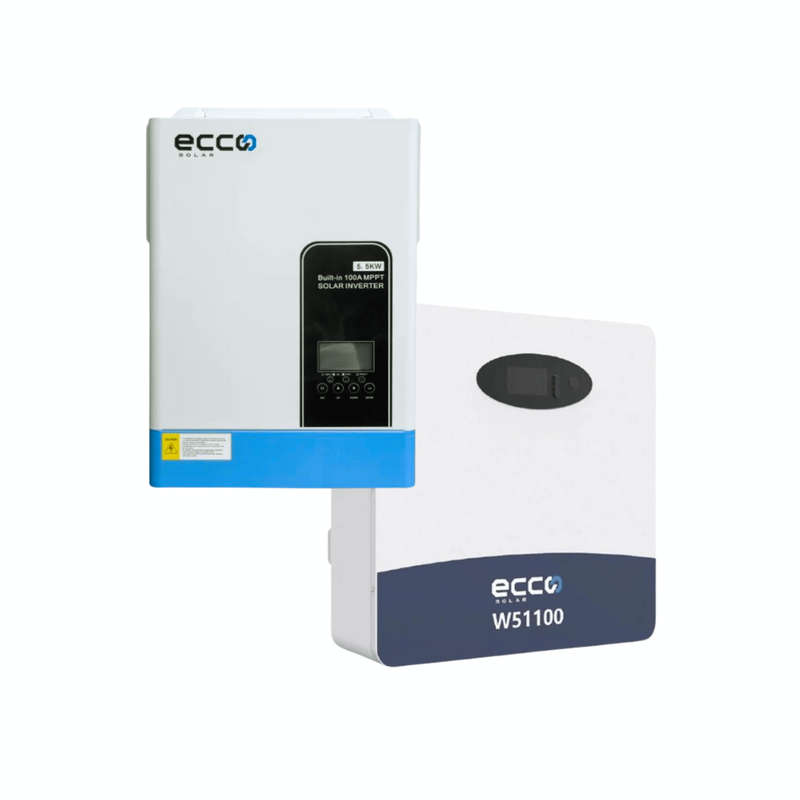

Ecco 5.5KVA / 5500W Hybrid Inverter (Parallel Version) + 1x 51.2V 100Ah 5.12kWh Lithium Battery / Solar & Backup Power Kit

Product Description:

The Ecco 5.5KVA Hybrid Inverter (Parallel Version), paired with a 51.2V 100Ah 5.12kWh Lithium Iron Phosphate (LiFePO4) Battery, is a high-efficiency solar and backup power solution designed for homes, businesses, and off-grid applications.

With a built-in MPPT 100A charge controller, this inverter maximizes solar energy conversion, providing up to 30% higher charge efficiency compared to PWM controllers. The parallel functionality allows multiple inverters to be linked for higher power output, making it ideal for scalable solar and backup power systems.

Key Features:

Hybrid Inverter Features:

• Pure Sine Wave Output Ensures clean and stable power for sensitive electronics.
• Power Factor 1.0 Maximizes efficiency for optimal energy conversion.
• Built-in MPPT 100A Charge Controller Enhances solar energy harvesting.
• High PV Voltage Support:
  • Batch 1 PV Input Voltage Range: 60V - 500V DC
  • Batch 2 PV Input Voltage Range: 120V - 500V DC
• Battery-Free Operation Can power loads directly from solar energy without requiring a battery.
• RS485 BMS Communication Integrates seamlessly with Battery Management Systems (BMS).
• Automatic Transfer Switching:
  • 10ms transfer time for uninterrupted power to computers.
  • 20ms transfer time for household appliances.
• Detachable Dust Cover Protects components in harsh environments.
• Multiple Output Priorities Supported:
  • UTL (Utility First)
  • SOL (Solar First)
  • SBU (Solar-Battery-Utility)
  • SUB (Solar-Utility-Battery)
• Wi-Fi Remote Monitoring (Optional Wi-Fi Dongle Sold Separately) Enables real-time tracking of system performance.
• Battery Optimization (EQ Function) Extends battery lifecycle and enhances performance.

Technical Specifications:

Inverter Specifications:

• Rated Power Output: 5.5KVA / 5500W
• Input Voltage: 230V AC
• Frequency Range: 50Hz / 60Hz (Auto-Sensing)
• Output Voltage Regulation (Battery Mode): 230V AC ±5%
• Surge Power: 11,000W
• Peak Efficiency: 93%
• Waveform: Pure Sine Wave

Battery & AC Charger:

• Battery Voltage: 48V DC
• Floating Charge Voltage: 54.8V DC
• Overcharge Protection Voltage: 60V DC
• Maximum Charging Current: 80A

Solar Charge Controller:

• Maximum PV Array Open Circuit Voltage: 500V DC
• Maximum Solar Charging Current: 100A

Physical Dimensions:

• Inverter Size: 438 x 295 x 105mm
• Inverter Weight: 9kg

Battery Specifications (Ecco 51.2V 100Ah 5.12kWh Lithium Battery): (W51100)

• Type: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 51.2V
• Capacity: 100Ah (5.12kWh)
• Cycle Life:
  • Up to 20 times longer lifespan than lead-acid batteries.
  • Retains 80% capacity after 3000+ cycles.
• Charge & Discharge Performance:
  • Maximum Charging Current: 100A
  • Maximum Discharging Current: 100A
• Operating Temperature Range:
  • Charge: -20°C to 60°C
  • Discharge: -20°C to 60°C
• Built-in Battery Management System (BMS):
  • Overcharge, over-discharge, and over-temperature protection
  • Enhanced safety features to prevent overheating and short circuits
• Wall-Mount Design: Compact and space-efficient
• Lightweight Construction: 40% lighter than lead-acid batteries
• Weight: 49kg
• Dimensions: 480 x 170 x 500mm
• Communication Protocols: RS485, RS232, CAN
• Ingress Protection: IP54 Dust and splash resistant
• Design Life: 15 years
• Warranty: 5-Year Manufacturer's Warranty

What's Included in the Package:

• 1x Ecco Hybrid Inverter 5.5KVA / 5500W 48V (MPPT 100A, Pure Sine Wave, Parallel Ready)
• 1x Ecco 51.2V 100Ah 5.12kWh Lithium Iron Phosphate Battery
• 1x Set of Battery Cables & Mounts
• 1x User Manual

Important Notes:

• It is recommended to use ECCO batteries for guaranteed performance.
• Installation must be performed by a qualified wireman or master electrician.
• A valid Certificate of Compliance (COC) is required for warranty claims.
• Warranty claims without professional installation proof, installation photos, or a valid COC may be rejected.
• Damage due to improper use or burning out of the unit is not covered under warranty.

Ideal For:

• Load shedding and emergency backup power
• Small business and home solar energy systems
• Off-grid and hybrid solar energy storage
• Reliable power backup for essential appliances

Installation & Warranty Information:

• Inverter Warranty: 5-Year Repair Warranty
• Battery Warranty: 5-Year Manufacturer's Warranty (Retains 80% capacity or 3000 cycles, whichever comes first)

Why Choose This Combo?

High-Efficiency Solar Power System Reduces grid dependency.
Parallel Expandability ...
