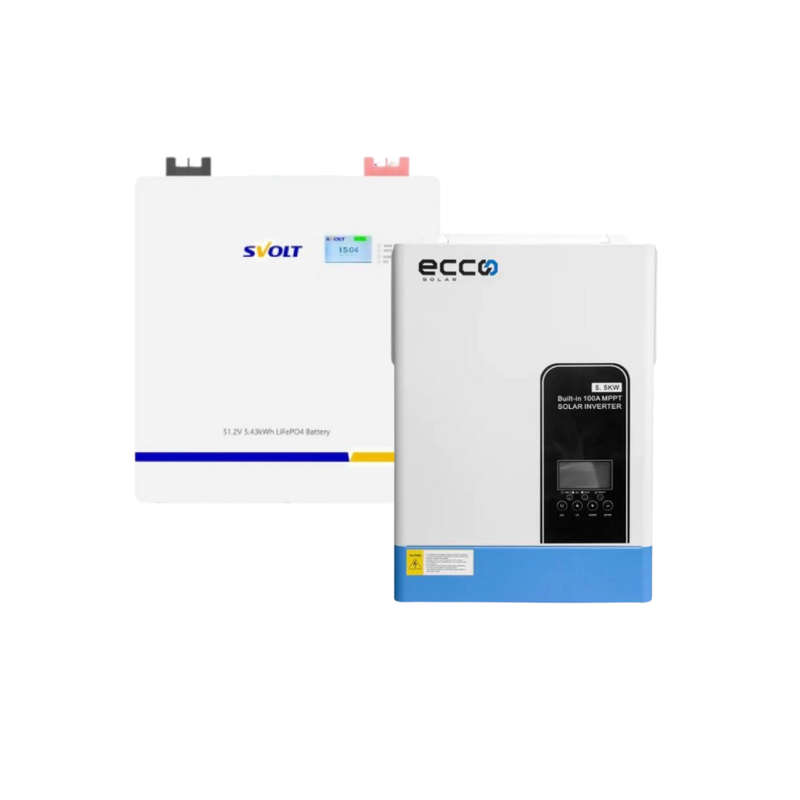

ECCO 5.5KVA / 5500W Hybrid Inverter Pure Sine Wave + SVOLT 5.43kWh A-Grade Lithium Battery
The main difference between PWM and MPPT charge control devices is that the MPPT devices are more efficient. MPPT charge control devices have 30 % more efficient in charge efficiency according to PWM type. Panel voltage and battery voltage should be matched in PWM systems.
Combo Includes
1x Ecco 5.5 KVA Pure Sine Wave Hybrid Inverter
1x Svolt 5.43 kWh A-Grade Wall Lithium Battery Combo
(5 YEAR WARRANTY)
Ecco 5.5KVA/5500W 100A MPPT Pure Sine Wave Solar Hybrid Inverter (Parallel Version)
Hybrid Inverter Features:
- Pure sine wave
- Power factor 1.0
- PV input Voltage 60Vdc-500Vdc
- Built-in MPPT 100A
- Capable to work without battery
- RS485 BMS Communication
- Lithium battery activation
- Detachable dust cover for harsh environment
- WiFi remote monitoring optional
- Support multiple output priority: UTL, SOL, SBU, SUB
- EQ function to optimize battery performance and extend lifecycle
Specifications:
Inverter Mode
- Rated Power: 5500VA / 5500W
- DC Input: 48VDC, 100A
- AC Output: 230VAC, 50/60Hz, 60A
AC Charger Mode
- AC Input: 230VAC, 50/60Hz, 60A
- DC Output: 54VDC
- Max. Charge Current(AC): 60A Default 30A
- Max. Charge Current(PV+AC): 100A
- AC Output: 230VAC, 50/60Hz, 23.9A
Solar Charge Mode
- Max. PV Array Power: 5500W
- Min. Solar Voltage: 120VDC
- MPPT VOLTAGE RANGE: 120VDC - 450VDC
- Max. Solar Voltage (VOC): 500VDC
- Max. MPPT Charge Current: 100A
- Max. Input Current: 18A
Dimensions ;
438 x 295 x 105
Weight : 9kg
ADD A WIFI DONGLE :
https://solarstepza.co.za/products/ecco-hybrid-inverter-wifi-dongle?_pos=1&_sid=fa2a917dc&_ss=r
Important Note: This product requires installation by a qualified PV installer, the PV installer must be able to issue a Certificate of Compliance. This is to ensure that the installation is safe and correct, as well as, within the scope of relevant regulations.
What's in the box
1 x ECCO 5.5KW Inverter
1 x Connecting Cables
1 x User Guide
SVOLT 48V 106Ah 5.43 kWh A-Grade Wall Mount Lithium Battery (Square)
The SVOLT 51.2V 106Ah A-Grade Lithium Battery is manufactured by a world-leading manufacturer SVOLT which is joined with the Haval Motor Group which we all know are extremely recognized for their vehicles, using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.
The SVOLT 51.2V 106Ah A-Grade Lithium Battery is widely used in industrial, residential, commercial, and private applications. The maintenance-free construction and advanced design features make the Lithium Battery the definitive choice for a wide variety of markets - Like solar and renewable energy storage for electric vehicles, industrial equipment, medical equipment, telecommunications, TVs, and UPS systems.
| Energy | 5.43kWh |
| Installation Type | Wall Mounted |
| Battery Type-Chemistry | LiFePO4 |
| Norminal Voltage | 51.2V |
| Norminal Capacity | 106Ah |
| Dimensions(LxWxH) | 510*475*160mm |
| Weight（Approx.） | 45.6KGS |
| Terminal Type | Fast Plug In & Plug Out |
| Case Material | SPCC |
| BMS Build-in | Yes |
| Internal Resistance | <25m |
| Efficiency Round Trip | >97% |
| Self Discharge Per Month | <3% |
| Max Parallel Connectors | 16Pcs |
| Series Connections | Not Allowed |
| Cycle Life(0.3C,25°C@90%DOD) | >6,000 cycles |
| Discharge Temperature | -20°C to 70°C |
| Charge Temperature | -5°C to 65°C |
| Storage Temperature | 0°C to 30°C |
| Bluetooth(App) | Optional |
| LCD Screen | Yes |
| Heating Function | Optional |
| Operating Voltage Range | 43.2V-57.6V |
| Recommend Charge Voltage | 56.0V±0.2V |
| Max Charge Voltage | 58.4V±0.2V |
| Recommend Charge Current | 50A |
| Max Continuous Charge Current | 100A |
| Recommend Discharge Voltage | 44.8V±0.2V |
| Max Discharging Voltage | 43.2V±0.2V |
| Max Continuous Discharge Current | 100A |
| Peak Discharge Current | 150A（100ms） |
Size:
550 x 520 x 220
50.71kg
What's In the Box:
- 1 x SVOLT 51.2V 106Ah A-Grade Lithium Battery
- 1 x Red (Positive) Battery Cable
- 1 x Black (Negative) Battery Cable
- 1 x Ethernet cable
- 1 x Manual
- 1x Wall Mount Bracket
- 1x Warranty Card
5 Years Warranty
