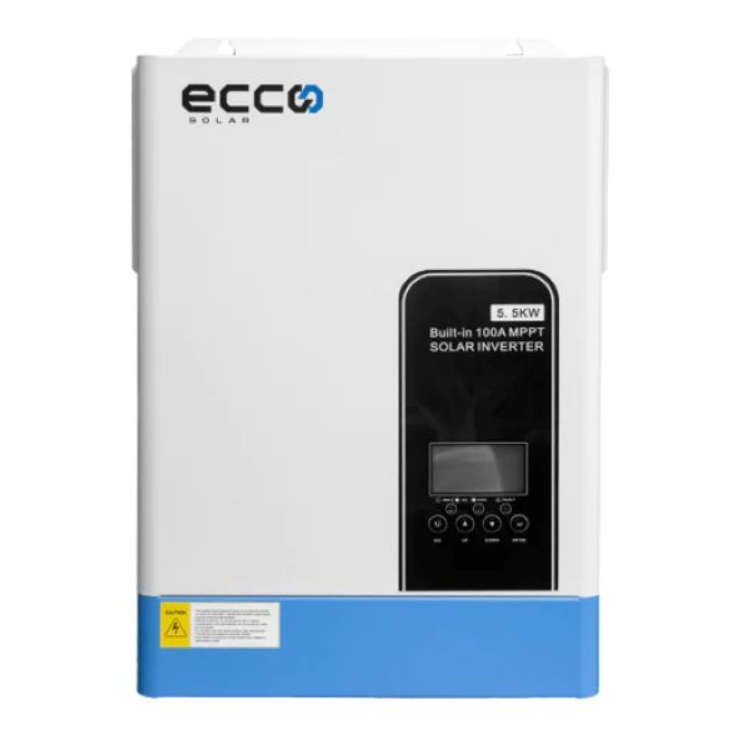

ECCO 5.5KW 48V 100A MPPT Hybrid Solar Inverter

Name: ECCO 5.5KW 48V 100A MPPT Hybrid Solar Inverter
SKU: ECCO 5.5KW 48V 100A MPPT hybrid
Price: 7299.00 ZAR
Availability: InStock

5 available / new

Indicative market price: R9,999.00

Only 5 left – grab it before it’s gone!

R7,299.00

27% off

Want to pay less?

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Last Light203

100.00 % Positive ratings

Buyer protection

How you're covered

Returns

Warranty Type: Replacement 6 Month Warranty

Replacement Guarantee: 10 Days: Replacement of Same product or Better

Get it now, pay later

Product details

Condition

New

Location

South Africa

Input Voltage

48V DC

Type

Pure Sine Wave

Product code

ECCO 5.5KW 48V 100A MPPT hybrid

Bob Shop ID

644786207

The main difference between PWM and MPPT charge control devices is that the MPPT devices are more efficient. MPPT charge control devices have 30 % more efficient in charge efficiency according to PWM type. Panel voltage and battery voltage should be matched in PWM systems.

Features
- Pure Sine Wave Solar Inverter
- Output Power Factor 1
- High PV Input Voltage Range (120VDC - 500VDC)
- Built-in 100A MPPT Solar Controller
- Supports Multiple Output Priority: UTL, SOL, SBU, SUB
- Parallel Operation with Up to 12 units (Parallel Version)
- Supports Parallel Operation in Single Phase/ 3 Phase (Parallel Version)
- Supports Wireless Parallel, Without Extra Sharing Current Cable
- RS485 Communication for BMS
- WIFI Monitoring (Optional)
- Battery Equalization Function to Optimize Battery Performance and Extended Lifecycle

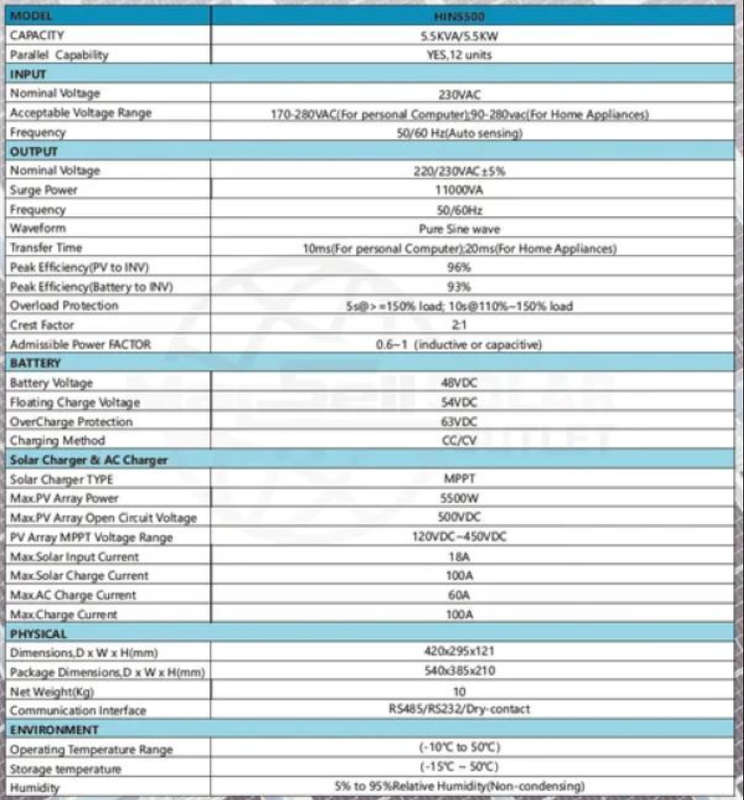

Specifications:

Inverter Mode
- Rated Power: 5500VA / 5500W
- DC Input: 48VDC, 127A
- AC Output: 230VAC, 50/60Hz, 23.9A

AC Charger Mode
- AC Input: 230VAC, 50/60Hz, 40A
- DC Output: 54VDC
- Max. Charge Current(AC): 60A Default 30A
- Max. Charge Current(PV+AC): 100A
- AC Output: 230VAC, 50/60Hz, 23.9A

Solar Charge Mode
- Max. PV Array Power: 5500W
- Min. Solar Voltage: 120VDC
- Max. Solar Voltage (VOC): 500VDC
- Max. MPPT Charge Current: 100A

Ingress Protection: IP21 (Indoor Use)

Dimensions ; 38 x 55 x 20 cm
Weight : 9.65kg
