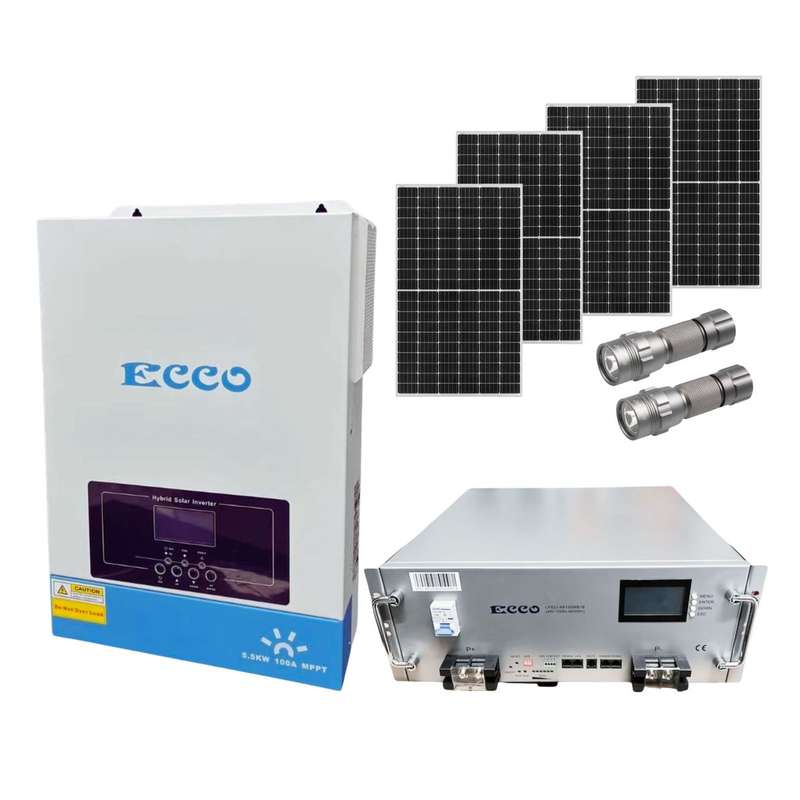

5.5KVA/5500W 100A Pure Sine Wave Solar Inverter
Features
- Pure Sine Wave Solar Inverter
- Output Power Factor 1
- High PV Input Voltage Range (120VDC - 500VDC)
- Built-in 100A MPPT Solar Controller
- Supports Multiple Output Priority: UTL, SOL, SBU, SUB
- Parallel Operation with Up to 12 units (Parallel Version)
- Supports Parallel Operation in Single Phase/ 3 Phase (Parallel Version)
- Supports Wireless Parallel, Without Extra Sharing Current Cable
- RS485 Communication for BMS
- Wifi Monitoring
- Battery Equalization Function to Optimise Battery Performance and Extended Lifecycle
Specifications:-
Inverter Mode
- Rated Power: 5500VA / 5500W
- DC Input: 48VDC, 127A
- AC Output: 230VAC, 50/60Hz, 23.9A
AC Charger Mode
- AC Input: 230VAC, 50/60Hz, 40A
- DC Output: 54VDC
- Max. Charge Current(AC): 60A Default 30A
- Max. Charge Current(PV+AC): 100A
- AC Output: 230VAC, 50/60Hz, 23.9A
Solar Charge Mode
- Max. PV Array Power: 5500W
- Min. Solar Voltage: 120VDC
- Max. Solar Voltage (VOC): 500VDC
- Max. MPPT Charge Current: 100A
Ingress Protection: IP21 (Indoor Use)
Dimensions ; 38 x 55 x 20 cm
Weight : 9.65kg
Battery Specs
LFEI-48100MB16 48V 100AH
Rated Capacity 100ah
With Display Screen
Intra system Balancing
Flame retardent
Automatic Over Charge Protection
20 year Design Life
IP31 Class
19" std cabinet or can be wall mounted
It is recommended to use ECCO Batteries and Solar Panels for Quality Garanteed Results.
Important Note: This product requires installation by a qualified PV installer, the PV installer must be able to issue a Certificate of Compliance. This is to ensure that the installation is safe and correct, as well as, within the scope of relevant regulations.
Solar Panel Specs
410W Maximum Power
Mono Solar Cell
Anodized Aluminum Alloy
46.53V Operating Voltage
21.1 Module Efficiency
13.89 Amp Operating Current
49.95 Operating circuit voltage
-40C - +85C Operating Temperature
