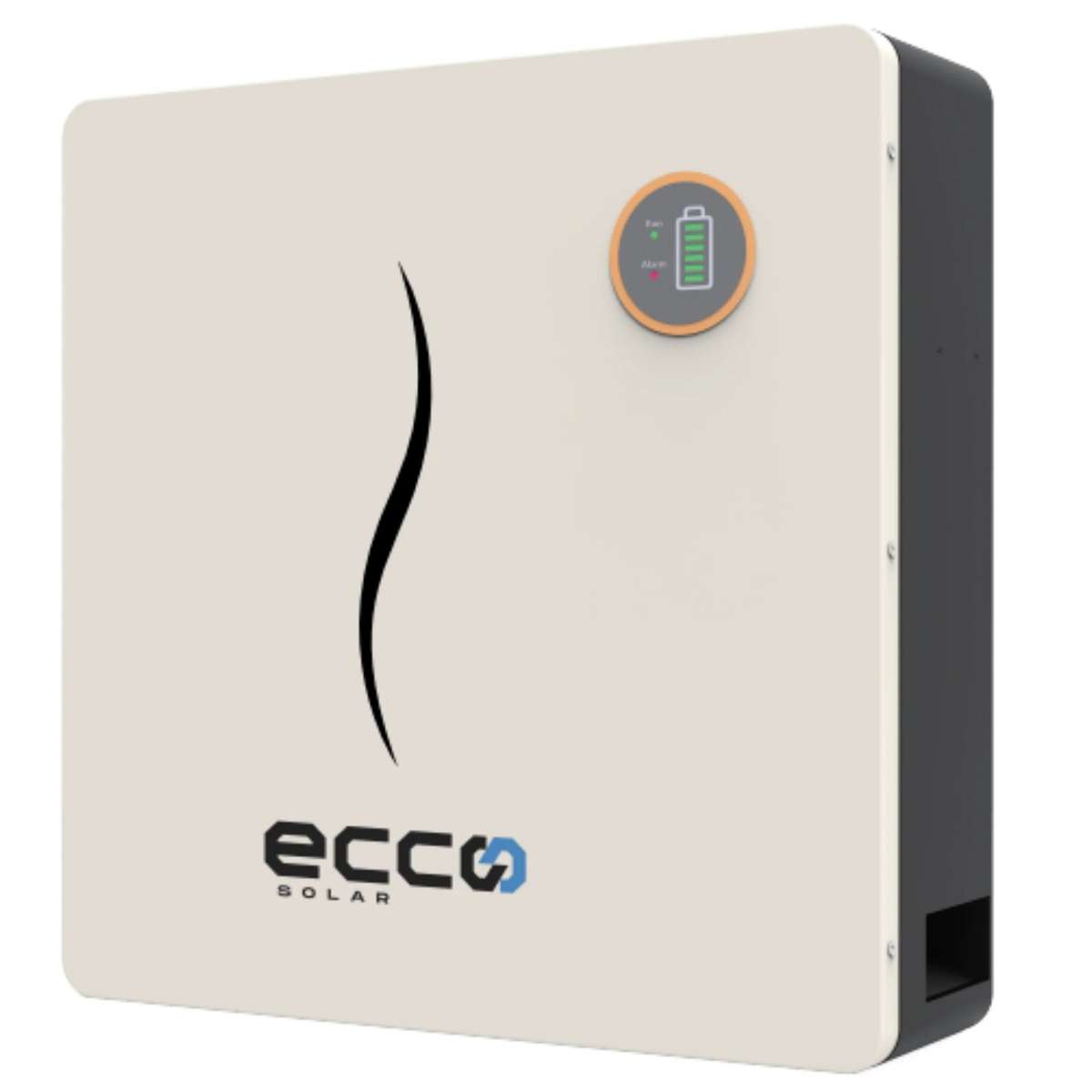

Ecco 51.2v 100ah 5.12kWh Lithium Battery ELV51100 Wall-Mounted
ELV51100 is a lithium battery with an operating voltage range between 45.6~ 56.16V. It is designed for residential energy storage applications and works together with a 48v battery hybrid inverter.
ELV51100 has built-in BMS (Battery Management System), which can manage and monitor cells information including voltage, current and temperature. Besides that, BMS can balance cells charging to extend cycle life. BMS has protection functions including over-discharge, over-charge, over-current and high/low temperature; the system can automatically manage charge state, discharge state and balance state.
Multiple ELV51100 can be connected in parallel to expand capacity and power, 15 ELV51100 can be connected in parallel at most.
Specifications:
Nominal Voltage (V) 51.2
Nominal Capacity (Ah) 100
Total Power (kWh) 5.12
Charge Voltage (V) 56.16 V
Discharge Voltage (V) 44.8 V
Dimensions (mm) 500 X 494 X 145
Weight (kg) 45
Warranties:
5 Years Warranty
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
