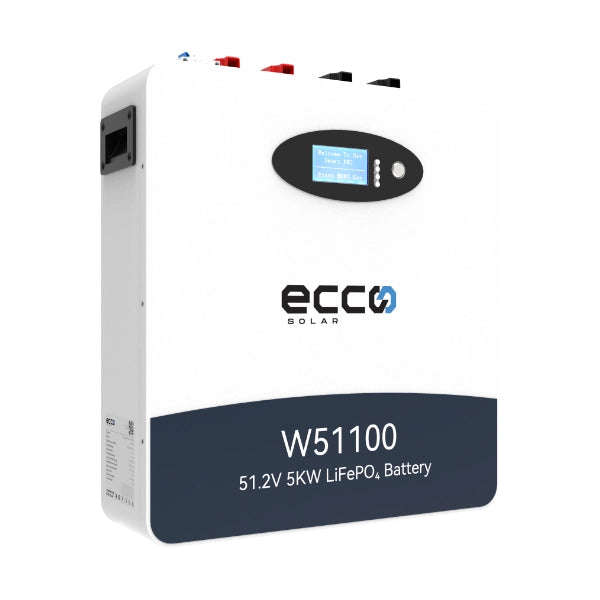

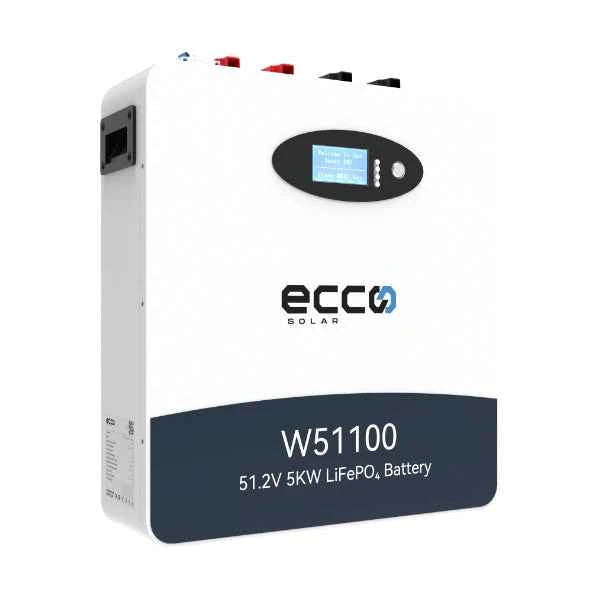

ECCO 51.2v 100ah 5.12kWh Lithium Battery W51100 Wall-Mounted
- + Wall-mounted design, easy to install, and aesthetic
+ Adopts lithium iron phosphate battery cell, safe to use, long life cycle
+ Maximum 1C charge/discharge
+ User-friendly human-machine inter-face
+ Compatible with multiple brands of inverters at the same time
+ Supports a maximum of 16 parallel groups
+ Meet North American UL, EU TUV standards
Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than a lead acid battery, helping to minimize replacement cost and reduce the total cost of ownership. Lighter Weight: About 40% of the weight of a comparable lead acid battery. A 'drop in' replacement for lead acid batteries. Higher Power: Delivers twice the power of the lead acid battery, even high discharge rate, while maintaining high energy capacity. Wider Temperature Range: -20 C~60 C. Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging, or short circuit situations.
What's in the box:
Battery
Battery Cables & Mounts Included
Battery Parameters:
Battery Type is set to "USE."
Bulk Charge Voltage is set to 56.4-56.6V.
Float Charge Voltage is set to 54V.
Cut Off Voltage is set to 47V.

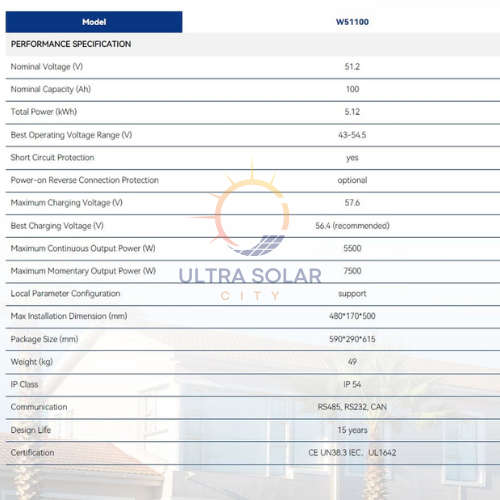

Specifications:
Nominal Voltage (V) 51.2
Nominal Capacity (Ah) 100
Total Power (kWh) 5.12
Best Operating Voltage Range (V) 43-54.5
Short Circuit Protection yes
Power-on Reverse Connection Protection optional
Maximum Charging Voltage (V) 57.6
Best Charging Voltage (V) 56.4 (recommended)
Maximum Continuous Output Power (W) 5500
Maximum Momentary Output Power (W) 7500
Local Parameter Configuration support
Max Installation Dimension (mm) 480*170*500
Package Size (mm) 590*290*615
Weight (kg) 49
IP Class IP 54
Communication RS485, RS232, CAN
Design Life 15 years
Warranties:
5 Years Warranty
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
