The perfect solution for load shedding!

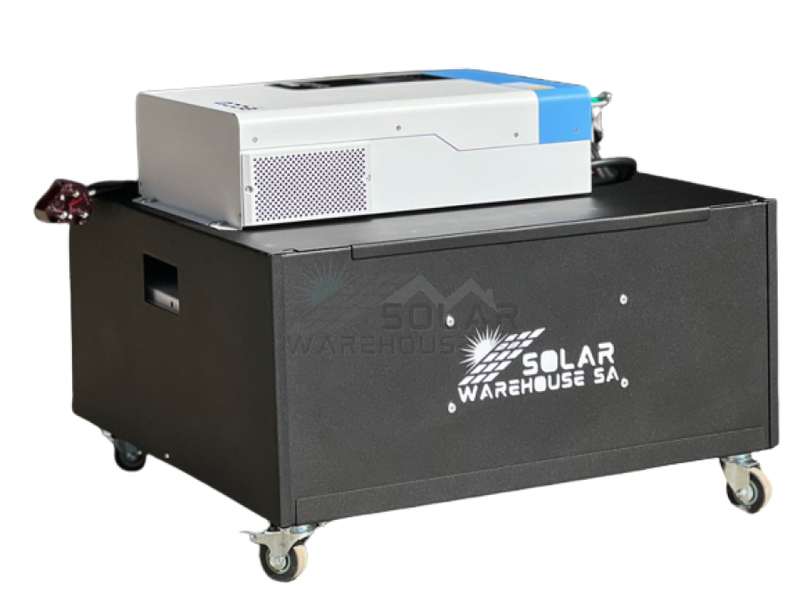

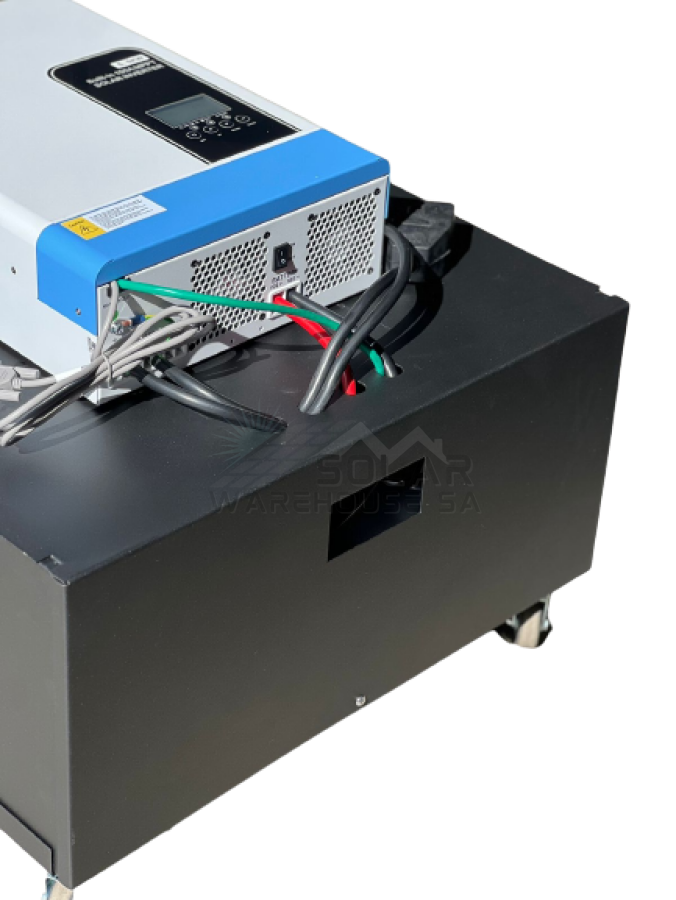

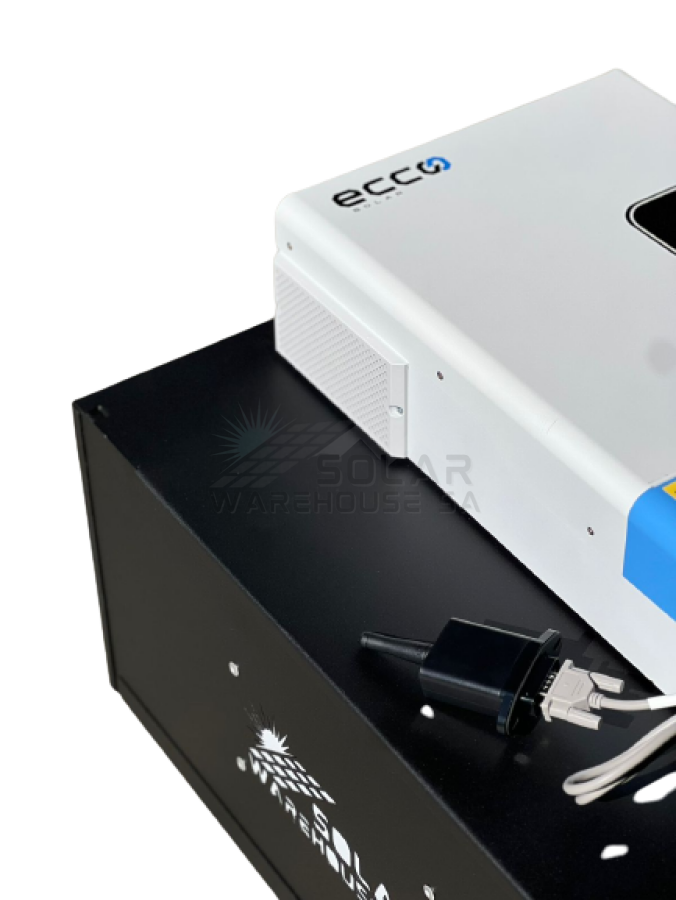

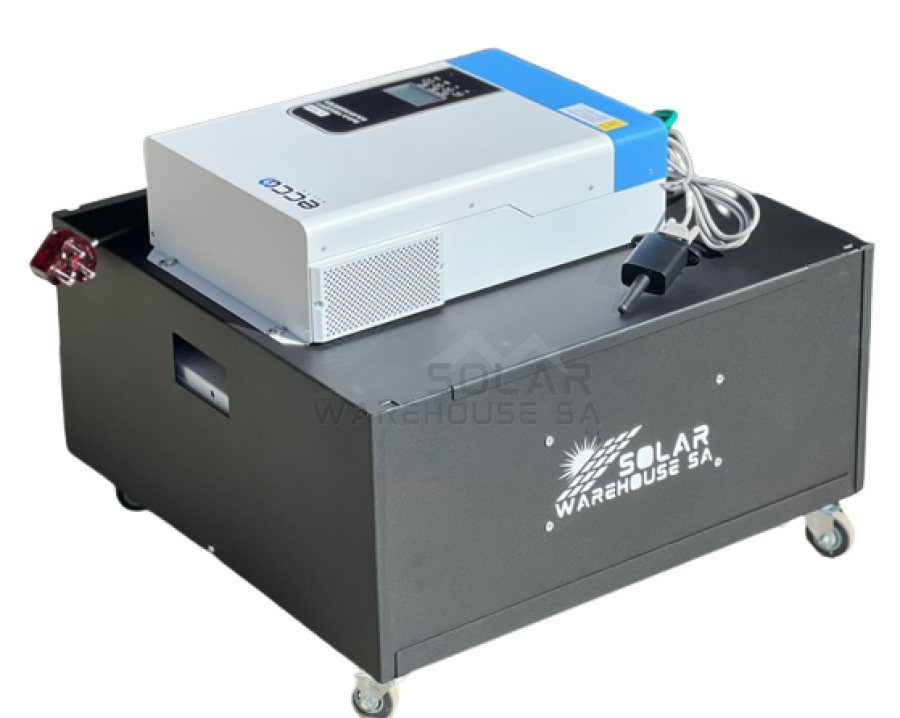

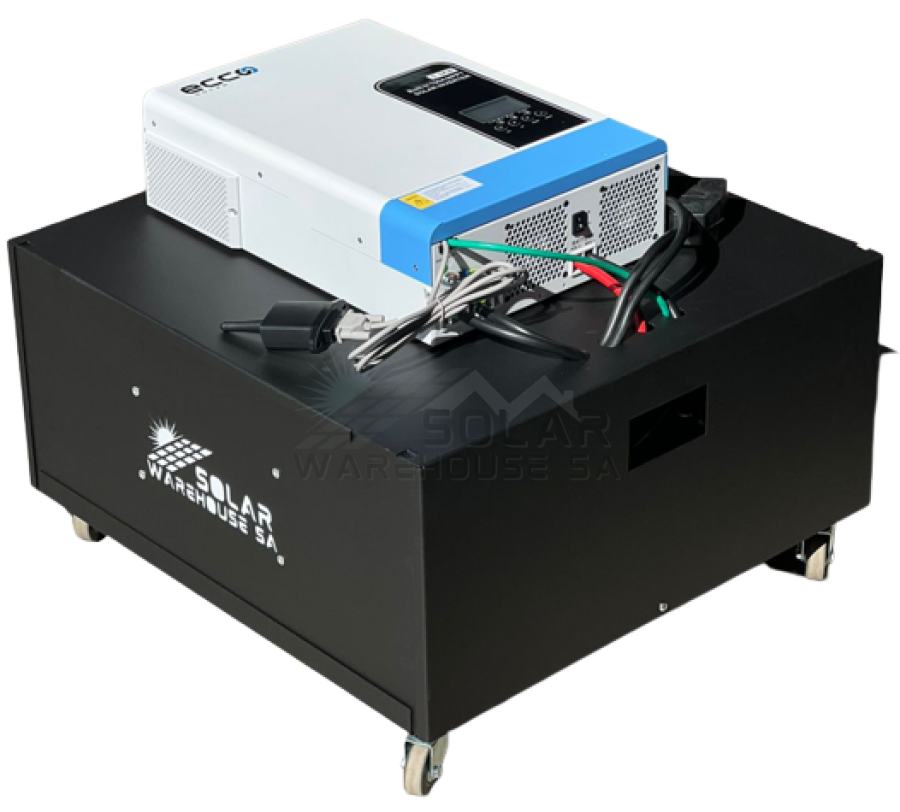

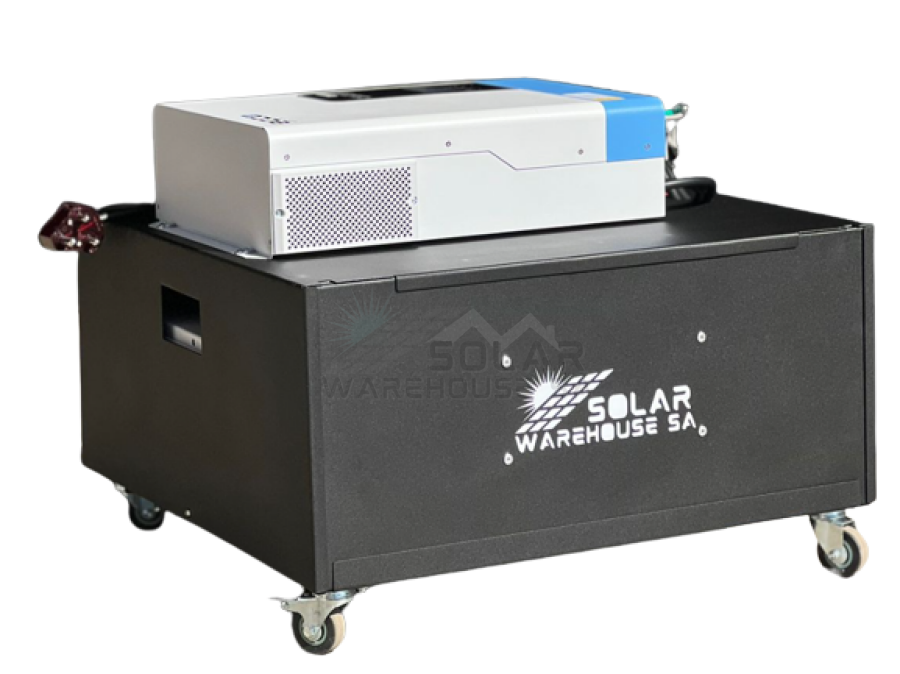

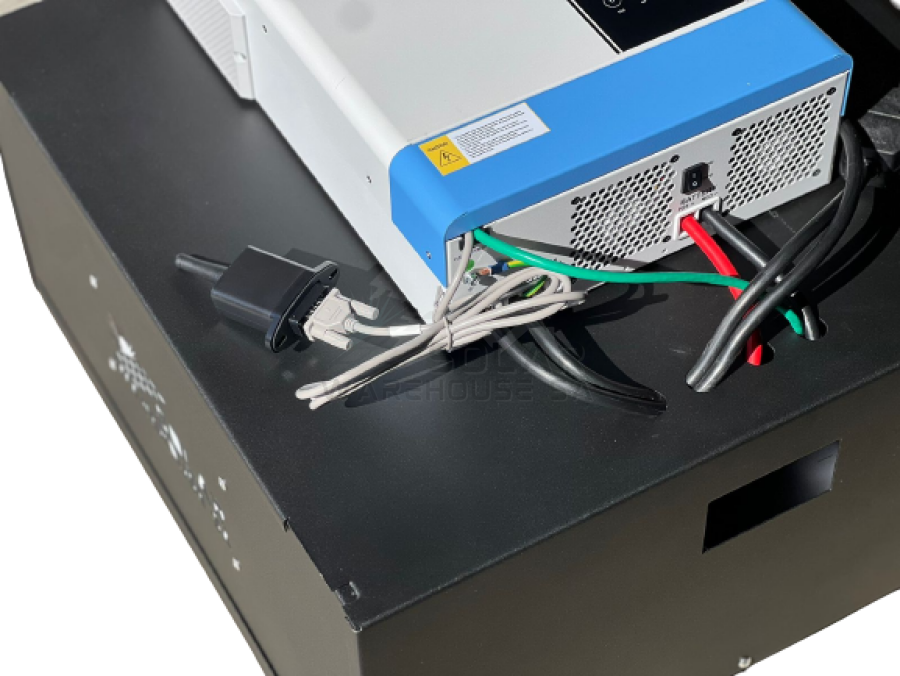

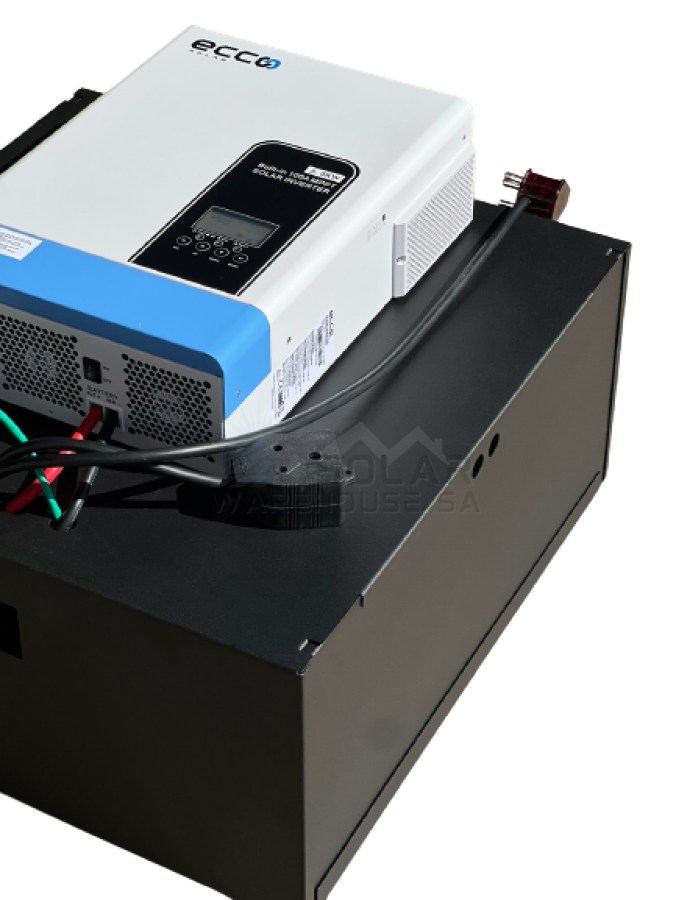

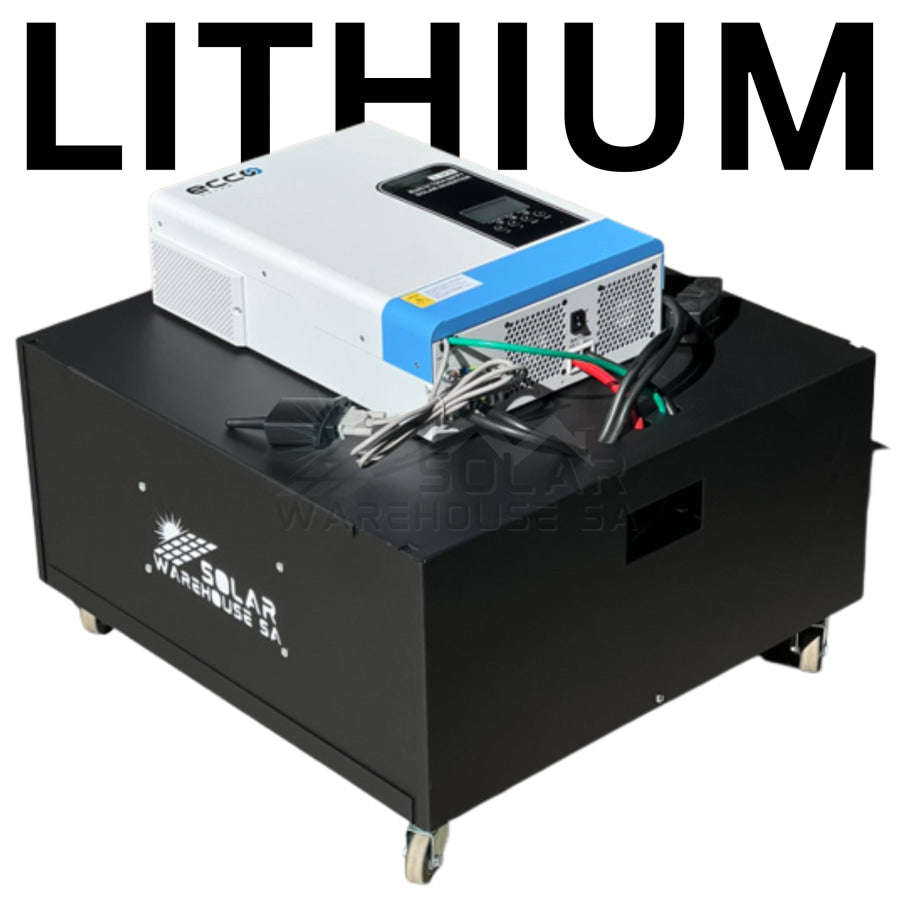

The all-in-one portable plug & play inverter battery trolley system (Heavy Duty Inverter Trolley) Easy portable compact unit with lock wheels as well as handles to carry the system.
PLEASE NOTE TROLLEYS TAKE 2-3 HOURS TO ASSEMBLE
What is an all-in-one portable plug & play Solar Ready inverter system and what does it do?
It is an inverter unit connected to a battery that provides power when there is load shedding. It will charge your battery once the power is on. As soon as load shedding hits, your inverter system instantly transfers over to battery power. This will allow you to keep your lights, TV, computers, chargers, and wifi running during load shedding. Solar ready : Add a solar panel and charge your batteries when there is no power.
How much battery backup power will I have when the power is off?
If you connect 150w which is usually a TV, Wifi, Lights, etc. This portable system will last 45-50 Hours With a 100% DOD.
Inverter Specifications:
Features
Pure sine wave
Power factor 1.0
PV input Voltage 60Vdc-500Vdc
Built-in MPPT 100A
Capable to work without battery
RS485 BMS Communication
Lithium battery activation
Detachable dust cover for harsh environment
Support multiple output priority: UTL, SOL, SBU, SUB
EQ function to optimize battery performance and extend lifecycle
How to maximize battery life:
Keep your inverter system plugged in and switched on, this will keep your batteries at full charge.
Battery Specifications:
SVOLT 51.2V 106Ah 5.43 kWh A-Grade Wall Mount Lithium Battery
The SVOLT 51.2V 106Ah A-Grade Lithium Battery is manufactured by a world-leading manufacturer SVOLT which is joined with the Haval Motor Group which we all know are extremely recognized for their vehicles, using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.
The SVOLT 51.2V 106Ah A-Grade Lithium Battery is widely used in industrial, residential, commercial, and private applications. The maintenance-free construction and advanced design features make the Lithium Battery the definitive choice for a wide variety of markets - Like solar and renewable energy storage for electric vehicles, industrial equipment, medical equipment, telecommunications, TVs, and UPS systems.
| Energy | 5.43kWh |
| Installation Type | Wall Mounted |
| Battery Type-Chemistry | LiFePO4 |
| Norminal Voltage | 51.2V |
| Norminal Capacity | 106Ah |
| Dimensions(LxWxH) | 510*475*160mm |
| Weight（Approx.） | 45.6KGS |
| Terminal Type | Fast Plug In & Plug Out |
| Case Material | SPCC |
| BMS Build-in | Yes |
| Internal Resistance | <25m |
| Efficiency Round Trip | >97% |
| Self Discharge Per Month | <3% |
| Max Parallel Connectors | 16Pcs |
| Series Connections | Not Allowed |
| Cycle Life(0.3C,25°C@90%DOD) | >6,000 cycles |
| Discharge Temperature | -20°C to 70°C |
| Charge Temperature | -5°C to 65°C |
| Storage Temperature | 0°C to 30°C |
| Bluetooth(App) | Optional |
| LCD Screen | Yes |
| Heating Function | Optional |
| Operating Voltage Range | 43.2V-57.6V |
| Recommend Charge Voltage | 56.0V±0.2V |
| Max Charge Voltage | 58.4V±0.2V |
| Recommend Charge Current | 50A |
| Max Continuous Charge Current | 100A |
| Recommend Discharge Voltage | 44.8V±0.2V |
| Max Discharging Voltage | 43.2V±0.2V |
| Max Continuous Discharge Current | 100A |
| Peak Discharge Current | 150A（100ms） |
Size Of The Trolley:
50cm (H) x 61 (L) x 61 (W)
65kg
Add a wifi dongle:
https://solarwarehousesa.com/products/ecco-hybrid-inverter-wifi-dongle?_pos=1&_sid=71ec01ede&_ss=r
This all-in-one system Includes:
1x Hybrid Inverter 48v 5.5 Kva 5500w Mppt 100a Inverter Pure Sine Wave - Ecco
(5 Years Warranty)
1xSVOLT 51.2V 106Ah 5.43 kWh A-Grade Wall Mount Lithium Battery (5 Years Warranty)
1x Battery Fuse
1x 1m Power Cable With Wall Plug
1x 1m Cable With Power Socket
1x Heavy Duty Steel Portable Box With Lock Wheels & Handles
