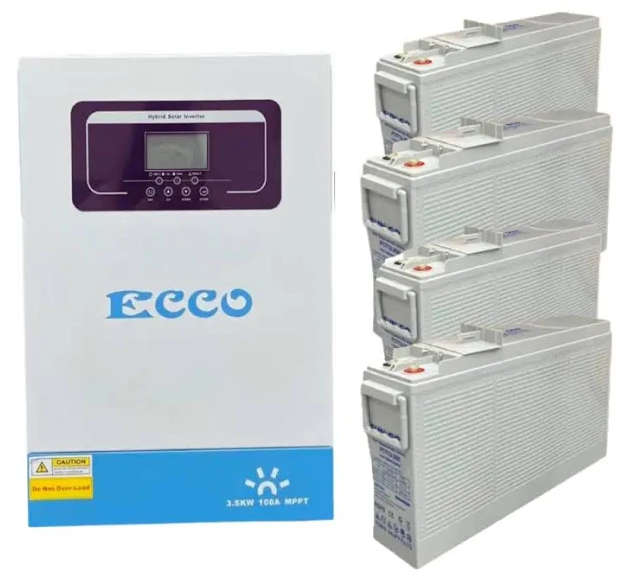

ECCO Inverter and Battery Combo 5.5 KVA & 4 X 200 Ah Gel Battery The main difference between PWM and MPPT charge control devices is that the MPPT devices are more efficient. MPPT charge control devices have 30 % more efficient in charge efficiency according to PWM type. Panel voltage and battery voltage should be matched in PWM systems.
ECCO Inverter Features: Pure Sine Wave Solar Inverter Output Power Factor 1 High PV Input Voltage Range (120VDC - 500VDC) Built-in 100A MPPT Solar Controller Supports Multiple Output Priority: UTL, SOL, SBU, SUB Parallel Operation with Up to 12 units (Parallel Version) Supports Parallel Operation in Single Phase/ 3 Phase (Parallel Version) Supports Wireless Parallel, Without Extra Sharing Current Cable RS485 Communication for BMS Wifi Monitoring Battery Equalization Function to Optimise Battery Performance and Extended Lifecycle
Inverter Mode - Rated Power: 5500VA / 5500W - DC Input: 48VDC, 127A - AC Output: 230VAC, 50/60Hz, 23.9A
AC Charger Mode - AC Input: 230VAC, 50/60Hz, 40A - DC Output: 54VDC - Max. Charge Current(AC): 60A Default 30A - Max. Charge Current(PV+AC): 100A - AC Output: 230VAC, 50/60Hz, 23.9A
Solar Charge Mode - Max. PV Array Power: 5500W - Min. Solar Voltage: 120VDC - Max. Solar Voltage (VOC): 500VDC - Max. MPPT Charge Current: 100A
Ingress Protection: IP21 (Indoor Use)
Dimensions ; 38 x 55 x 20 cm Weight : 9.65kg
What's in the box 1 x ECCO 5.5KW Inverter 1 x Wifi Monitoring Module 3 x Connecting Cables 1 x User Guide
Battery Size:
57 x 13 x 36
30kg
Combo includes:
4x 12V 200AH Deep Cycle Gel Battery Slim Line (Batteries brand & Size may change due to high demand) 1x Hybrid Inverter 48V 5.5 KVA 5500W MPPT 100A Inverter Pure Sine Wave - Ecco(5 Year Repair Warranty)
