Ecco Pure Sine Wave Gell Battery Loadshedding Budget Combo 1000 Watt Hybrid Inverter 200 AH Gell ...

Pure Sine Wave Gell Battery Loadshedding Budget Combo 1000 Watt Hybrid Inverter 200 AH Gell Battery

Overcome load shedding with this premium load-shedding Combo

This unit is perfect for Tv, DSTV, WIFI & Charging Phone

Simple to use Instructions:

-Built-in charger to charge your battery when there is Power

-Plug your devices in. That's it you've got the power!

How much battery backup power will I have when the power is off?

If you connect 100w which is usually a TV, Wifi, Lights, etc. This portable system will last 8-10 Hours.

Please note :

If it is a Gel/AGM VRLA deep cycle battery it is recommended that you do not discharge the battery to less than 50% of its capacity to ensure long capacity life.

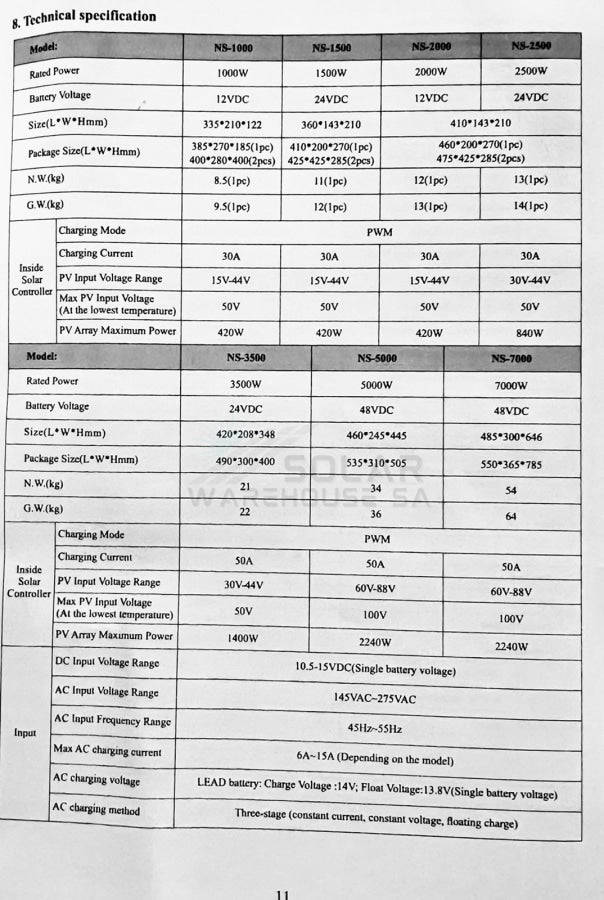

Pure Sine Wave Inverter Specifications:

Technical specification
Model: NS-1000
Rated Power 1000W
Battery Voltage 12VDC
Size(L*W*Hmm) 335*210*122
Package Size(L*W*Hmm) 385 270*185
N.W.(kg) 8.5kg
Charging Mode PWM
Charging Current 30A
PV Input Voltage Range 15V-44V
Max PV Input Voltage (At the lowest temperature) 50V
PV Array Maximum Power 420W

Battery Type Gel ,Lead Acid & Lithium

Protection
Battery low voltage alarm 11V(Single battery voltage)
Battery low voltage protection 10.5V(Single battery voltage)
Battery overvoltage alarm 15V(Single battery voltage)
Battery overvoltage protection 17V(Single battery voltage)
Battery overvoltage recovery voltage 14.5V(Single battery voltage)
Overload power protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Inverter output short circuit protection Temperature protection Automatic protection (battery mode), circuit breaker or insurance (AC mode) >90C(Shut down output)

Please note the battery bars on the inverter display will even drop one bar if the battery level drops by 1% , To calculate your battery voltage precisely please use a multimeter.

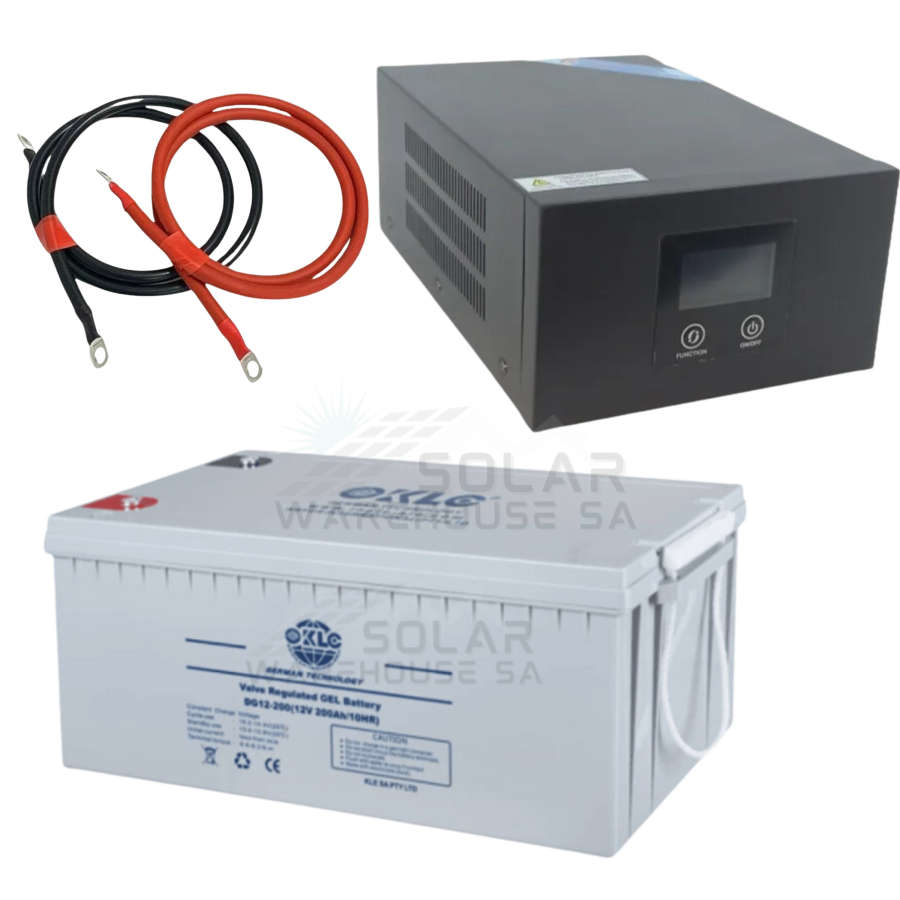

Combo includes:

• 1x IN1000 ECCO 12V/30A Pure Sine Wave Solar Inverter
  2x Battery Cables
  1x Kettle Plug
• 1X 200 Ah 12v  KLE-DG12-200 AGM Deep Cycle Valve Regulated Gel Battery German Tech
• 1 Year Warranty On Inverter & 200-300 cycles On Batteries

(Please note this only applies to gel batteries and not lithium batteries)

- The standard batteries in this kit are rated to last 200-300 cycles (load shedding).
- During occasional load shedding, at stages 1-2, the average life span is 2 years.
- Unfortunately, during constant load shedding, at stages 2 - 6, these cycles will be depleted within a few months.
- The batteries will also be further degraded due to insufficient time to recharge fully in between load-shedding cycles.
- As soon as the batteries stop lasting, unfortunately, the warranty becomes void, as this means that the batteries have depleted their cycles and reached the end of their life
- 200-300 cycles (deep cycle batteries) in mind when running the system.
- Therefore, during constant stages 2-6, we highly recommend keeping the inverter's power switch OFF. Then, only switch it on when the need for backup power is crucial.
- This will preserve the longevity of the batteries (please keep it plugged into the wall permanently to keep it charged).
