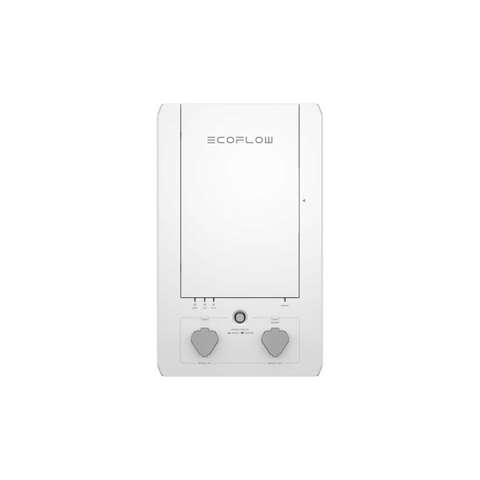

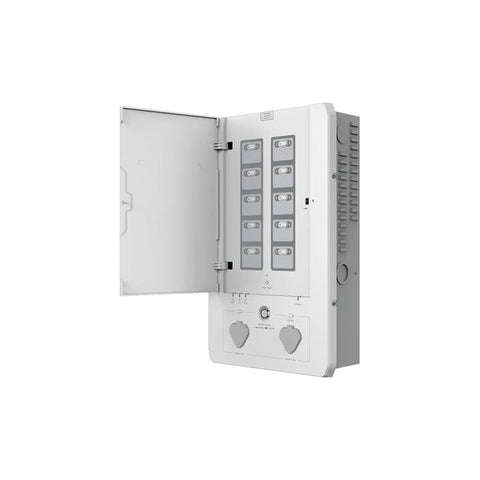

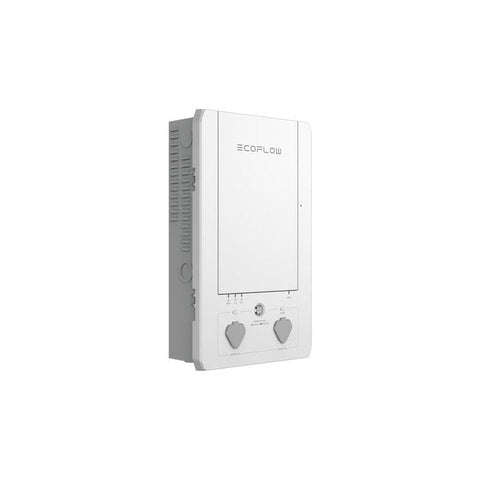

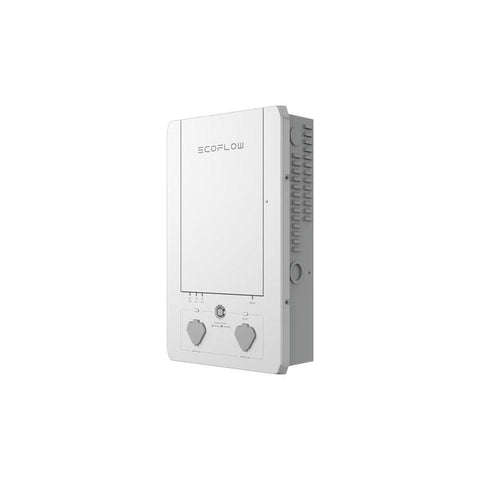

EcoFlow Smart Home Panel for Delta Pro with Relay Module

Description:

EcoFlow Smart Home Panel for Delta Pro with Relay Module

The EcoFlow Smart Home Panel integrates EcoFlow DELTA Pro with your home to achieve a flexible, expandable home battery solution to store energy for later use. Link up to 10 of your home circuits for uninterrupted power during blackouts, smart energy management, and more. All while saving money in the process.

Prepare your home for power outages

When a blackout hits, the Smart Home Panel immediately switches to your 10 integrated circuits and draws power from your DELTA Pro(s). You'll barely notice a loss of power as your chosen circuits stay powered with a mere 20ms switchover time.

Expand capacity and output

The Smart Home Panel supports and fast charges up to two DELTA Pro(s) at a time, alongside their extra batteries + smart generator(s). That gives you a potential 7200W output and 25kWh of capacity at your control, enough to power pretty much anything in your home, delivering days of power during blackouts.

Control, monitor, and manage your energy use

Control each of your integrated home circuits via the EcoFlow app and get a birds-eye view of your energy consumption habits. Dive into the settings to customize your power use. You can optimize for home backup, saving money, or custom options to schedule your energy use based on your needs. Once you're set, you can even control which power source your house uses, all from your phone.

Features

A smart home battery system
Backup power for essential home appliances
EcoFlow app control
Peak rate avoidance
Sustainable & self-sufficient
8x 13A & 5x 16A Relay module (included)
Technical Specification

Output Voltage: 240V
System Frequency: 50Hz
# of Controlled Circuits: 10
Rate Current: 13A, 16A
Max Backup Power: 3600W / 7200W
Max Connected Battery Energy: 21.6kWh
Charging Input (DELTA Pro): 3400W Max
IP Code: IP20
Installation: Wall mount, to be installed by a licensed electrician
Warranty: 3 Years
Dimensions: 460 x 330 x 120 mm
Weight: 9 kg
