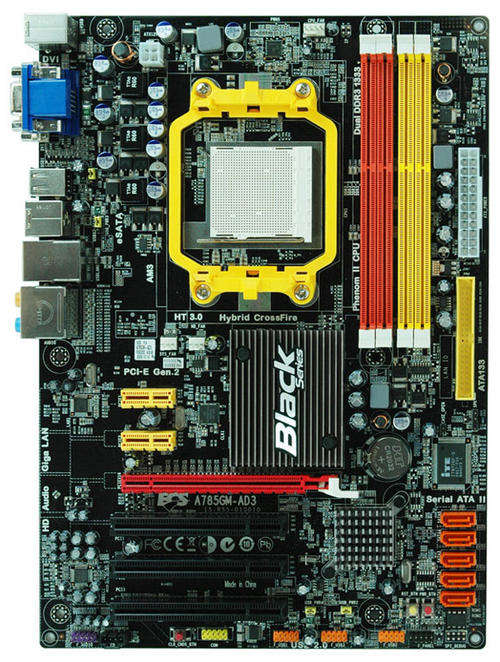

ECS Black Series A785GM-AD3 for AMD Phenom II AM3

ECS ATX Black series A785GM-AD3 for AMD Phenom II AM3

Socket new AM3 for AMD Phenom™ II Processor. And it supports Dual-Channel DDR3 memory architecture
The latest ECS Black Series A785GM-AD3 motherboard is based on the best combination of the new AMD 785G and SB710 chipset plus support for the latest Phenom™ II processor (Socket AM3) and support processors up to HT 5200 MT/s with Hyper Transport™ 3.0 technology links and it integrated DDR3 1600 * memory controller on the latest AM3 platform. It features convenient Multimedia DVI+VGA display output interfaces and combined with ECS M.I.B.II and eJIFFY special function. A785GM-AD3 is the best choice for gaming and media experience. *(Whether 1600 MHz memory speed is supported depends on the CPU being used.)
CPU   Socket AM3 socket for AMD Phenom™ II processors
  High-performance HyperTransport 3.0 CPU Interface
  Support transfer rate up to 5200 mega-transfers per second
  Note: This board supports CPU up to 95W TDP only; you can refer to AMD website to check your CPU.

  CHIPSET   AMD® 785G & AMD® SB710
  North Bridge: AMD® 785G
  South Bridge: AMD® SB710

  GRAPHICS   Integrated DirectX10.1 graphics processor
  Share Memory: Maximum up to 512MB

  MEMORY   Dual-channel DDR3 memory architecture
  4 x 240-pin DDR3 DIMM socket support up to 32GB per one DIMM support 8GB
  Support DDR3 OC1600/1333/1066/800 DDR3 SDRAM
  *(Due to the DRAM maximum size is 2GB at present, the memory maximum size we have tested is 4GB)
  *(Due to AMD CPU spec limitation, please refer to Memory QVL for more information)

  EXPANSION SLOT   1 x PCI Express x16 slot
  2 x PCI Express x1 slots
  3 x PCI slots

  STORAGE   Support by AMD® SB710
   2 x Ultra DMA133/100/66 devices
   5 x Serial ATA 3.0Gb/s devices
   1 x eSATA
   RAID0, RAID1, RAID10 configuration

  AUDIO   Realtek ALC 888S supports 8-channel HD audio
  Realtek ALC662 6-channel HD Audio codec(optional)
  Compliant with HD audio specification

  LAN   RealTek 8111DL Gigabit Fast Ethernet

  REAR PANEL I/O   1 x PS/2 keyboard & PS/2 mouse connectors
  1 x D-sub(VGA)
  1 x DVI connector
  1 x RJ45 LAN connector
  1 x Audio port (1x Line in, 4x Line out, 1x Optical SPDIF Out)
  1 x External SATA port
  6 x USB ports

  INTERNAL I/O CONNECTORS & HEADERS   1 x 24-pin ATX Power Supply connector
  1 x 4pin CPU_FAN connectors
  1 x 3-pin NB_FAN connector
  1 x 3-pin SYS_FAN connector
  1 x Power on button
  1 x Reset button
  1 x IDE connector
  1 x Speaker header
  1 x Front panel switch/LED header
  1 x Front panel audio header
  1 x Clear CMOS button
  1x CD in header
  5 x Serial ATA connectors
  3 x USB 2.0 headers support additional 6 USB ports
  1 x 4-pin 12V Connector
  1 x Chassis intrusion header
  1X Power on LED (Green light)
  1X Stand by LED (Red Light)

  SYSTEM BIOS   AMI BIOS with 8Mb SPI Flash ROM
  Supports Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
  Supports ACPI & DMI
  Supports CPU FSB adjustment, increase of 1MHz
  Supports PCI interrupt selection
  Audio, LAN, can be disabled in BIOS
  F11 hot key for boot up devices option
  Support over-clocking
  Support Page Up clear CMOS Hotkey
  Support ECS M.I.B II Utility
  CPU voltage adjustable
  Memory voltage adjustable
   NB Chipset Voltage Adjustable
   SB Chipset Voltage Adjustable
   External Clock Adjustable
   Multiple Frequency Adjustable

  FORM FACTOR   ATX Size, 305mm*220mm
