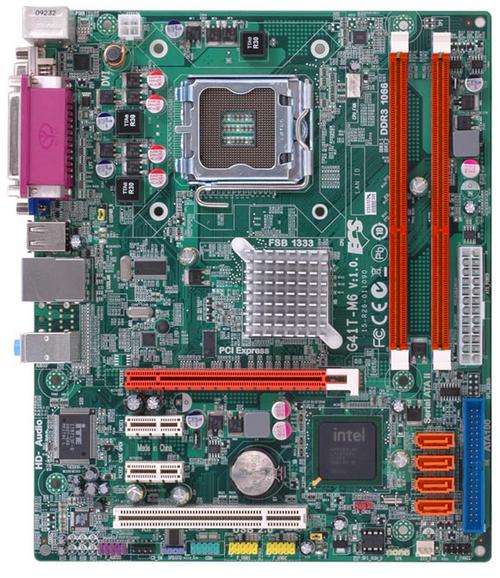

ECS G41T-M6 Socket 775 INTEL 1333mhz Bus
ECS G41T-M6 supports Intel® Core 2 Quad processors with FSB up to 1333MHz. It also can supports Dual-Channel DDR3 DIMM slots and DVI interface to enhance the visual quality.
G41T-M6 features chipset Intel G41 and ICH7 and it with DVI to provide high visual quality. And this motherboard supporting the latest Intel 45nm processors and Core 2 Quad processors, equipped with 2 DIMM DDR3 1066 up to 8GB. G41T-M6 is the best choice for family and commercial use, it deliver a high performance and professional desktop platform solution.
CPU º LGA775 socket for Core™2 Quad/Core™2 Duo/ Pentium® Dual Core/ Celeron® Dual Core/ Celeron® 400 series processors
º LGA775 socket for latest Intel® 45nm Multi-Core processors
º FSB 1333/1066/800 MHz
CHIPSET º Intel® G41 & ICH7
º North Bridge: Intel® G41
º South Bridge: Intel® ICH7
GRAPHICS º Integrated Intel® Graphics Media Accelerator X4500 (GMA X4500)
º Integrated DirectX 10 graphics processor
MEMORY º Dual-channel DDR3 memory architecture
º 2 x 240-pin DDR3 DIMM socket support up to 8 GB
EXPANSION SLOT º 1 x PCI Express x16 slot
º 2 x PCI Express x1 slots
º 1 x PCI slot
STORAGE º Support by Intel® ICH7
• 2 x Ultra DMA100/66 devices
• 4 x Serial ATAII 3.0Gb/s devices
LAN º Atheros AR8132 10/100 Lan (Atheros AR8131 Gigabit Fast Ethernet Controller optional)
REAR PANEL I/O º 1 x PS/2 keyboard & PS/2 mouse connectors
º 1 x D-sub(VGA)
º 1 x DVI connector (opt)
º 1 x Parallel port (LPT1)
º 1 x RJ45 LAN connector
º 1 x Audio port (Line-in, Line-out, Mic-in)
º 4 x USB 2.0 Ports
INTERNAL I/O CONNECTORS & HEADERS º 1 x 24-pin ATX Power Supply connector
º 1 x 4-pin ATX 12V connector
º 1 x 4pin CPU_FAN connectors
º 1 x 3-pin SYS_FAN connector
º 1 x IDE connector
º 1 x Speaker header
º 1 x Front panel header
º 1 x COM header
º 1 x S/PDIF out header, 1 x CD-in header
º 1 x CLR COMS
º 4 x Serial ATA connectors
º 2 x USB 2.0 headers support additional 4 USB Ports
º 1 x Case Open header
SYSTEM BIOS º AMI BIOS with 8Mb SPI Flash ROM
º Supports Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
º Supports ACPI & DMI
º Audio, LAN, can be disabled in BIOS
º F11 hot key for boot up devices option
º Support Page Up clear CMOS Hotkey
FORM FACTOR º Micro-ATX Size, 244mm*204mm
