ECS Micro ATX, LGA 1156, Quadcore, FSB1333

ECS Micro ATX, LGA 1156, Quadcore, FSB1333

LGA1156 socket for Intel® Core™ i5 /Core™ i3 / Pentium® and Core™ i7-800 Processor Series, supporting dual-channel DDR3 1333 to deliver a highly-effective computing

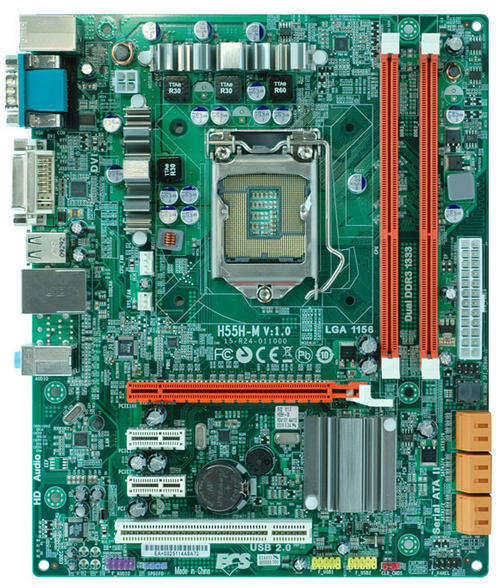

H55H-M is ECS mATX borad based on LGA 1156 socket for Intel® Core™ i7-800, Core™ i5, Core™ i3 and Pentium® processors. It has 1 DVI port to deliver smooth blu-ray playback quality with Clarkdale's 32nm integrated graphics. The new generation Clarkdale system also gives a massive memory bandwidth for multi-task processing

CPU º LGA1156 socket for latest Intel Core i7 / Core i5 / Core i3 high-end desktop processors
º DMI 2.5GT/s

CHIPSET º Intel® H55 Express Chipset

MEMORY º Dual-channel DDR3 memory architecture
º 2 x 240-pin DDR3 DIMM socket support up to 8 GB
º Support DDR3 1333/1066 SDRAM

EXPANSION SLOT º 1 x PCI Express x16 slot
º 2 x PCI Express x1 slots
º 1 x PCI slot

STORAGE º Support by Intel® H55
    • 6 x Serial ATAII 3.0Gb/s devices

AUDIO º VIA® VT1705 6-channel audio CODEC

LAN º Atheros AR8131M Gigabit Fast Ethernet Controller
º Atheros AR8132M 10/100 Fast Ethernet Controller(Optional)

REAR PANEL I/O º 1 x PS/2 keyboard/mouse connector
º 6 x USB ports
º 1 x VGA port
º 1 x DVI Port
º 1 x COM Port
º 1 x RJ45 LAN connector
º 1 x Audio port (3 holes jack)

INTERNAL I/O CONNECTORS & HEADERS º 1 x 24-pin ATX Power Supply Connector & 4-pin 12V Connector
º 6 x Serial ATA 3Gb/s connectors
º 2 x USB 2.0 headers support additional 4 USB Ports
º 1 x Buzzer
º 1 x Clear CMOS header
º 1 x Front panel audio header
º 1 x SPDIF out header
º 1 x Front panel header
º 1 x Chassis intrusion header
º CPUFAN/SYSFAN connectors

SYSTEM BIOS º AMI BIOS with 16Mb SPI Flash ROM
º Supports Plug and Play, STR/STD, Hardware monitor, Multi Boot, DMI
º Supports ACPI revision 3.0 specification
º CPU voltage adjustable
º Memory voltage adjustable

FORM FACTOR º Micro-ATX Size, 244mm*200mm
