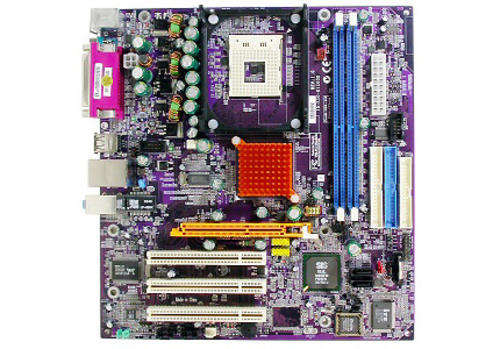

Motherboard.
| CPU | º Socket 478 for Intel Pentium 4 processor º FSB 800/ 533/ 400MHz º Supports Hyper-Threading Technology CPU |
| CHIPSET | º SiS® 661FX & 964/964L º North Bridge: SiS® 661FX º South Bridge: SiS® 964/964L |
| MEMORY | º 2 x 184-pin DDR DIMM socket support up to 2 GB º Support DDR400/333/266 DDR SDRAM Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation |
| EXPANSION SLOT | º 1 x AGP 8X/4X slot º 3 x PCI slots |
| STORAGE | º Support by SiS® 964/964L • 4 x Ultra DMA133/100/66 devices • 2 x Serial ATA devices (for 964 only) º RAID0, RAID1 configuration (for 964 only) |
| AUDIO | º Realtek ALC655 6-Channel audio CODEC º Compliant with AC'97 2.3 specification |
| LAN | º Realtek RTL8100C 10/100 Mbps Fast Ethernet Controller |
| REAR PANEL I/O | º 1 x PS/2 keyboard & PS/2 mouse connectors º 4 x USB ports º 1 x RJ45 LAN connector º 1 x Parallel port (LPT1) º 1 x Serial port (COM1) º 1 x VGA port º 1 x Audio port (Line-in, Line-out, Mic-in) |
| INTERNAL I/O CONNECTORS & HEADERS | º 1 x 20-pin ATX Power Supply Connector & 4-pin 12V Connector º 1 x FDD connector supports one 360K~2.88MB FDD º 2 x IDE connectors º 1 x COM port header (COM2) º 2 x USB 2.0 headers support additional 4 USB 2.0 Ports º 1 x SPDIF out header º 1 x Front panel switch/LED header º 1 x Front panel audio header º CD in/ AUX in headers º CPUFAN/NB_FAN/CASFAN connectors |
| SYSTEM BIOS | º Award BIOS with 2Mb Flash ROM º Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI º Supports ACPI revision 1.0 specification |
| FORM FACTOR | º Micro-ATX Size, 244mm*230mm |
Includes.
CPU. Intel Pentium 4 2.8GHZ Processor.
Memory. 1 X 256MB DDR400 MHZ Jetram Memory.
If you are interested in buying this item please do so, I will be removing it shortly.
