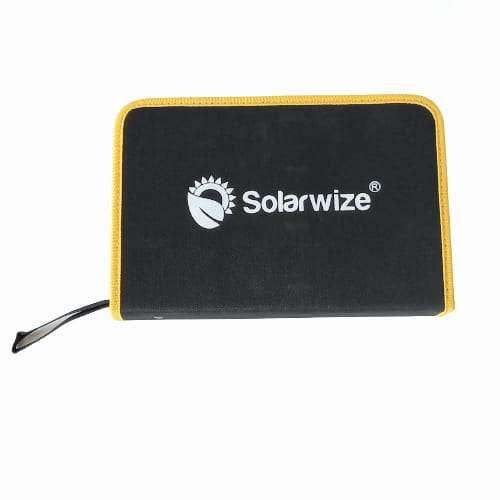

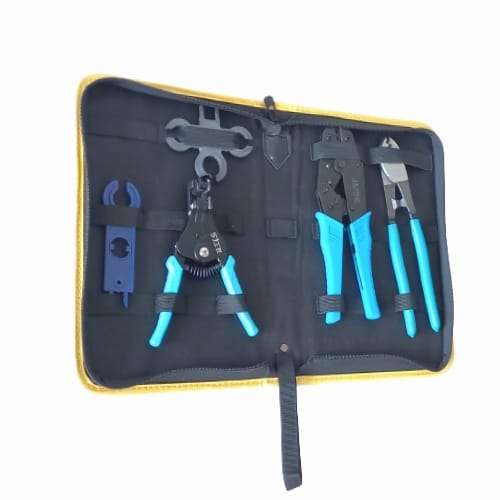

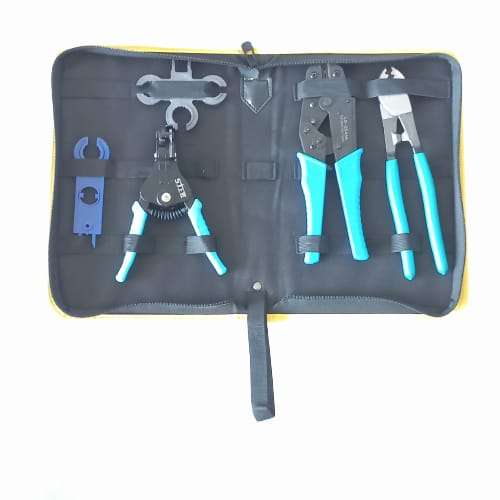

ED080 Solarwize MC4 Crimp and Strip Kit wit Bag

Crimping Tool

• Crimping Range: 2.5-6mm2
• Model: Solar Crimping Tools
• Application: For non-insulated open plug-type connector pins as used in MC4 solar connectors

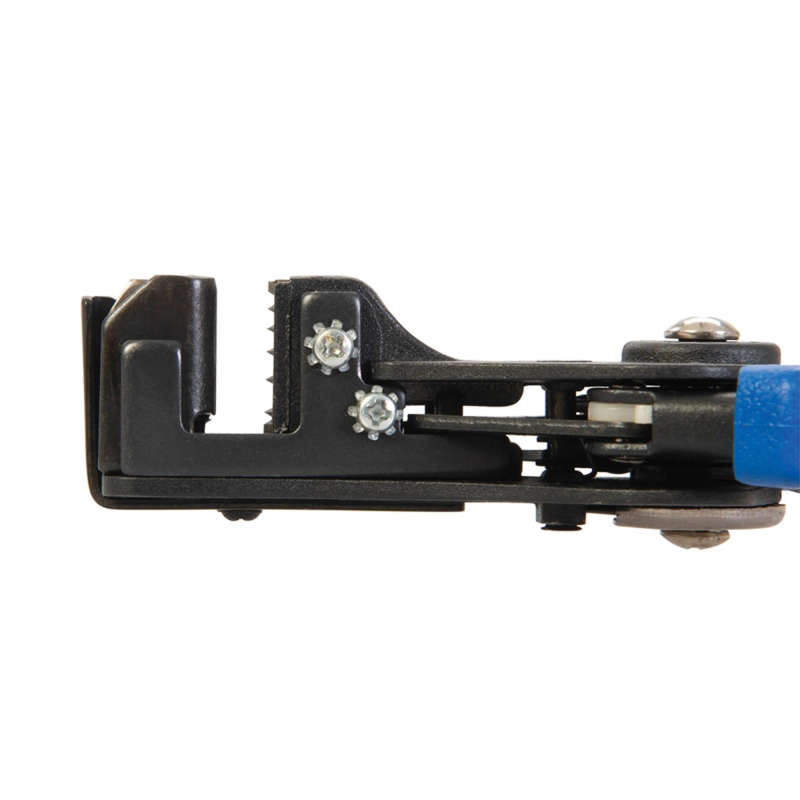

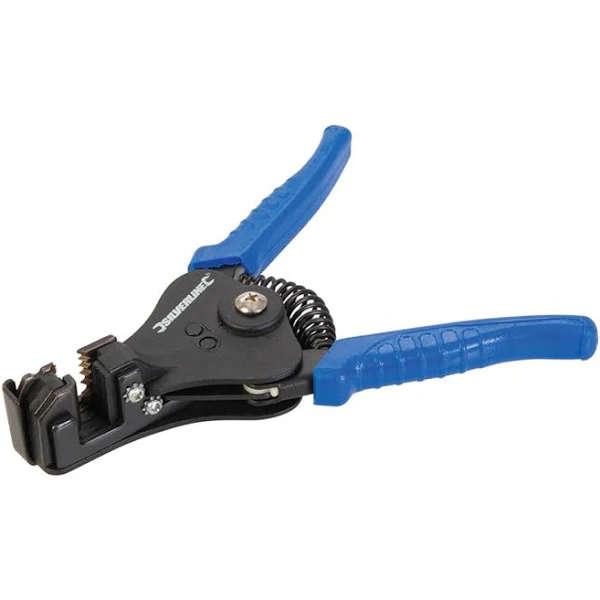

• Automatic wire striper
• Overall length: 205x105x48mm
• Stripped wire: AWG24-10(0.2-6mm²)
• Pressure terminal: 22-10AWG(0.5-6mm²)
• Connection plug: 7-8mm²
• Main application: Adjustable length wire stripping, wire cutter, bare terminal crimp, insulation terminal crimp
• Weight: 323 g
• Material: High carbon steel + alloy steel ABS elastomer handle
• Fine tuning: Strip 0.05mm²(AWG30) fine wire
• Solar connector
• Flame retardant insulating shell Waterproof and dustproof Red copper inner core tin plated.
• Solar panel adapters are made of high-quality PC and PPO material which are anti-oxidation, anti-ultraviolet, high temperature
• Resistance and have a long service life. The waterproof ring at the connection is very suitable for sealing water and dust to prevent corrosion.
• IP67 protection prevent the connector from harmful dust and water to keep it working. The conductor pins are made of tinned copper.
• After crimping the pin to the wire, the connection is firm, and it works perfectly even under heavy load.
