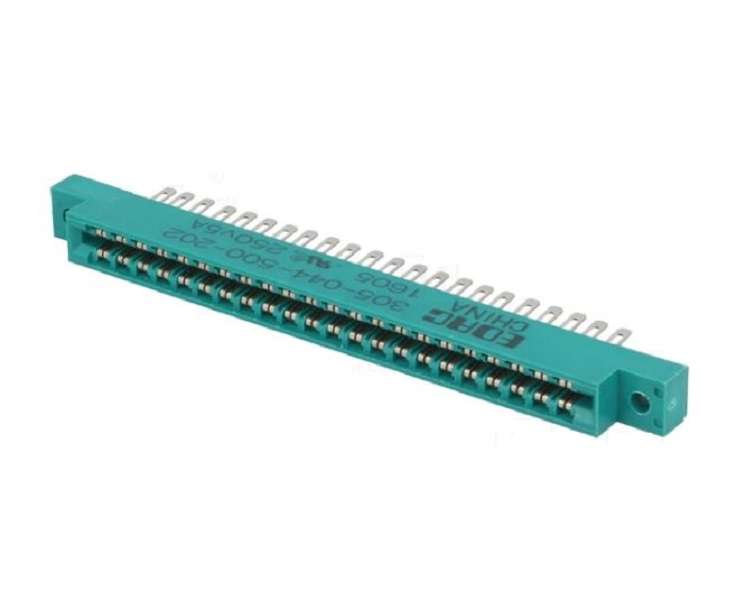

Edac (305-044-500-202) Card Edge Connector, Dual Side, 1.57 mm, 44 Contact

Card Edge Connector, Dual Side, 1.57 mm, 44 Contacts, Panel Mount, Straight,SolderProduct OverviewThe 305-044-500-202 is a 44-position 2-row Card Edge Connector with gold-platedcopper contacts and a green thermoplastic polyester insulator. It has wire-holecontact termination and 3.25mm diameter mounting holes. It accepts 0.062-inch(1.57mm) nominal thickness PC board. It accepts between contact and in-contractpolarizing keys.0.295" (7.49mm) Card slot depth5A Continuous current rating10mR Maximum contact resistance5000MR Minimum insulation resistanceApplicationsIndustrialProduct InformationCard Edge Connector Type: Dual SideNo. of Contacts: 44ContactsCard Thickness: 1.57mmNo. of Contacts: 44 ContactsCard Edge / Backplane Connector Type: Card EdgeConnector Mounting: Panel MountPitch Spacing: 3.96mmConnector Body Orientation: StraightContact Termination Type: SolderContact Material: Copper AlloyNo. of Rows: 2RowsContact Plating - Mating Side: Gold Plated ContactsRow Pitch: 5.08mmConnector Body Material: Thermoplastic Polyester BodyContact Plating: Gold Plated ContactsProduct Range: 305
