What makes Edgar unique?
Connection diagram
A classic TCP server, TCP client or UDP can be used for communication. In addition to standard communications, Edgar WiFi can send packets from / to the serial line via HTTP GET. The data packet can be sent as HTTP GET request from the web server. Similarly, if the data are sent to a serial line e.g. from a connected bar code reader - the converter can send the data to the web server as HTTP GET request.

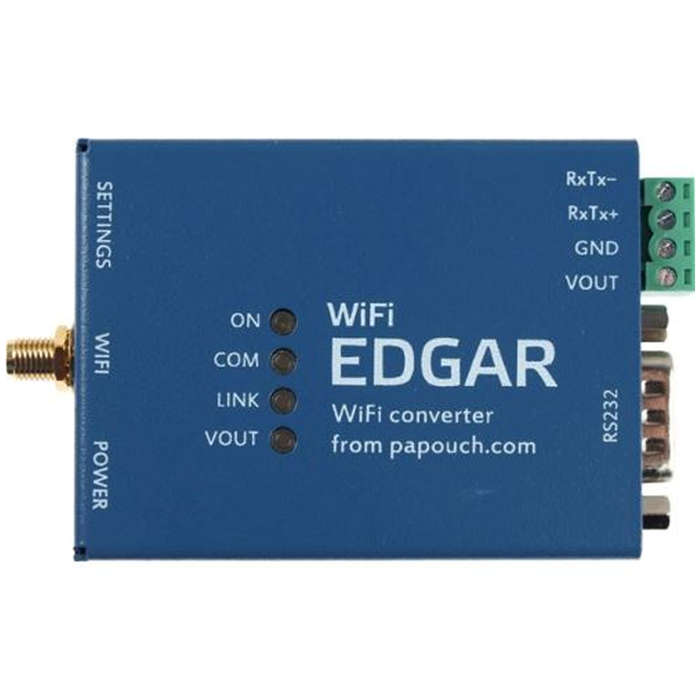

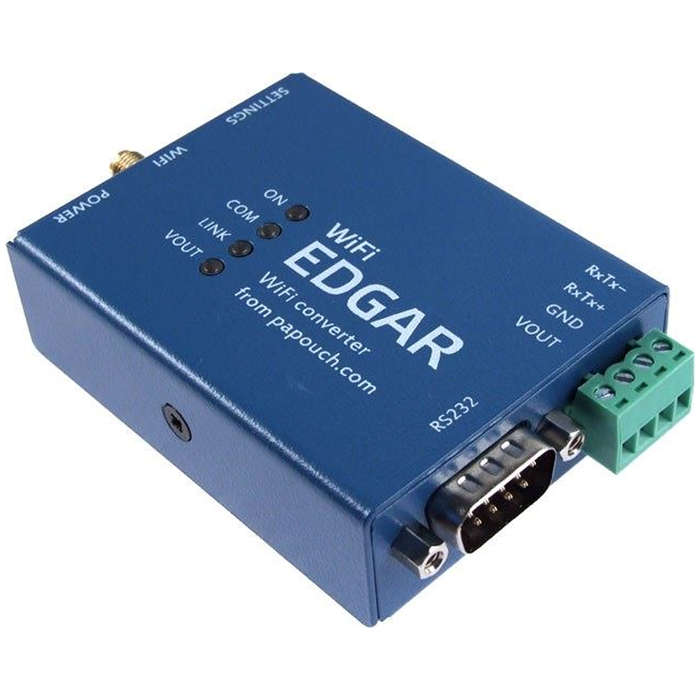

Edgar comes in a rugged metallic enclosure and can be DIN rail mounted (optional).
WiFi converter applications
WiFi Edgar converter features
Power output VOUT
VOUT power output can power the connected device as well. Therefore, no additional power supply is needed. Power output can be switched on or off using the web interface or by HTTP GET, thus a power consumption can be decreased or the attached device can be restarted.

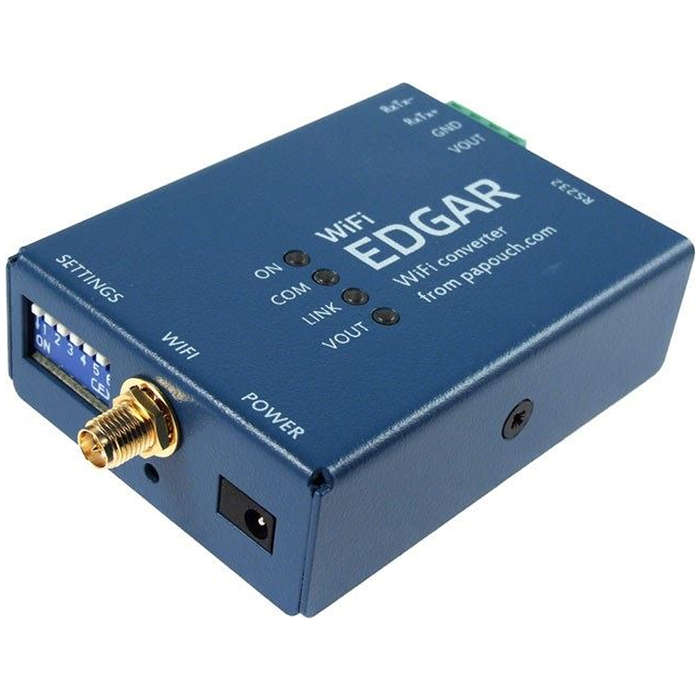

Power output is DC and the voltage is determined by the switches on the side of the converter. Power output can be switched on or off using the web interface. The output voltages can be selected using a DIP switch on the side of the device. You can chose from the following options:
How does HTTP GET work in an Ethernet converter to a serial port?
This feature allows data from the serial port to be sent as HTTP GET requests to a remote server. In the reverse direction, the data from the remote server can be sent to the serial line directly by replying to the GET request sent by the converter.
Edgar sent GET to the server and received a reply with data that should be send back to serial port
The connection can also be initiated from remote server side. The server sends HTTP GET to the set.xml script in the converter. Data can be sent as an ASCII character string or using hexadecimal form as binary data.
Edgar received GET reply from the server with data, that should be send to serial line
GET communication can be optionally secured with 128bit AES encryption.
