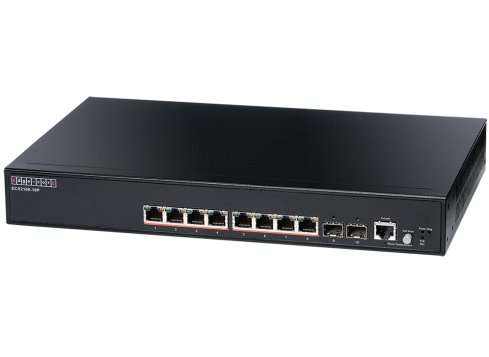

Edge-Core ECS 2000-10P 10 Port Web Smart L2 Managed Switch - Refurb

Upgrade your network infrastructure with this used Edge-Core ECS2000-10P 10-Port Web Smart L2 Managed Switch. Designed for small to medium-sized businesses, this switch offers a combination of cost-effective web-smart features and advanced Layer 2 management capabilities. With 8 Gigabit Ethernet PoE ports and 2 Gigabit SFP uplink ports, it provides flexible connectivity options for various network devices such as IP cameras, VoIP phones, and wireless access points. The compact design allows for easy installation in tight spaces, and its fanless operation ensures silent performance. The switch supports advanced features like VLANs, QoS, and IPv6, making it a versatile solution for modern network environments.

Key Features

• 10-Port Gigabit Connectivity: 8 x 10/100/1000BASE-T PoE ports and 2 x Gigabit SFP uplink ports.
• Power over Ethernet (PoE): Delivers up to 15.4W per port, ideal for powering PoE-enabled devices.
• Layer 2 Management: Supports VLANs, QoS, IGMP Snooping, and Link Aggregation for enhanced network control.
• Compact and Fanless Design: Slim profile suitable for wall mounting or desktop use; silent operation without fans.
• Energy Efficient: Supports IEEE 802.3az Energy Efficient Ethernet for reduced power consumption.
• Dual Firmware and Configuration: Provides redundancy and easy recovery options.
• IPv6 Support: Future-proof your network with full IPv6 management capabilities.
• Easy Management: Web-based GUI for intuitive configuration and monitoring.

Ideal Uses

• Small to Medium-Sized Businesses: Perfect for expanding network capabilities without significant investment.
• IP Surveillance Systems: Provides PoE power to IP cameras for streamlined installations.
• VoIP Deployments: Ideal for powering VoIP phones in office environments.
• Wireless Networks: Powers wireless access points for seamless Wi-Fi coverage.
• Edge Networking: Suitable for use at the network edge, connecting end devices to the core network.

Specifications

• Condition: Used device with minor scratches and scuffs. Device has been extensively tested and is 100% functional.
• Manufacturer: Edge-Core Networks
• Model: ECS2000-10P
• Form Factor: Compact desktop or wall-mountable switch

Hardware Features

• Ports:
  • 8 x 10/100/1000BASE-T PoE ports (RJ-45)
  • 2 x Gigabit SFP uplink ports
• PoE Capability:
  • Total PoE Power Budget: Up to 65W
  • IEEE 802.3af compliant, up to 15.4W per port
• Performance:
  • Switching Capacity: 20 Gbps
  • Forwarding Rate: 14.88 Mpps
• MAC Address Table: 8K entries
• Jumbo Frames: Supports up to 9KB
• Power Supply: Internal power supply

Management Features

• Layer 2 Features:
  • VLANs: Port-based VLANs, IEEE 802.1Q VLAN tagging
  • Quality of Service (QoS): IEEE 802.1p priority queues
  • Link Aggregation: IEEE 802.3ad LACP
  • IGMP Snooping: IGMP v1/v2 snooping
• Security:
  • Port Security
  • Storm Control
• Management:
  • Web-based GUI
  • Dual firmware and configuration files
  • Firmware upgrade via web
• Protocols:
  • IPv4 and IPv6 support
  • IEEE 802.3az Energy Efficient Ethernet

Physical and Environmental

• Dimensions: Compact design suitable for wall mounting
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10% to 90% non-condensing
• Cooling: Fanless design for silent operation

Certifications

• Safety: CE, FCC, UL

Warranty

• 3 Month Carry-in Warranty

What's in the Box

• Edge-Core ECS2000-10P Switch
• Power Cord
