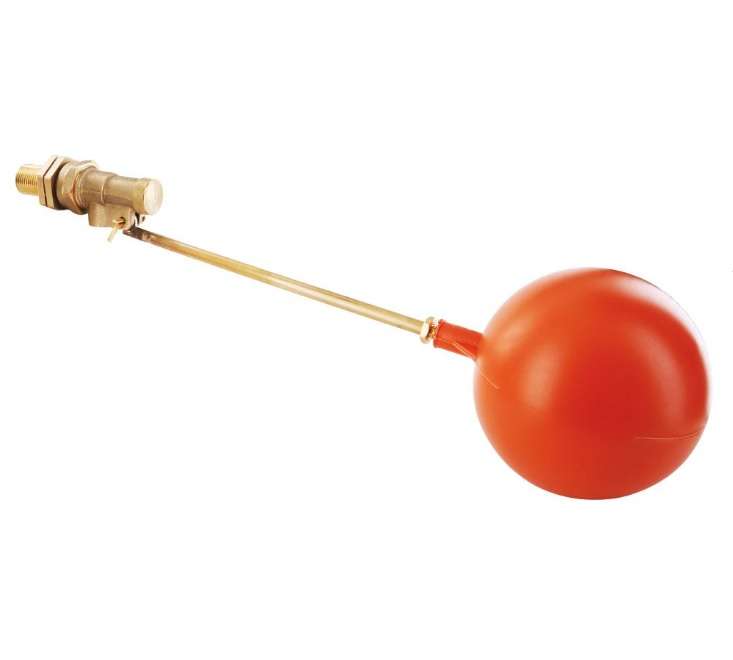

Eduan Float Valve And Ball 40mm

This product consists of a weighted float with enough buoyancy to remain suspended within a through with water. The sealing mechanism is closed by water pressure. As the water level drops the float will open the seal to allow the water to flow. When the desired water level is reached the valve will close as the float no longer exerts a force on the valve mechanism.

The compact design of the Eduan float valve allows its installation into small spaces resulting in cost savings. The Eduan float valve has a high flow rate even at low pressures for example: 21 L /min @ 50 kPa and 48 L /min @200 kPa. The float valve seals effectively under low as well as high pressures. It opens fully when water flows to ensure a high flow rate. The large valve opening reduces the risk of blockage and the swirl action of the water avoids build-up of clogging material. For example sand or organic material. Because of the construction materials calcium build-up is prevented. Maximum operational pressure is 500 kPa. Durable materials are used throughout. Stainless steel 304 for the actuator and the fulcrum component. ABS for the lock nut valve and seal body. Polypropylene for the float and spigot while for the seal neoprene is used. In case the float is damaged the valve will close and no water will leak out and no wastage will occur. Because of the low wear rate of the components the product has a long operational life. Although great care is taken during manufacturing the product can be damaged if used under sub-zero conditions.
