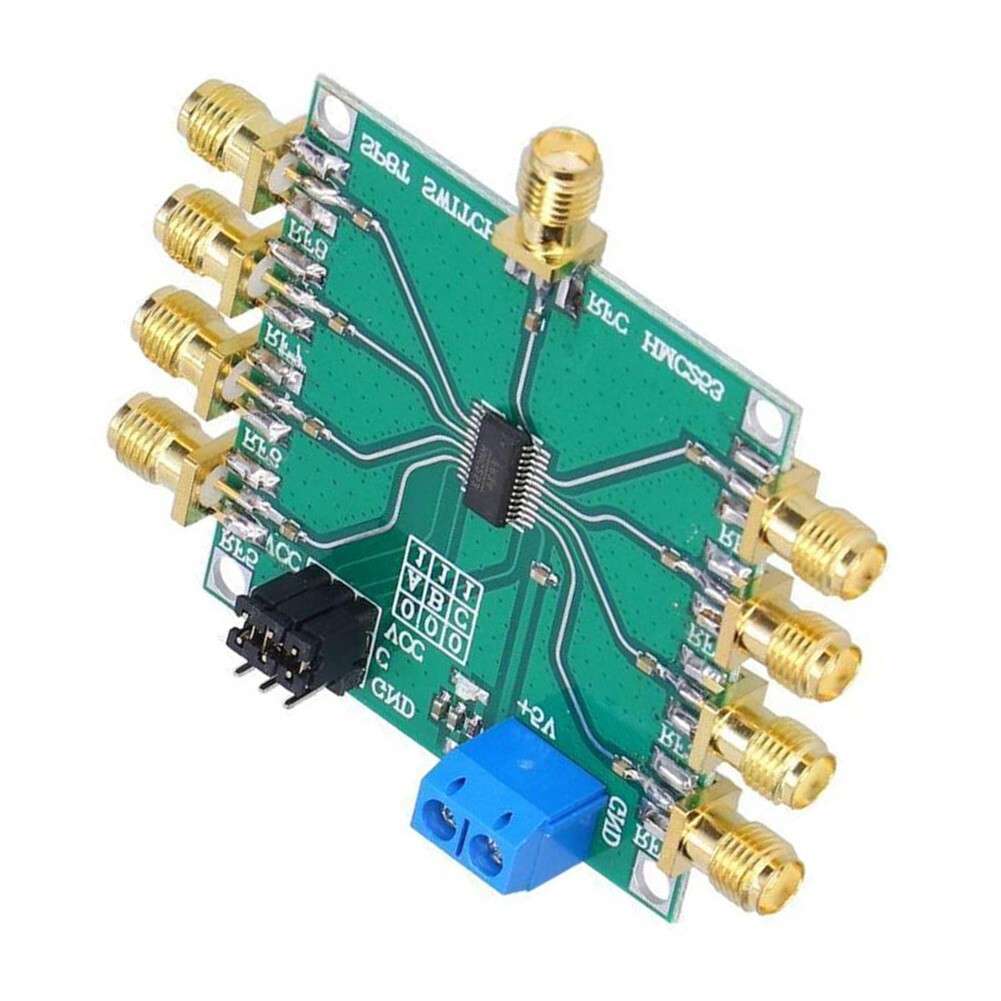

Efficient HMC253AQS24E Antenna Selection Channel Module DC 2 5 GHz RF Switch

Efficient HMC253AQS24E Antenna Selection Channel Module DC 2 5 GHz RF Switch DESCRIPTION Features: * Brand new and high quality * Made of high quality materials, sturdy and * HMC253 DC-2.5 GHz multi-function RF single pole eight throw switch RF switch channel selection antenna module * The HMC253AQS24E is a low-cost, non-reflective Sp6t switch in a 24-pin Qsop package with broadband operating frequency from DC to 2.5 Ghz. * This switch offers single forward bias and true for Ttl/CMOS compatibility. * 3:6 decoder integrated on switch, requiring only three control lines and a positive bias to select each path * The HMC253AQS24E SP8T can replace SP4T and SPDT Mmic switches and logic drivers in multiple configurations. * RF single-pole and eight-throw switch RF switch antenna selection channel selection module Specification: Function 1. Low insertion loss(2 Ghz): 1.0 dB 2. Single positive supply: Vdd=+3V to+5V 3. Integrated 3:6 for Ttl decoder application 1. Base station 2. Cable TV/Database 3.Mmds and WLAN 4. Test equipment Circuit description Power supply voltage: 3V-5V Frequency: DC-3GHZ PVB size: 50x50mm Color: green Material: PCB Size: about 7×5cm Package Included: 1 x antenna module
