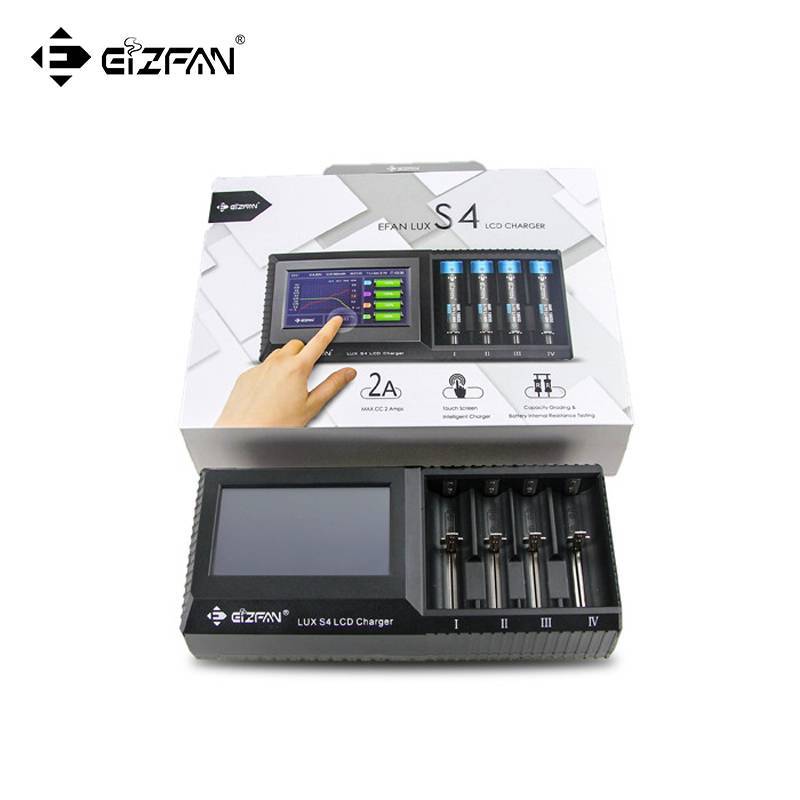

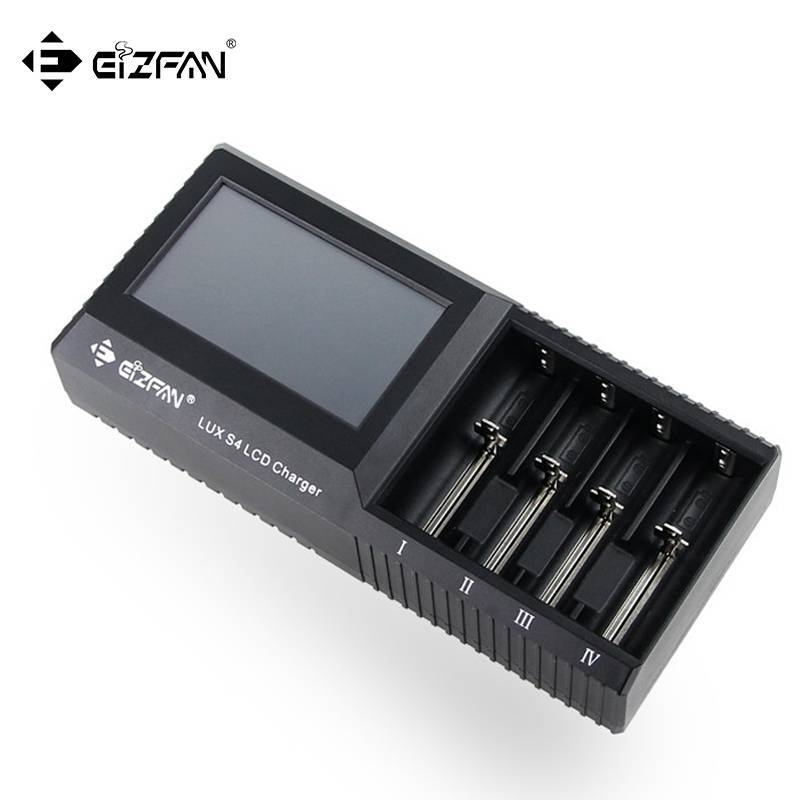

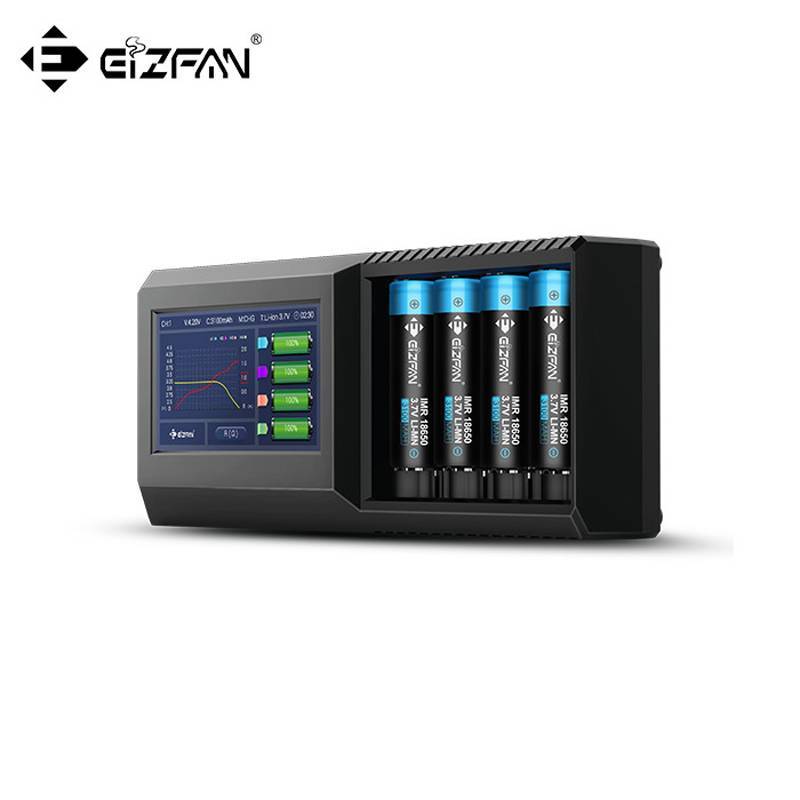

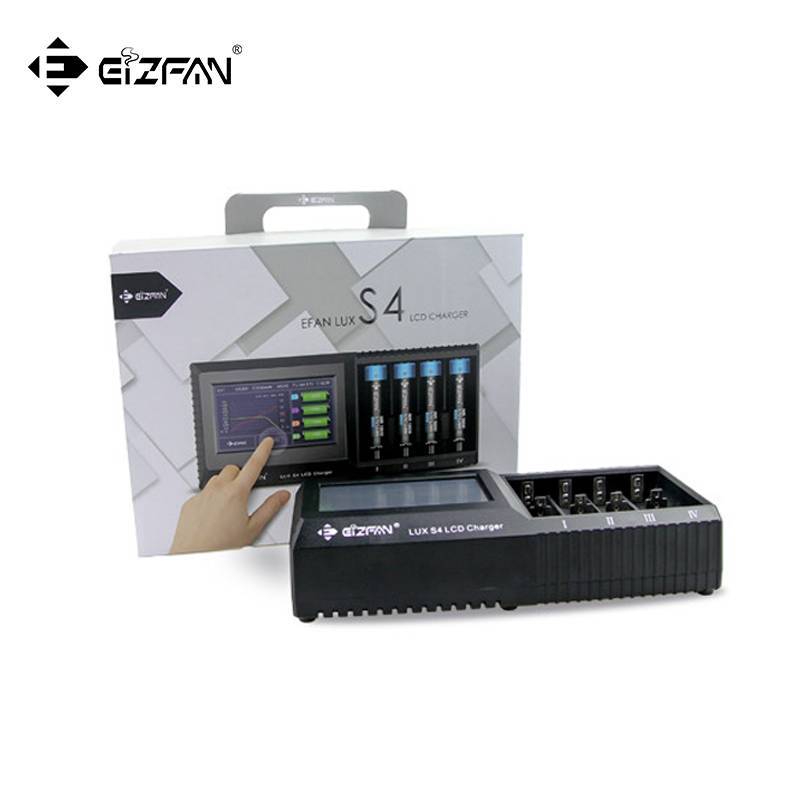

Efan Lux S4 Touch Screen LCD Battery Charger
*Touch Sreen Intelligent Charger
*MAX.CC 2 Amps
*Capacity Grading & Battery Resistance Testing
*Built in cooling fan with two temperature sensors
*Compatible with
IMR/3.7V Li-ion/3.8V Li-ion/LiFePO4
26670 26650 22650 21700 20700 18650, 18490, 17500, 18350, 14500, 10440, 16340(RCR123)
Ni-MH / Ni-Cd
AA AAA AAAA SC C
Features
1.Micro-programmed control unit, intelligent implementation of touch control, four slots operate independently and support the hybrid charging mode.
2.Using constant current, constant voltage charging mode.
3.Using DV control technology to reach higher charging efficiency.

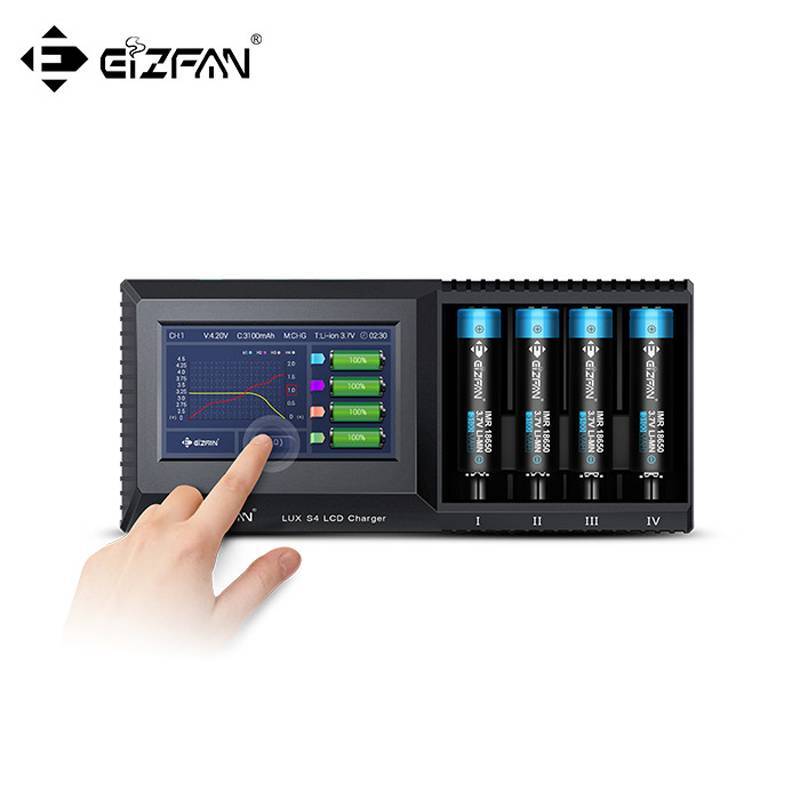

4.Color LCD display screen instantly shows charging progress, battery voltage,current, time,capacity,charge-discharge curve and display diagram of internal resistance testing.
5.Compatible with Ni-MH /Ni-Cd/ LiFePO4/ Li-ion 3.7v/Li-ion 3.8v battery for any capacity.
6.Fit in rechargeable cylindrical battery which diameter below 26mm,height 34-73mm.
7.AC 100V - 240V turn into DC 12V input mode (or DC 12V 5A vehicle-mounted input)
8.Functionality includes charging, discharging, capacity grading & battery resistance testing
9.Adjustable 4 (0.5A/1A/1.5A/2A) optional charging modes for different capacity battery.
10.All the discharge current is set to 0.5A.
11.Protection of opposite connection: corresponding battery slot showing "Battery Error" if battery reversed.
12.Protection of short circuit: corresponding battery slot showing "Battery Error" if battery short circuit.
13.Automatic activation function: automatically activate the "zero voltage" lithium battery.
14.Intelligent temperature control: built-in cooling fan will be according to the two temperature sensors, to detect machine internal temperature which rise to 60 degrees Celsius automatically open, drop to 40 degrees Celsius automatically stop, ensure the charger has good working condition. Avoid spontaneous combustion or ignition in high-capacity batteries during high temperature on the charge and discharge process.
Weight: 1200g/kit
