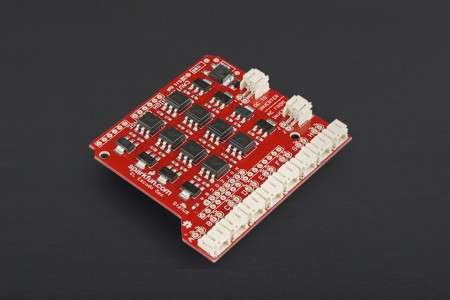

EL Escudo Dos

EL Escudo Dos

New 1 available
Indicative market price: R840.94
Only 1 left – grab it before it’s gone!
R595.12
29% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 1 business day. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Netram Technologies678
98.41 % Positive ratings
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
COM-00566
Bob Shop ID
633481401

INTRODUCTION

We've heard you, and made a number of improvements to our EL Shield. The new version adds zero-crossing optoisolated triacs for noise-free operation and full isolation between the AC and DC sides, and includes a 1.5A adjustable linear regulator to supply regulated DC to an external inverter (not included).
EL Escudo Dos is an Arduino shield for controlling up to eight strands of electroluminescent wire. EL wire is flexible plastic cord that glows brightly when high-voltage AC is applied to it. It's available in numerous colors (see the related products below), runs cool, and requires very little current, but can be difficult to work with because of the high-voltage requirements. The El Escudo Dos contains circuitry to safely switch high-voltage AC on and off, allowing you to create animated displays or whatever else your imagination can come up with.
In addition to this shield, you will need Arduino headers (see the related products below), an inverter (a component that generates the high-voltage AC needed by EL wire), and the EL wire itself. SparkFun carries two inverters, a 3V-input version that can drive a few feet of EL wire, and a 12V-input version capable of driving dozens of feet of EL wire. Choose the one appropriate to your power source and driving requirements. The shield's built-in regulator comes preset to 3.3V, but can be set to any voltage by changing two resistors, or bypassed with a solder jumper to send the Arduino's RAW voltage directly to the inverter (perfect for 12V setups!). See the tutorial below.

SPECIFICATION

  • Eight opto-isolated, zero-crossing control channels
  • No library needed - control is as easy as turning a LED on and off
  • Shield is compatible with 5V or 3.3V Arduinos
  • Integrated 1.5A linear regulator (LM317) to supply regulated DC power to external inverter
  • Linear regulator preset to 3.3V, but can be changed via PTH resistors, or bypassed entirely
  • External inverter required, not included
  • Comes without headers, soldering required

DOCUMENTS

  • Schematic
  • Eagle files
  • Example code
  • Datasheet (MOC3063S)
  • Datasheet (Z0103MN)
  • Datasheet (LM317)
  • Tutorial: setting up an EL system
  • Jacob's Ladder Project
  • Product Video
