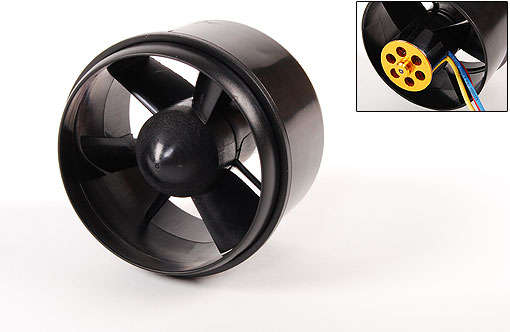

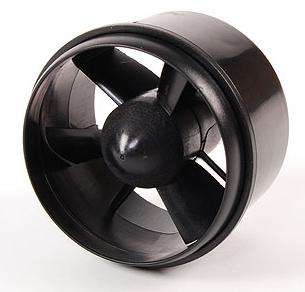

53mm EDF Fan Unit with Motor
EDF Fan Unit 53mm
Motor Type: 2409H-7T Delta Turn
Outer Dimensions: 62 x 71mm
Shaft: 3.175mm
Weight: 71g
kv: 5300rpm/v
Fan Diameter: 53.5mm
Suggested Voltage: 11.1v (3 cell)
On 3S 2200mAh and built in the fuselage = 46 A and 530 grams static thrust
Max Current: 57A
Thrust: Approx 600g
More Details:
- They come pre-balanced
- They are pre-assembled
- The case/fan and motor are high quality and strong
- It is super powerful and smooth
- Wiring does not have bullet connectors
- Plenty of clearace between fan and housing so no need to worry about 'rubbing'
- With a 1000mAh 3s it pulls 39amps at 375watts - Wide Open Throttle
- Fan/Impeller 53mm
- Housing diameter 58mm
- Housing front lip 61mm
- Housing length 33mm
- Motor(can) diameter 28.5mm
- Total Length (front of spinner to end of motor) 71mm
- Wiring approx 65mm
Customer Feedback:
I have Tested this on my Watt Meter here are the Results - 5300kv 53mm EDF
2200 15C 11.1v
31.34A, 9.8v, 287.3 Watts Peak
2200 18C to 23C 11.1v
32.18A, 11.1v, 360.7 Watts Peak
1800 12C 14.8v
33.72A, 12.1v, 419.1 Watts Peak
1800 12C 14.8
34.42A, 12,75v, 442.2 Watts Peak
Great Results and the Motor only gets Warm.
These are amazing, the amount of air that gets moved by these little things is *HUGE*. I have no doubt that these exceed the 600g of thrust stated as the product title on 3S.
Using a Turnigy 60A esc, and 2500mah 21C 3S Zippy lipo I was only able to pull 35Amps.
With low timings on the ESC this wasnt able to progress past 60% throttle before stopping (about 28amps). Medium timings were slightly better - high timing being the best. A bit of End Point Adjustment on your radio should let you get "full throttle" without having the motor stall on you.
After running this at 90% throttle for 2 minutes on a bench the motor was warm to touch but not hot - quite impressive.
With the RPM's i've seen on 3S i'm scared to put it on 4S - i don't think you need to go that high.
This EDF unit for the price is amazing. With a 11.1V lipo pack,I am getting 590g thrust and at 14.8V I am getting 750g thrust. I use a 60 amp ESC. You can hand launch a 730g plane with this set up. Performance is better than advertized. I fly a F27 Striker I converted for EDF.
I was looking into getting EDFs and I came across these two videos on this thing with a 3s.. INSANE POWER!!!
http://vimeo.com/833204
http://vimeo.com/833221
