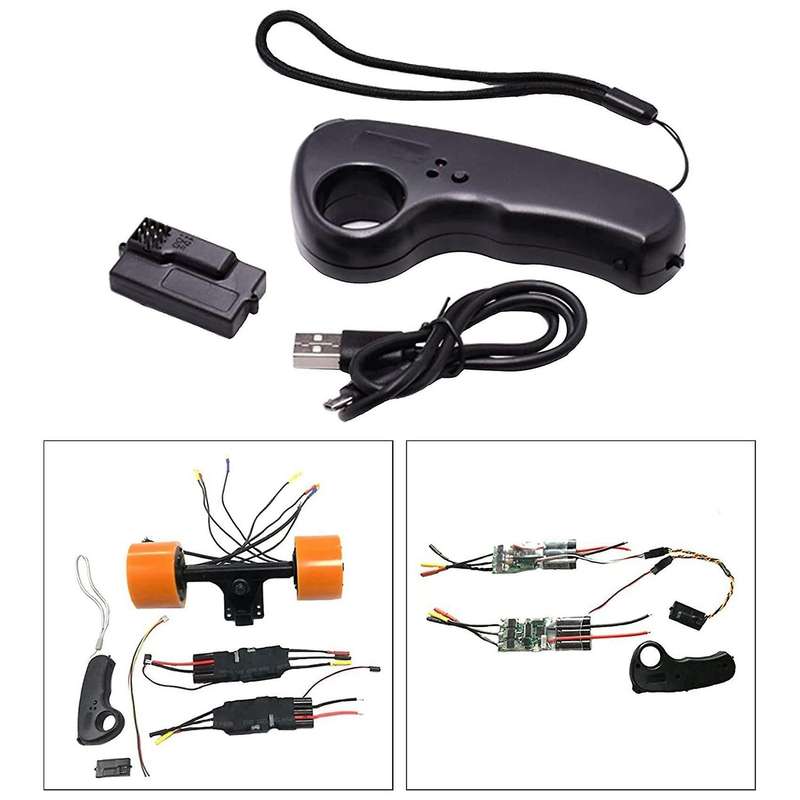

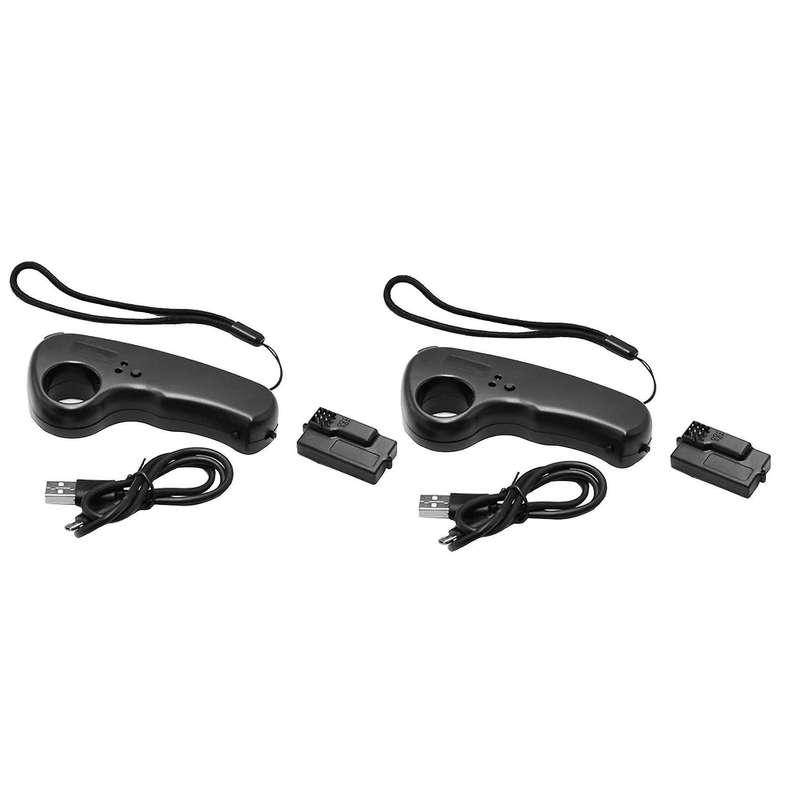

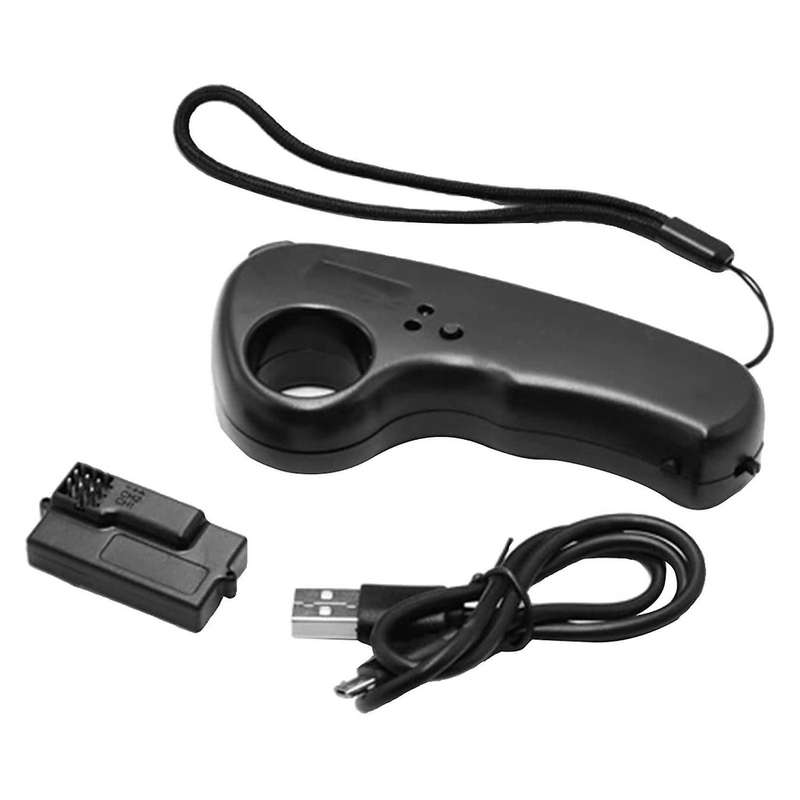

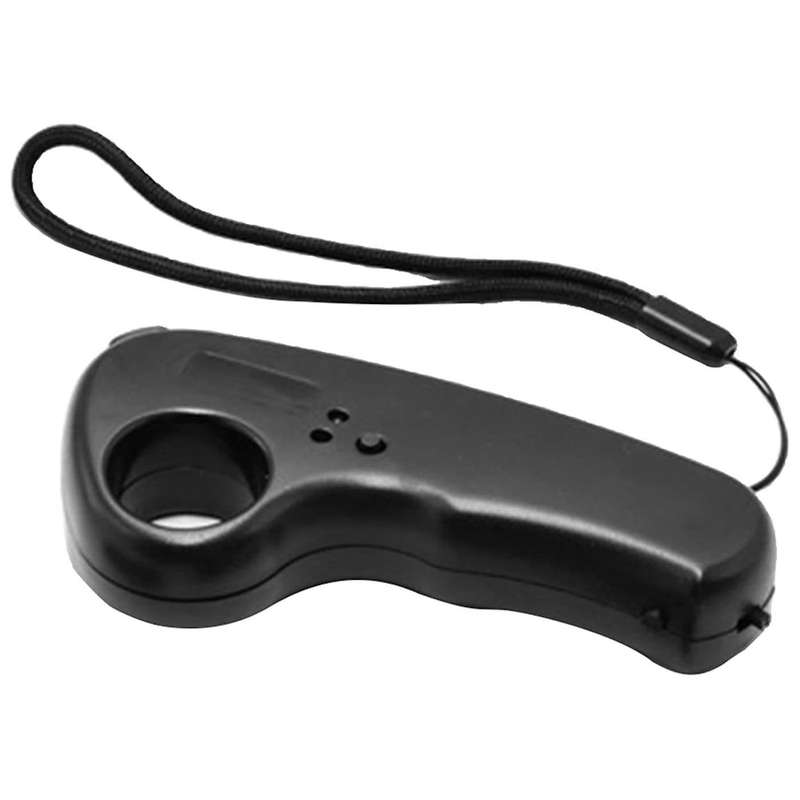

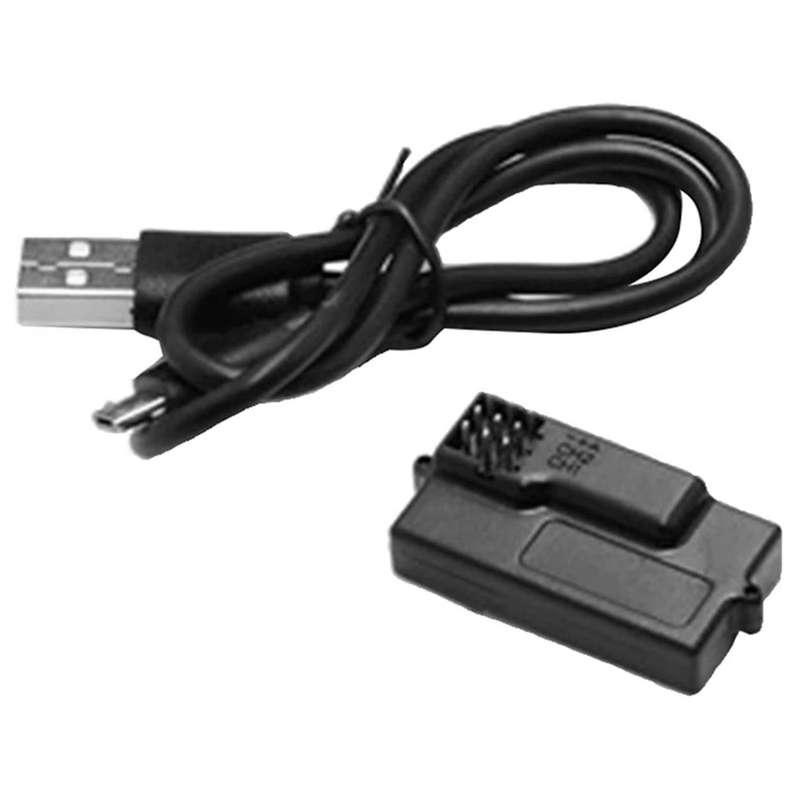

Electric Scooter Remote Control Receiver Dual Drive Controller

Scope of application:Electric skateboard Electric bicycle Model airplaneRechargeable Li-ion Battery 3.7v 500mAhEasy and convenient installation2.4Ghz band widthThis remote controller fit for VESC, fit for FSESC series products, while the reverse function is useless.Press and hold on the bind button on the remote and then turn the remote on;1. Check and make sure all the wires are mounted,and the remote is CLOSED,insert the bind plug into CH3(Bind) on the receiver;2. Switch on the ESC,you can see the receiver red light flashOnce you see a solid red light, you now know the two are binded together,and please pull the bind plug out (this is important,so the remote can record the throttle mid to realize the fail safe)Then you can test it again by turning off the controller and it should flash.if you turn the power on Transmitter back on it should go back to solid red.Before running,it's better to test the fail safe fuction by closing the remote,if the motor didn't move,so the fail safe fuction is in good condition,when you find the motor is moving,you have to repeat the step No.1- No.6 aboveremoteChannel: 2 channelRemote Controller 2.4GhzWeight: 48gFrequency: 2.4GChannel: 2 channels (throttle and LED light)Application of ESC: All ESCPower:Li-po 3.7v 500mAh(included)Receiver:includedWrist strapSuitable for: Electric skateboard longbaordColour: blackMaterial: plasticSize: 110 x 52 x 17mmPackage Contents:2 x Remote Control2 x English manualOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
