Electric Winch 4500 lb ATV/UTV
The winch completes the traction drive with human power or mechanical power driving a reel. It can vertically lift or horizontally and obliquely draw heavy weights.An electric winch consists of a motor, the coupling, the brake, the gear bos, and the reel which are altogether installed on the machine frame. The winch has such features as generality, compact structure, small volume,light dead weight, heavy lifting capacity and convenient movement .
FEATURES
Rated Line Pull : 4500LB(2040kg) single-line
Motor : 3.9hp/2.9kw 12V, Permanent Magnet Motor
Gear Train : 3-stage planetary
Gear Reduction Ratio : 176:1
Clutch : rotate 90°
Cable : φ1/4”×49” (φ6.35mm×15mm)
Drum Size : φ2.4”×8.81”(φ60.5mm×113mm)
Overall Dimensions : (L×W×H)16.6”×5.3”×5.1”(421×135×130mm)
Gross Weight : 37.5lbs(17kg)
Duty Cycle : Intermittently

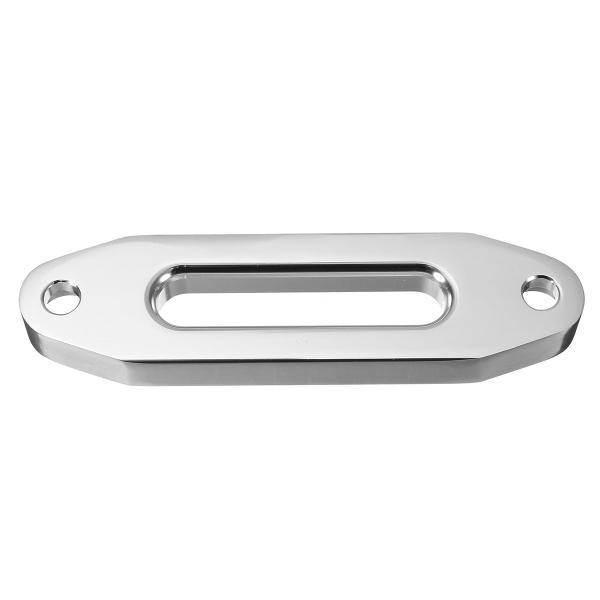

Fairlead : Aluminum fairlead
Package : 1pc/box, 19.7” ×10.6” ×6.3”(500×270×160mm)
Mounting Bolt Pattern : 3.15”(80mm )
Remote Control : included
