Product Description

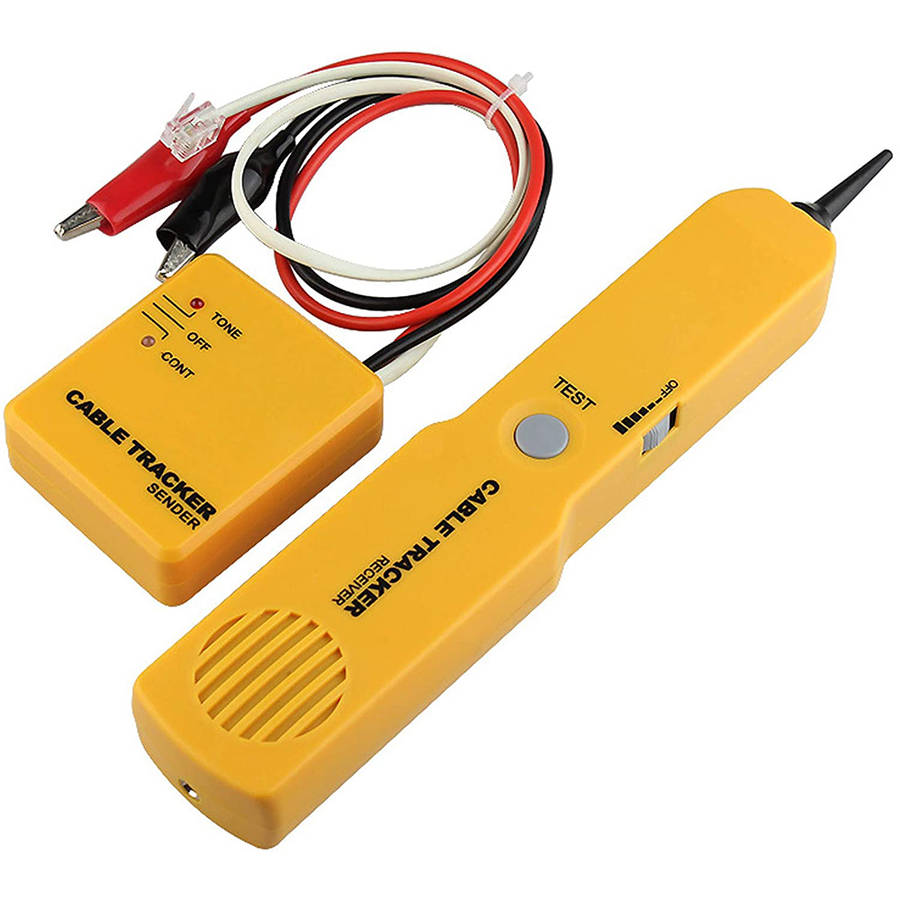

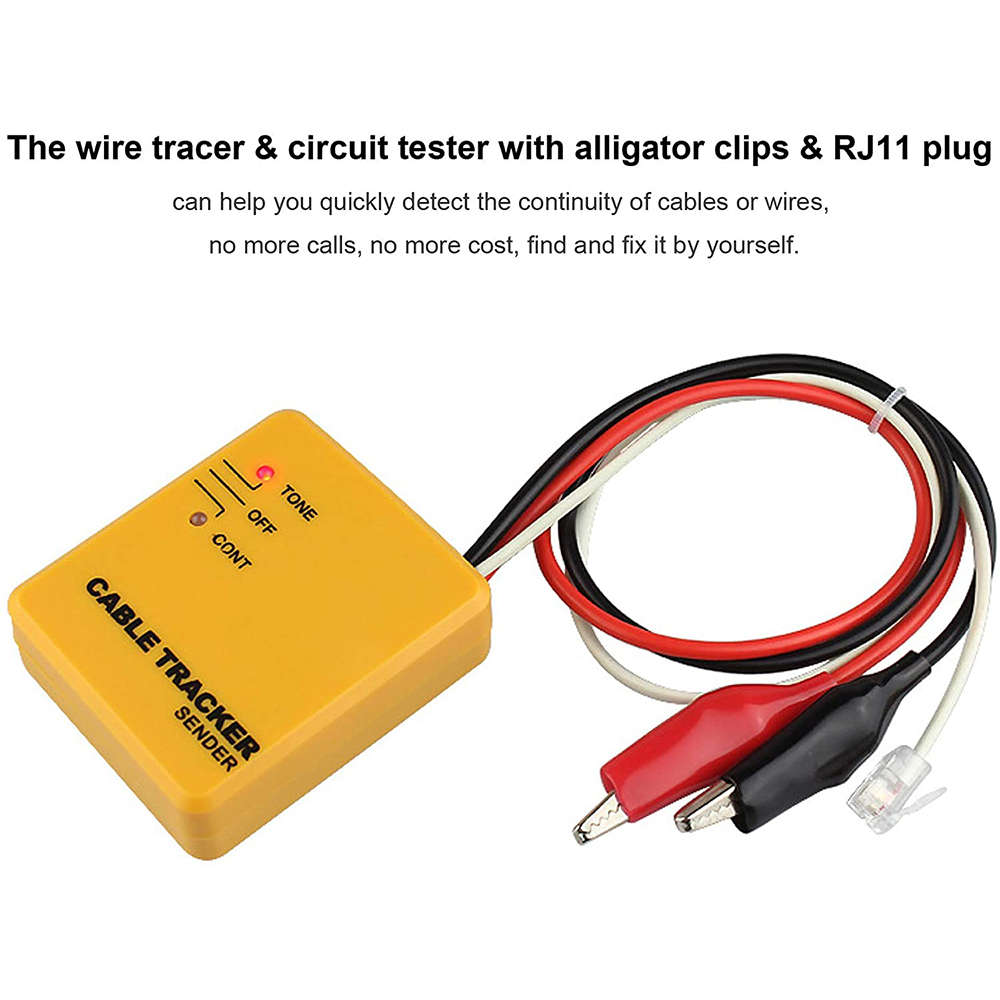

This wire tracers and circuit tester with clips and RJ11 plug can help you quickly detect the continuity of cables or wires, no more calls, no more cost, find and fix it by yourself.
Features:
With this instrument, it is easier to install, debug and maintain telephone lines.
The RJ-11 plug are used to identify the status on the telephone line that works (Clear, ring, busy).

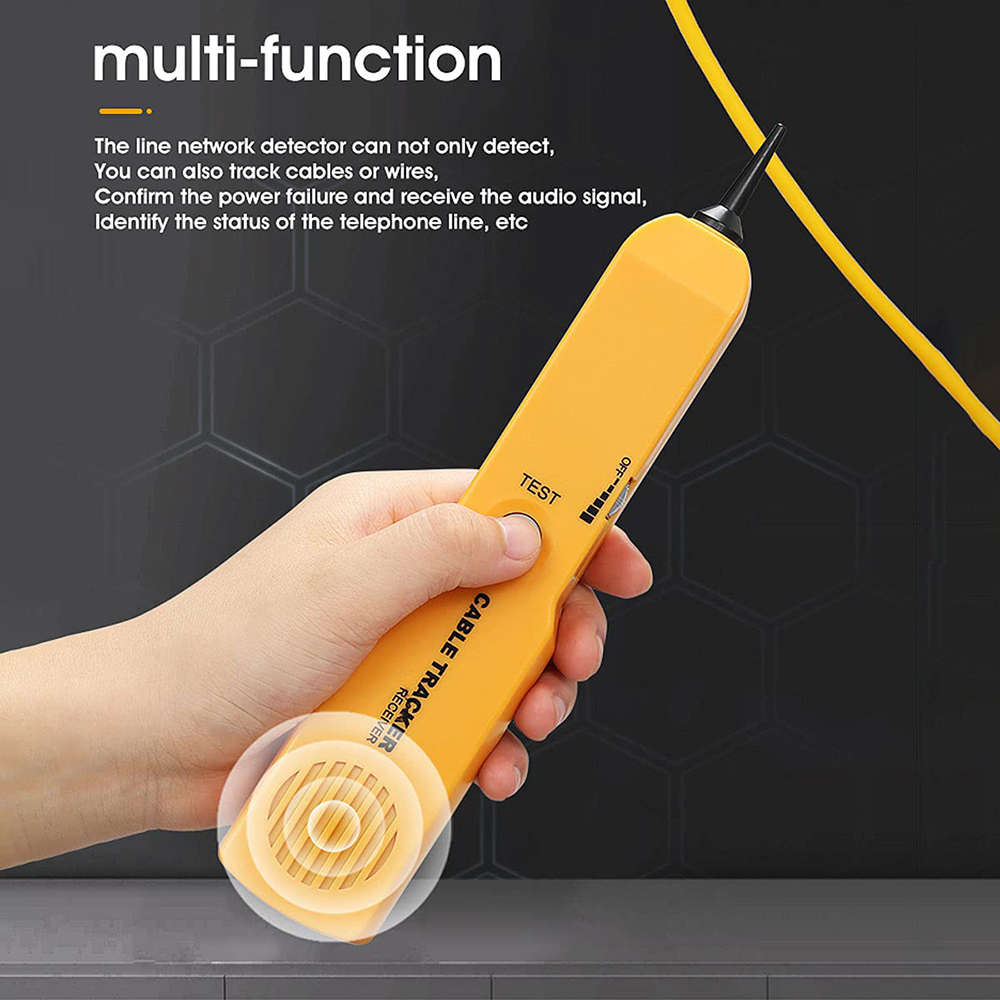

The wire tracer probe can pick up a tone without touching the wire. It can identify the selected wire or cable audibly.
Flexible usage, thanks to the cont mode you can check for short and open circuits, and the RJ11 connector lets you test telephone.

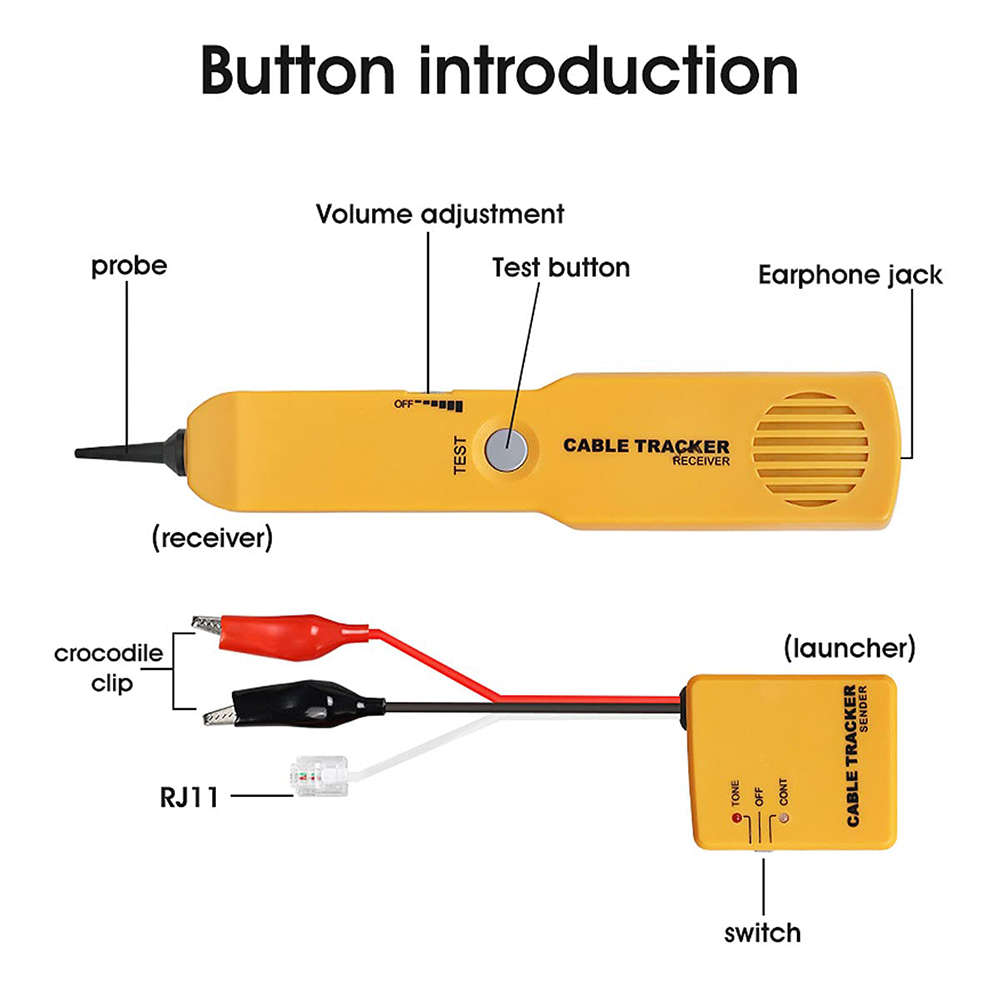

Two alligator clips are used to connect the line. Before checking the circuit, the power supply in the circuit must be cut off to avoid the risk of electric shock.
The cable tracer can search for wires in various applications, including buried wires, single stranded wires, broken wires, etc. Suitable for wires, fixed telephones, coaxial cables, automotive cables, etc.
In CONT mode, you can check the short circuit and open circuit in the line. The attached RJ11 connector allows you to easily test the telephone system (in CONT mode, you need to use two alligator clips).
In TONE mode, you can quickly track cables passing through ceilings, under floors, interior wall barriers, etc., without the risk of not knowing the exact location of the wires (only one alligator clip is used in TONE mode).
LED Indication:
In TONE Mode, connect the red clip to the wire and the black clip to the ground, and Then trace the wire to the disconnected position.
In CONT Mode, connect two clips to each end of the circuit cable.
When the Red LED indicator lights is on, it indicates that the wire is short-circuited or broken.
Specifications:
Material: ABS + electronic components
Note:

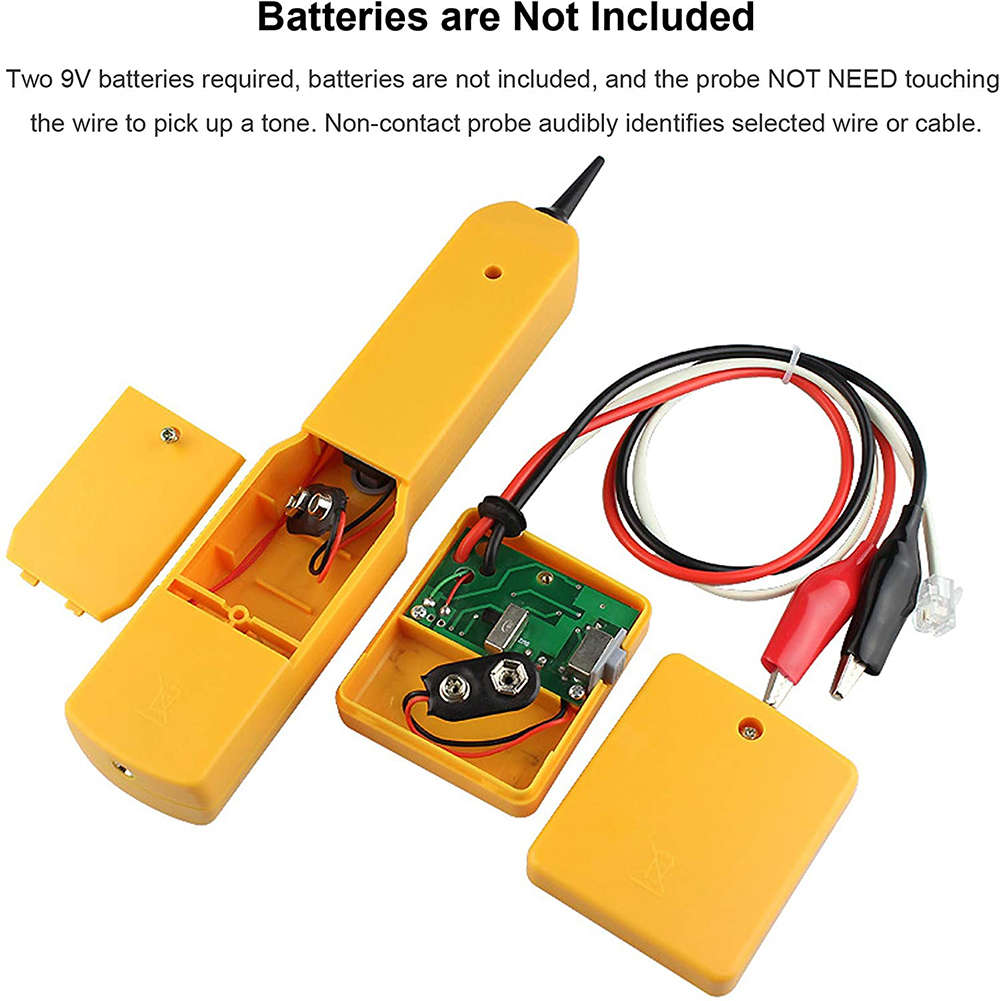

Two 9V batteries are not included in the package.
our electrical circuit tracer is not suitable for live circuit!
Different displays show the same picture may be slightly differences.
Package include:
1 x Cable Tracker Sender with RJ11 Cable
1 x Cable Tracker Receiver
