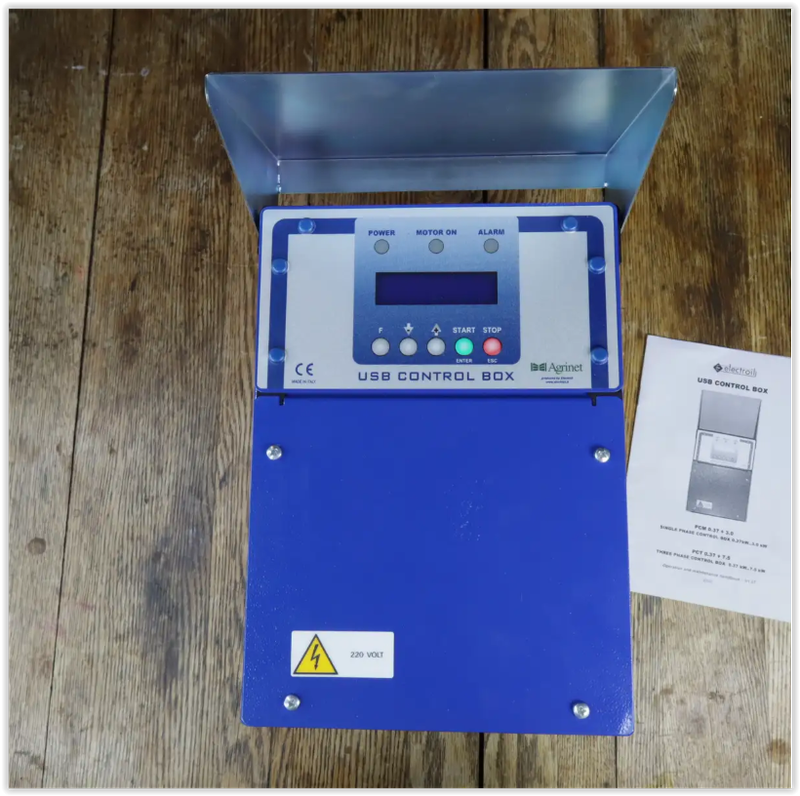

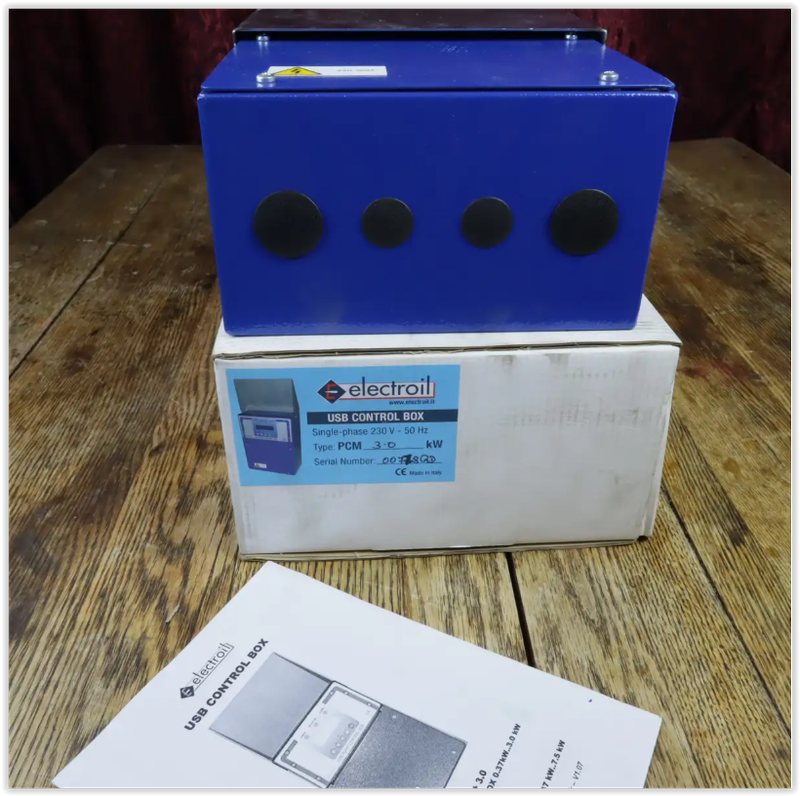

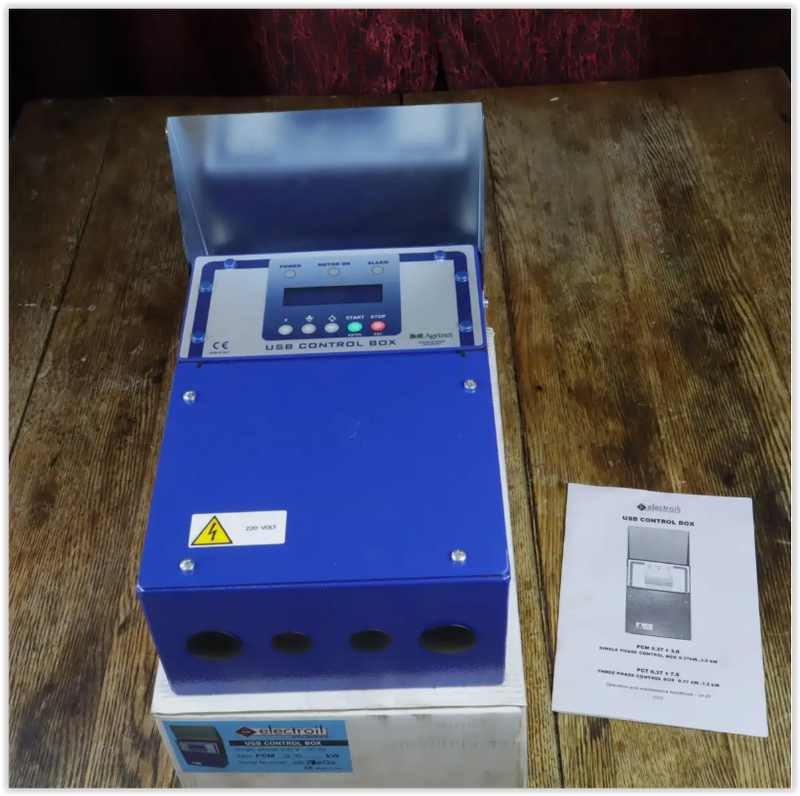

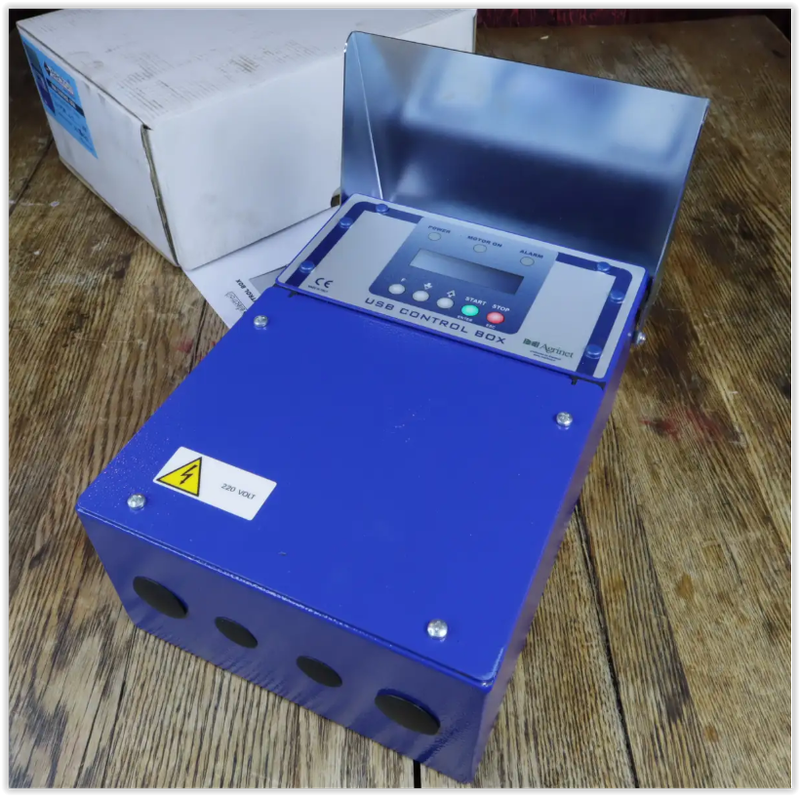

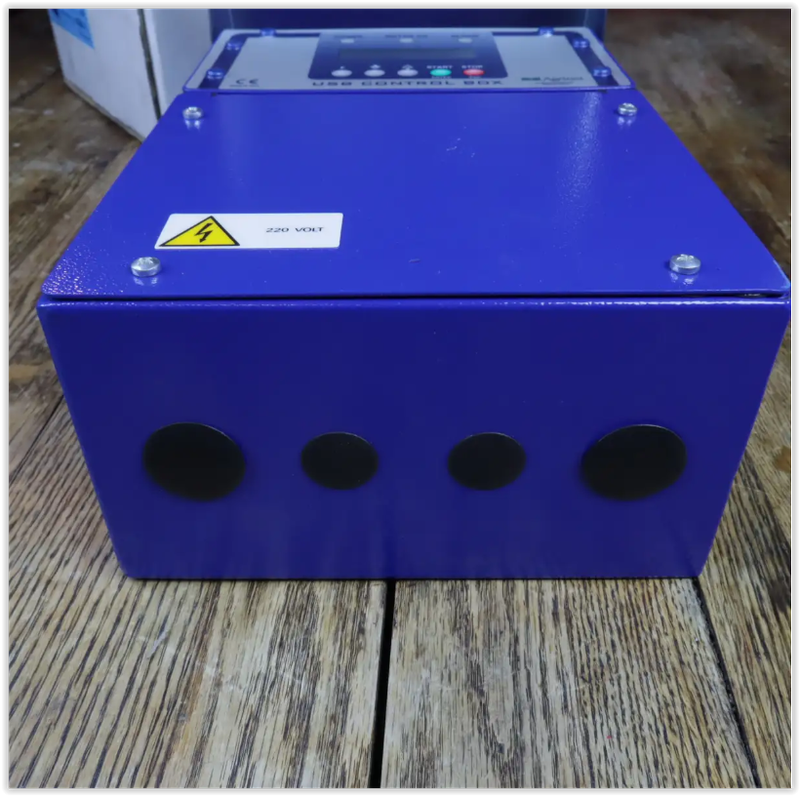

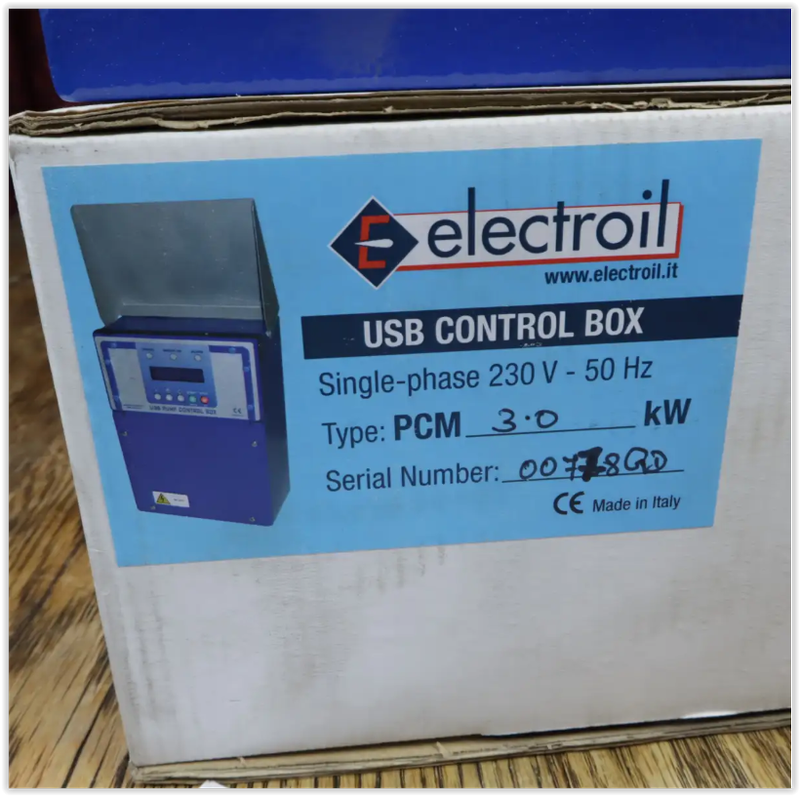

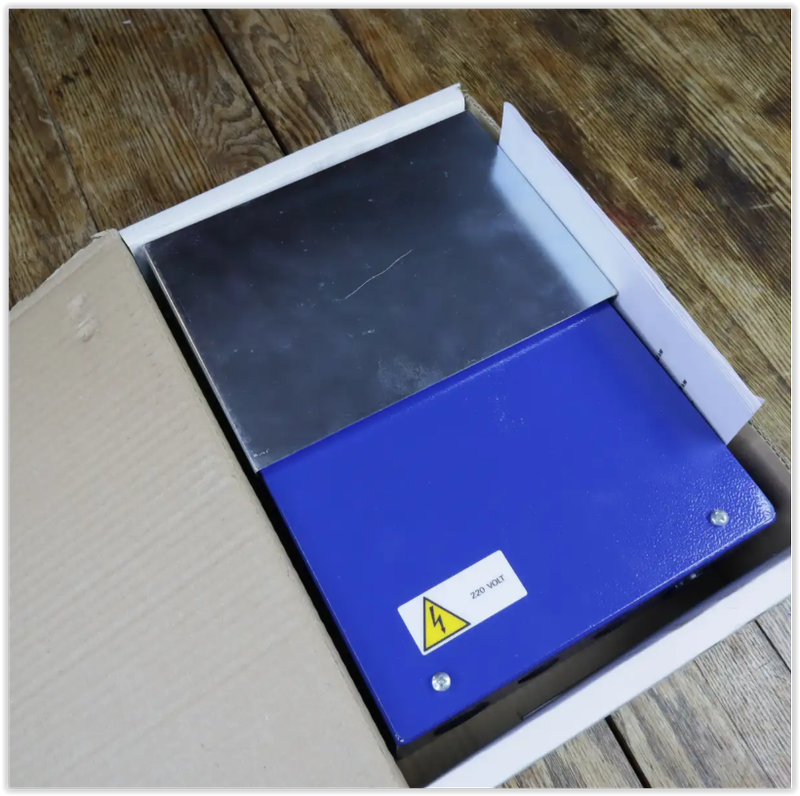

Electroil Borehole Inverter with USB Control Box PCM 3.0 control panel for Motor Control

USB Control Box is an electronic device designed specifically for the control and protection of industrial motors and single-phase and three-phase electric pumps, with perfect control of current, voltage and other electrical and hydraulic quantities such as pressure, flow, temperature, with various functions safety and security.

It guarantees protection of asynchronous motors in general and centrifugal electric pumps with the possibility of recording motor operation events and reading via USB connection.

Features:

Input & output: Single phase

Max motor-pump power: 3kW

Max output current: 23A

Degree of protection IP54

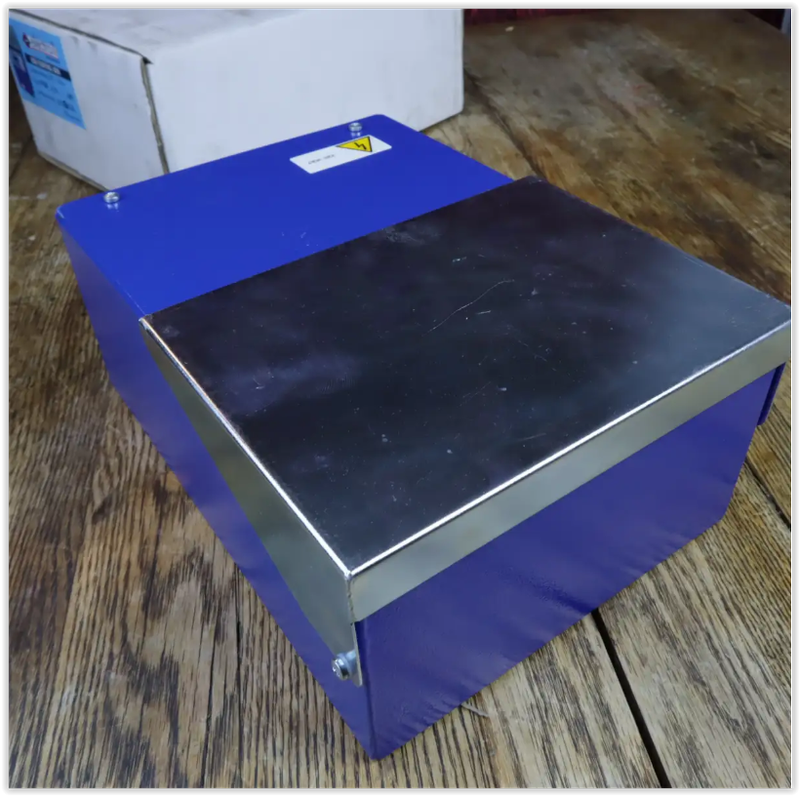

Screen protection plate to protect it from sunlight, dust and rain

Overvoltage protection up to 22 kA, 940 Joule with lights on to signal the ON state

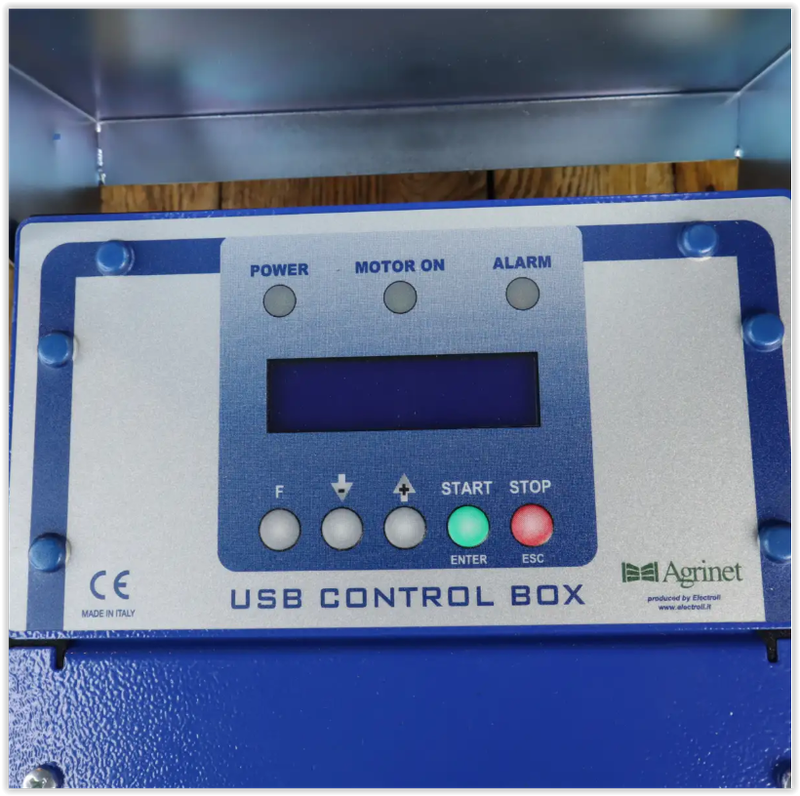

Blue backlit 16x2 character display to view all electrical and hydraulic operating data in real time

Simple calibrations to set the motor data to be checked and simple wall mounting

Remote control ON / OFF

Pressure control (pressure transducer not included)

Temperature control (PT100 temperature probe not included)

Flow control (pulse flow transducer not included)

Measurement of 3 separate currents for PCT7.5 and PCT132

Over-voltage, under-voltage and asymmetrical voltage protections

Overcurrent and current imbalance protections

Protection against high leakage currents (does not replace the differential circuit breaker)

Protections for electric pumps from minimum flow and dry running

Overpressure protection in electric pumps

Over-temperature protection

Continuous recorder mode of engine operating status

Alarm saving and analysis via USB and PC
