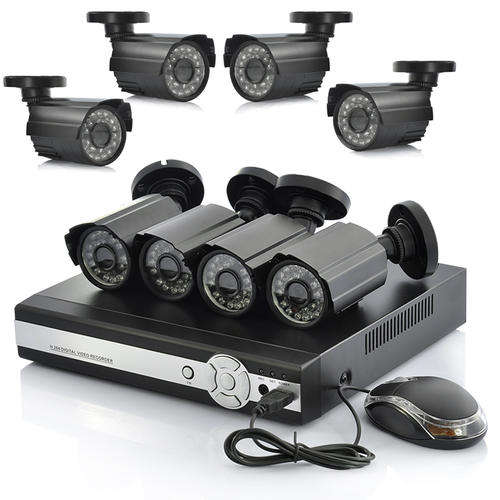

Electromann - 8 Camera DVR Surveillance System - 8 Outdoor CCTV Cameras, H264 DVR
The 8 robust outdoor cameras are weatherproof and designed to stand up against both blunt force and the force of nature. With 24 IR LEDs in each camera, turning on automatically at nights, you will have a night view of up to 20 meters and the H.264 video encoding lets you have crystal clear image. Featuring motion detection, you will be able to record any action in great quality around your premises without lifting a finger, day or night.
At a Glance...
8 Chanel DVR
8 Weatherproof 1/4 CMOS Outdoor Cameras
H.264 Video Compression
Multiple Recording Modes
Mobile Phone Support
Network Function
Manufacturer Specifications
DVR:
Recoding: 8CIF Real time
VGA: 1024x768
Video: 8CH BNC Input, 1CH TV Output, 1CH VGA Output
Audio:4CH RCA Input,1CH RCA Output
Encoding: CIF
Video compresion:H.264
Play back: 8CH at the same time
PTZ: 1x RJ485 Support PELCO-D,PELCO-P Procotol
USB: 2x Usb 2.0
Mobile phone: Support Iphone, Symbian OS, Black berry and Android operation systems
HDD Capacity: Up to 2TB SATA Interface HDD (not included)
Network Interface: 1x RJ45,100Mbps Ethernet
Upgrade: USB / Network
Media Backup: USB / Network
Camera:
Image Sensor:1/4 Inch CMOS
Signal System: PAL
Effective Pixels:PAL:648(H)x488(V)
Horizontal Resolution: 420 TVL
Lens: 3.6mm Lens
Min LUX: 0.1
Viewing angle: 60 degree
S/N Ratio: 48 dB (AGC off)/46dB (AGC off)
Minimum Illumination: 0 Lux/F=1.2
LED:5mm ×24pcs
Infrared Wavelength:850nm
IR Distance:20M
Electronic Shutter:1/50-1/80.000sec / 1/60-1/80.000sec
White Balance: Auto tracking white balance
Synchronization System: Internal
Infrared Lamps: Night Opening /Day Turn off
Video Output: BNC
Power Consumption: DC12V

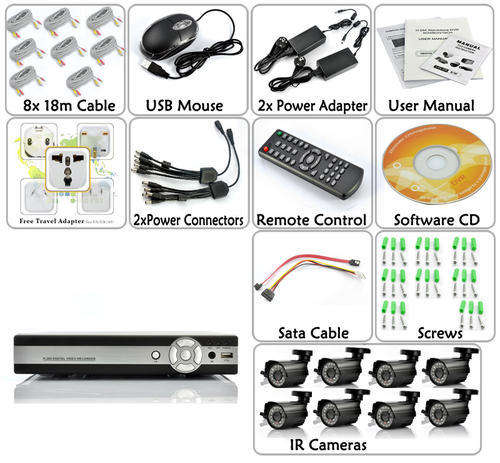

Package Contents
DVR
CD
Cables
Manual
2x Power splitters
2x Power adapter
2x Cable
Remote control
Mouse
8x Screws
8x Brackets
8x AV power cables
8x Outdoor Cameras
