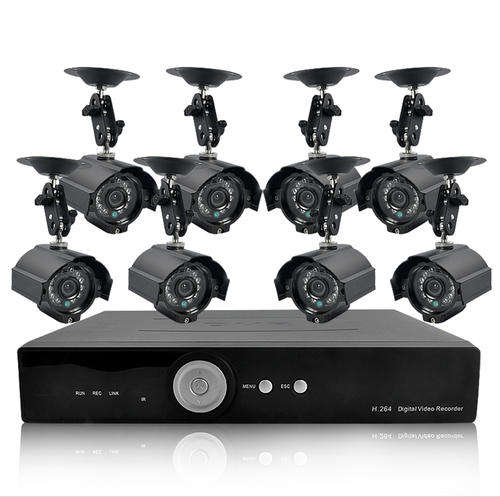

Electromann - 8 Camera Surveillance Kit - 8 Outdoor CCTV Cameras, H264 DVR, 1TB

Electromann - 8 Camera Surveillance Kit - 8 Outdoor CCTV Cameras, H264 DVR, 1TB

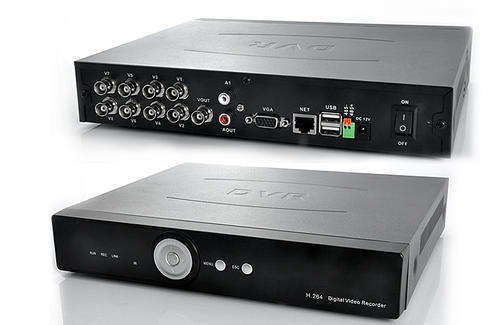

Manufacturer SpecificationsDVR SPECIFICATIONS

• Operating system: Embedded Linux
• Video recording standard: H.264, ADPCM
• Video display: Single camera or eight split screen
• Recording mode: Manual / Timer / Motion detection
• Hard Drive: Support one 2TB SATA HDD (1TB HDD included)
• Video systems: PAL/NTSC (Auto)
• Live Video Resolution: PAL: 704x576 NTSC: 704x480
• Video input (BNC): 8CH BNC input (composite video signal 1Vp-p 75ΩBNC)
• Video Output ï¼ÂˆBNCï¼Â‰: 1CH BNC output/1CH VGA
• Audio Input/output: 1CH audio input, 1CH audio output (RCA)
• PTZ function support: YES
• Motion detection support: YES
• Network function support: YES
• Mobile phone browsing support: YES
• RS485 port: 1 (PTZ control)
• Support VGA Interface: Yes, VGA output
• Power Source: DC 12V 4A
• RJ-45 network adapter: 1
• USB 2.0 ports: 2 (mouse, keyboard, flash drive, external HDD)

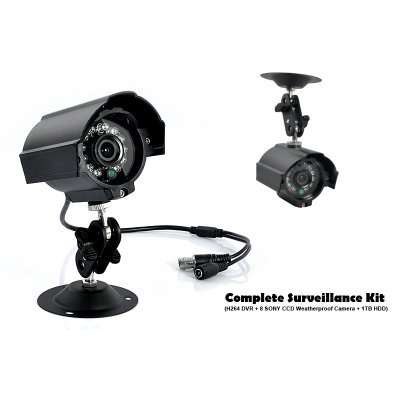

IP CAMERA SPECIFICATIONS

• Security Camera Type: Weatherproof Camera
• Weatherproof: IP66
• Image sensors: Premium 1/3 inch color SONY CCD (Weatherproof)
• TV Lines: 420TV line
• Color System: PAL
• Infrared Sensor: 12 IR LED
• Viewing Angle: 45 degree
• Minimum Illumination: 01 Lux
• Cable Length: 18 M

NETWORK SPECIFICATIONS:

• Network protocol: TCP/IP, UDP, DHCP, DNS, PPPOE, DDNS (supply BUILT-IN DDNS domain name)
• Connection: RJ-45 Port (10/100M)
• IP address: Static / DHCP
• Remote browsing: Internet Explorer
• Viewing Option: Single/8ch Simultaneous
• Remote capture: Image / Video
• Capture format: H.264 MP4
• Certifications: CE, FCC, RoHS

Product Notes

• Remote recording and snapshot control via Internet
• Alarm trigger events include Motion Detection, Sensor Triggered, Video Loss, HDD Error
• You can easily change the BNC connection to an RCA AV type with a simple BNC to RCA coupler adapter.
• Network video surveillance is through Internet Explorer only. You will need to turn on the Active X control for the browser to download a small Active X component to view the live video.
• This DVR unit is compatible with all BNC connector security camera types.

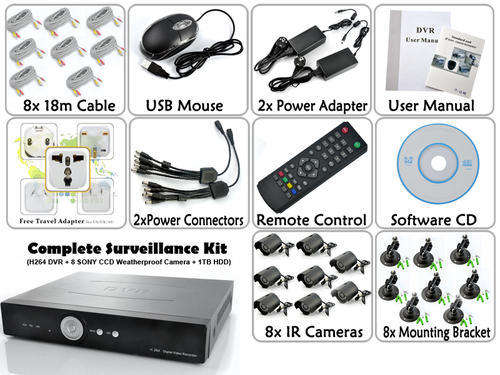

Package Contents

• Digital Video Recorder unit
• Cameras x8
• Power connectors
• 18 meter BNC Cable x8
• 12V/4A Power Supply x2
• Remote Control
• Mouse
• Power Connector
• User Manual - English

FAQ - Frequently Asked Questions

• Why can't I view the control page from my FireFox browser?
  For best results, please use Internet Explorer (with Active X enabled) or the provided evaluation software.
• Do the four cameras have audio?
  The camera itself cannot record audio, but you can connect an external mic for audio recording.
• I noticed that the video systems listed for the DVR unit are PAL and NTSC. Yet the camera color systems are only PAL. Is this a mistake?
  No, the DVR unit supports both types of signals in that it is compatible with many different types of cameras. The SONY cameras included in this kit are of the more popular PAL type in the event you wish to use the cameras as standalone devices.
• Do I have to turn night vision on manually?
  No. This camera has a light sensor that detects light levels. It switches to IR mode automatically.
