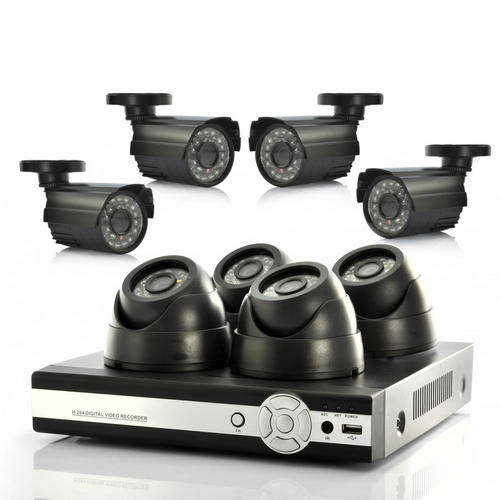

Electromann - 8 Camera Surveillance System - 4 Indoor CCTV Cameras, 4 Outdoor, H264 DVR

If you are looking for many security cameras at a low price, then this fully integrated mini 8 channel DVR surveillance security system is more than enough to safely keep an eye on your premises, featuring 4 indoor cameras and 4 outdoor cameras allowing anyone to securely monitor both inside and outside their business premises, offices or home!

Easy installed, this 8 channel mini DVR surveillance system with 4 indoor and 4 outdoor cameras features a handy remote control, making this simple to control. Connect the DVR to your monitor and choose any camera to watch on your monitor or view all eight of them simultaneously, if you prefer. Featuring motion detection, you will be able to record any action in great quality around your premises without lifting a finger, day or night.

This 8 channel mini DVR surveillance system with 4 indoor and 4 outdoor cameras comes with robust, highly durable and weatherproof outdoor cameras, designed to stand up against both blunt force and the force of nature. All 8 cameras include IR nightvision LED lights, which automatically activate at night, keeping you continuously protected.

At a Glance...

• H.264 Video Compression
• 4x Outdoor Cameras and 4x Indoor Cameras
• Self-recovery System
• Motion Alarm and Video Loss Alarm
• Multiple Recording Modes
• Mobile Phone Support



Manufacturer Specifications

• 8 Channel DVR Security System with Cameras
• Display Frame Rate: PAL: 100 fps
• Playback Resolution:
• -PAL: CIF(352x288), HD1(704x288), D1(704x576)
• Total Recording Frame Rate
• -PAL: 25fps@D1, 50fps@HD1, 100fps@CIF
• Recording Mode: Always / schedule / motion detection / sensor triggered
• Recording Pack Time: 15/30/45/60mins selectable
• HDD Interface: Support SATA HDD & USB disk (not included)
• Network Interface: RJ45, 10M/100M
• Network Protocol: Support TCP/IP, UDP, DHCP, DNNS, PPPoE
• Network Function: Support to live view with IE & with Mobile phone
• USB 2.0: USB mouse, USB disk (backup)
• Playback Mode: Normal play, fast forward, fast rewind, frame by frame
• Recording: 8 CIF Real time
• VGA: Support: 1024x768
• Video: 8CH BNC Input 1CH TV Output 1CH VGA Output
• Audio: 4CH RCA Input,1CH RCA Output
• Alarm: NO
• Video Standard: h.264
• Encoding: CIF
• Play back: 8CH at the same time
• PTZ: 1xRJ485 Support PELCO-D, PELCO-P Procotol
• USB: 2 x USB 2.0
• Mobile phone: Support Iphone, Symbian OS, Blackberry and Android operation system Mobile Phone
• HDD Capacity: Up to 2TB, SATA Interface HDDx1
• Network Interface: 1x RJ45, 100 Mbps Ethernet
• Media Backup: USB/Network
• User Extend: Custom boot screen by user
• Camera
• Image Sensor: 1/4" CMOS
• Signal System: PAL
• Effective Pixels: PAL: 648(H) x 488(V)
• Horizontal Resolution: 420 TVL
• Lens: Build with 3.6mm Lens
• Viewing angle: 60 degree
• Minimum Illumination: 0Lux/F=1.2
• Infrared Wave length: 850nm
• IR Distance: 20M
• Electronic Shutter: 1/501/80.000sec / 1/60ž1/80.000sec
• White Balance: Auto tracking white balance
• Synchronization System: Internal
• Infrared Lamps: Auto
• Video Output: BNC
• Power Consumption: DC12V

Package Contents

• Mini DVR
• User Manual
• CD
• Sata Cables
• Remote Control
• 2 x Power Cables
• 2 x Power Adapter
• Mouse
• 2 x Power Splitters
• Bags of Screws
• 4 x Dome Cameras
• 8 x BNC & Power Cables
• 4 x Outdoor Cameras
