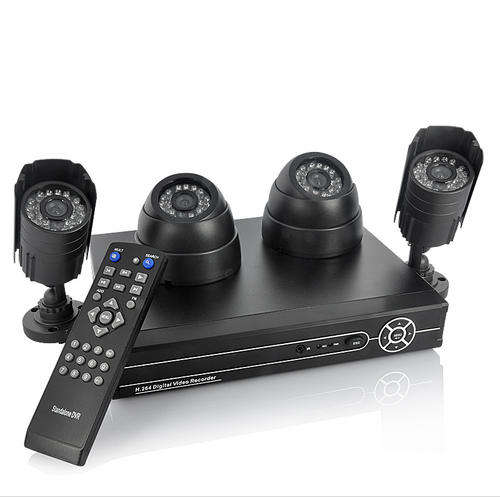

Electromann SA - Complete DVR Surveillance System with 2x Indoor + 2x Outdoor Cameras (H.264)

At a Glance...

• H.264 video compression
• 2x outdoor cameras and 2x indoor cameras
• Self-recovery system
• Motion alarm and video loss alarm
• Multiple recording mode
• Mobile phone support

Manufacturer Specifications

• DVR
  Video System: NTSC / PAL
  Operation System: Linux
  Video Input / Output:BNC 4-channel inputs / 1-channel outputs
  Audio Compression: 8kHz*16bit ADPCM
  Audio Input / Output: RCA 1-channel inputs / 1-channel outputs
  Display Frame Rate:NTSC: 120 fps / PAL: 100 fps
  Playback Resolution:
  -PAL: CIF(352x288), HD1(704x288), D1(704x576)
  -NTSC: CIF(352x240), HD1(704x240), D1(704x480)
  Total Recording Frame Rate
  -PAL: 25fps@D1, 50fps@HD1, 100fps@CIF
  -NTSC: 30fps@D1, 60fps@HD1, 120fps@CIF
  Recording Mode: Always / schedule / motion detection / sensor triggered
  Recording Pack Time: 15/30/45/60mins selectable
  HDD Interface: Support SATA HDD & USB disk (not included)
  Network Interface: RJ45, 10M/100M
  Network Protocol: Support TCP/IP, UDP, DHCP, DNNS, PPPoE
  Network Function: Support to live view with IE & with Mobile phone
  USB 2.0: USB mouse, USB disk (backup)
  Playback Mode: Normal play, fast forward, fast rewind, frame by frame
  PTZ: None
  Backup: USB flash disk, USB disk, USB CD/DVD-RW & Network
  PTZ Control: Built-in RS485, support PELCO-P & PELCO-D
  Alarm Mode: Motion, Sensor, video loss, HDD error, HDD full
  Power Supply: DC 12V/4A (power adaptor included)
  Working Temperature: -10°C to +40°C
  Power Consumption: 10~15W
  Supports Symbian/Windows Mobile/iPhone/Blackberry/Android viewing
• Camera
  Image Sensor: 1/3“ CMOS
  Lens: 6mm F:2.0
  Video System: PAL
  Effective Pixels: PAL:500(H) x 582(V); CCIR:752(H) x 582(v); EIA:768(H) x 494(V)
  Resolution (Horizontal): 400 TVL
  Weatherproof outdoor cameras: IP66 (indoor dome camera not weatherproof)
  Emitter Wave Length of LED: 850nm
  IR Series Distance: 10 meters (IR LEDs ON)
  IR Power ON: CDS automatic control
  White Balance: Auto
  Viewing angle: 60 degrees
  Back Light Compensation: Auto
  Min. Illumination: 0.2Lux @ F2.0, 0 Lux (IR LED ON at night)
  Electronic Shutter: 1/50 (1/60) ~ 100,000 Sec.
  S/N Ratio: More than 48dB (AGC OFF)
  Power Consumption: Less than 3W
  Synchronization: Internal Sync
  Gamma Correction: 0.45
  Video Output: 1 Vp-p @ 75O
  I/O Port: Video (BNC Jack) / Power (DC Jack)
  Power Supply: DC12V/150mA
  Operating Temperature: -10 ~ 80°C


Package Contents

• DVR
• Power Adapter Cable
• Power Adapter
• Power and BNC Cable
• 2x User Manual
• CD
• 5 to 1 Power Splitter
• 2x Bags of Screws and Mounts
• Mouse
• Remote Control
• 2x Indoor Cameras
• 2x Outdoor Cameras
