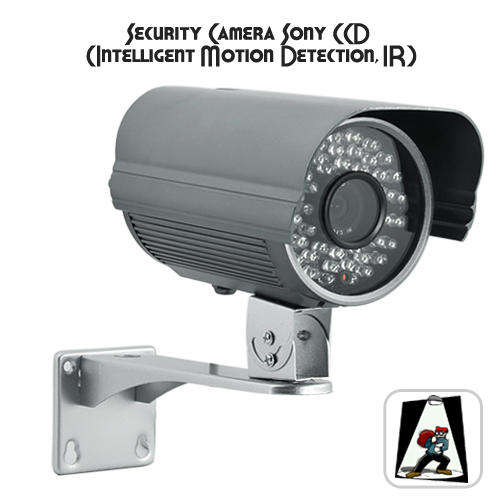

Electromann SA - Security Camera with 1/3 Inch Sony CCD - Intelligent Motion Detection, IR

• Security Camera
• 1/3 Inch CCD Sony Video Sensor
• Intelligent motion detection
• Easy to install and position
• Motion activated photo capture
• Heavy duty die-cast aluminum casing
• Able to withstand all weather conditions
• 48 IR LED's for extra powerful night vision



Specifications

• Primary Function: Security Camera Sony CCD (Intelligent Motion Detection, IR)
• Video Format: PAL
• Image Sensor: 1/3 inch SONY CCD
• Scanning System: (PAL) 420 Lines
• Scanning Frequency:
  - PAL - 15.625KHz (H) / 50Hz
• Electronic Shutter Speed:
  -PAL - 1/50 - 1/100,000
• Viewing Distance:
  - Daytime: up to 150 meters
  - Nighttime (IR): up to 80 meters
• Onboard Parameters:
  - Menu Control Buttons (up, down, left, right, menu, esc)
  - Sun Shield
  - SD Card Slot: 16GB max (not included)
• Zoom: Yes, Auto
• Focus: Yes, Auto
• Effective Pixels: PAL: 510 (H) x 492 (V)
• Sync System: Internal
• Resolution: 420 TV Lines
• Picture Capture: Yes, 720x576 JPG
• White Balance: Automatic
• S/N Ratio: >48db
• Audio: None
• Minimum LUX
• 0.3 Lux For Color / 0.0 Lux Under IR LED
• Number of LED's: 48
• Lens: 6mm F1.2
• Operating Temperature: -10 to +50 Degrees Celsius
• Video Output Connection Type: BNC (can change with adapter - not included)
• Power: Universal power adapter (100-240V)
• Settings:
  - Max Zoom: 2X, 4X, 10X
  - SD card Overwrite: ON/OFF
  - Intelligent motion detection: ON/OFF
  - Photo Quality: Low, Medium, High
  - Motion Detection Sensitivity: 0-6
  - Motion Detection Photo Capture: ON/OFF
  - Image Control: Brightness, Contrast, Saturation
• Dimensions:
  - Mounting Bracket: L:165 x W:38 (mm)
  - Camera: L:127 x Diameter: 83 (mm)
  - Hood: L:165 x W:98 x H:63 (mm)

Product Notes

• Provides you with 24/7 security
• Switching between night vision is completely automatic
• You can easily change the BNC connection to an RCA AV type with a simple BNC to RCA coupler adapter
• This video surveillance product should be setup and installed by an experienced user/professional for optimal performance. Electromann SA, does not provide installation services.

Package Contents

• Security Camera with Sony CCD (Intelligent Motion Detection, IR)
• Mounting Hardware
• Power Adapter (100-240v)
• Manual - English
