Description:

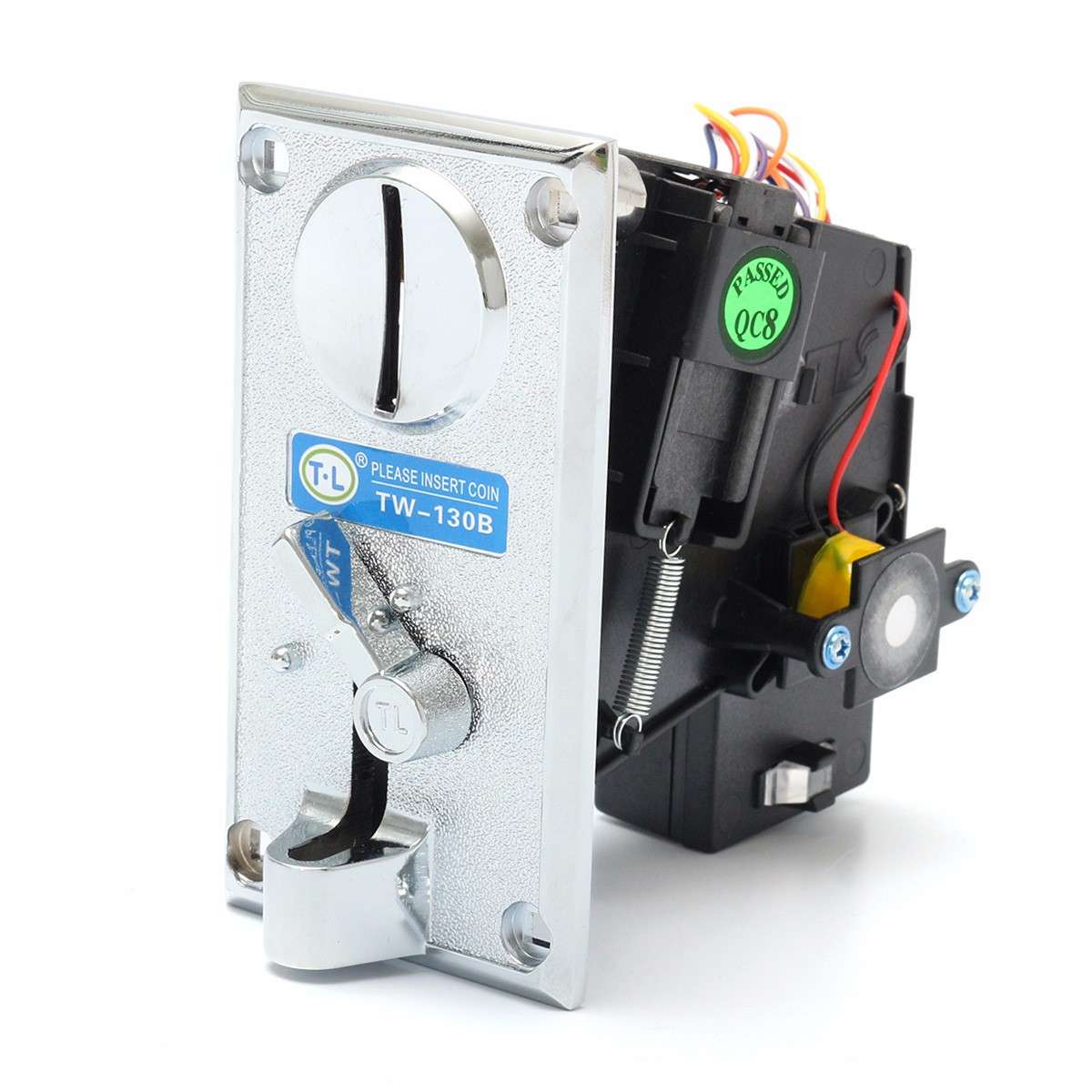

Electronic Arcade Game Parts Coin Selector Acceptor can accepts coins based on the diameter and thickness.
Specifications:
| Material | Alumium Alloy + Plastic |
| Color | Black + Silver |
| Application Coins Diameter | 22mm~28mm |
| Application Coins Thickness | 1.7mm~2.2mm |
| Working Voltage | DC 12V |
| Working Current | 60mA~1.3A |
| Working Temperature | -15~50 Degree |
| Coin Signal Output | O.C.(open collector) Type |
Features:
- Accepts coins based on the diameter and thickness
- Capable of accepting a wide variety of coins or tokens
- Controlled by CPU program
- Precise/normal switch ensures quick, smooth coin insertion
- Special design for anti-EMI (electromagnetic interference)
- Back cover opens for convenient cleaning and maintenance
Usage:
1.Removing the plastic coin from the coin groove and insert the using coins.

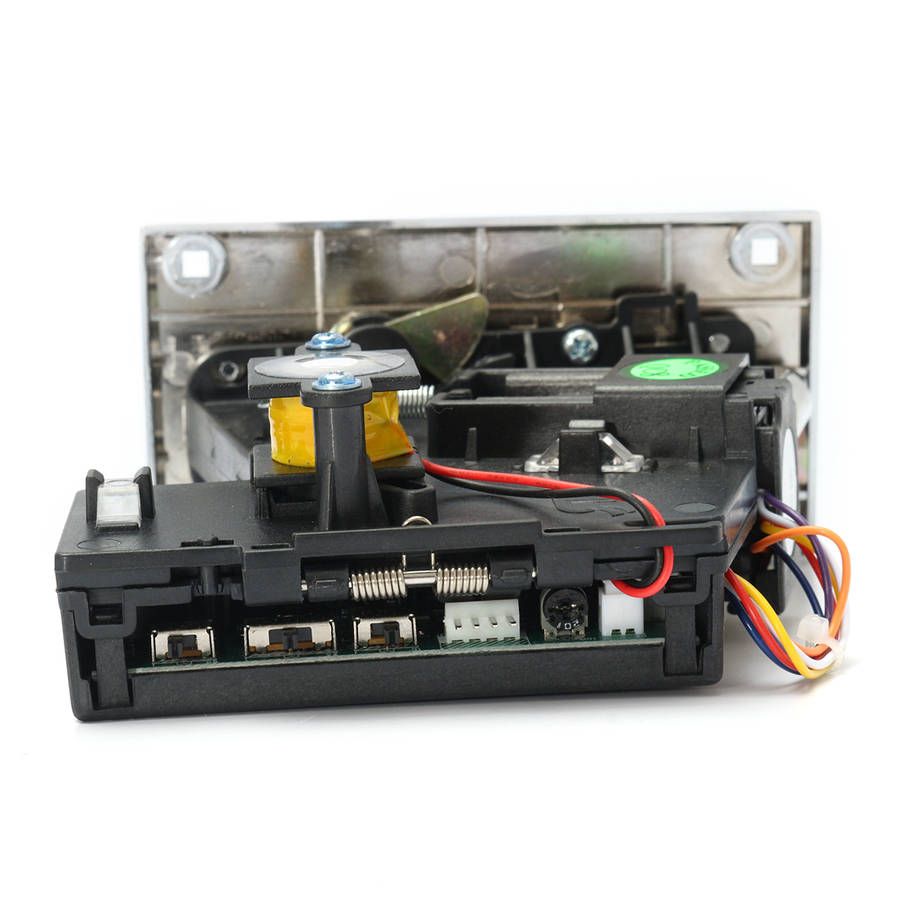

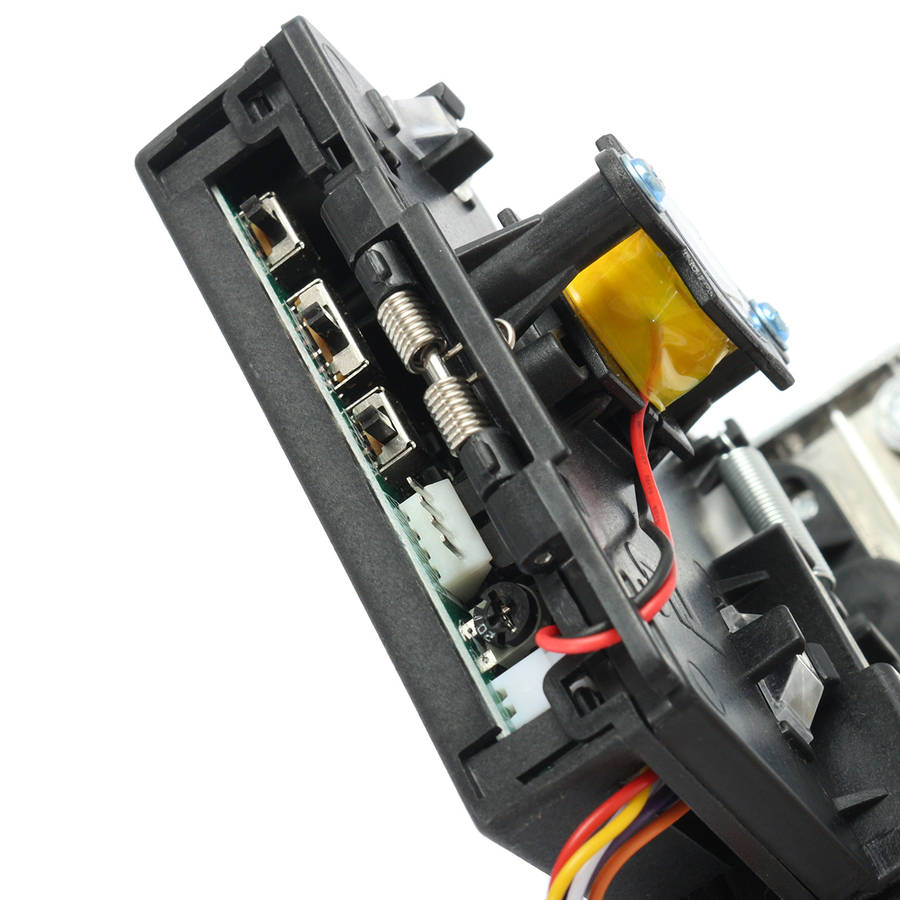

2.Changing COIN SW1 according to the main board. PC board with revolving lamp normally use NC,
other PC board use NO.
3.Changing according to the main board. Fast 25ms and Medium 50ms normally suit for common game
machine, slow 100ms suit for amusement machine.

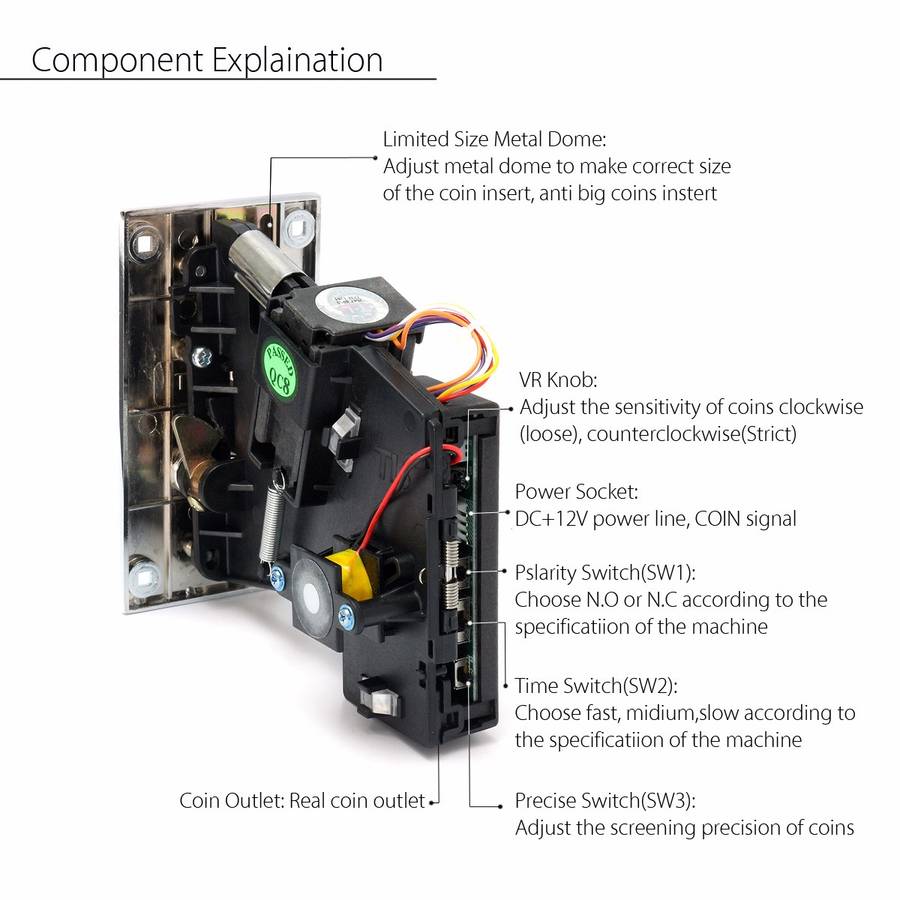

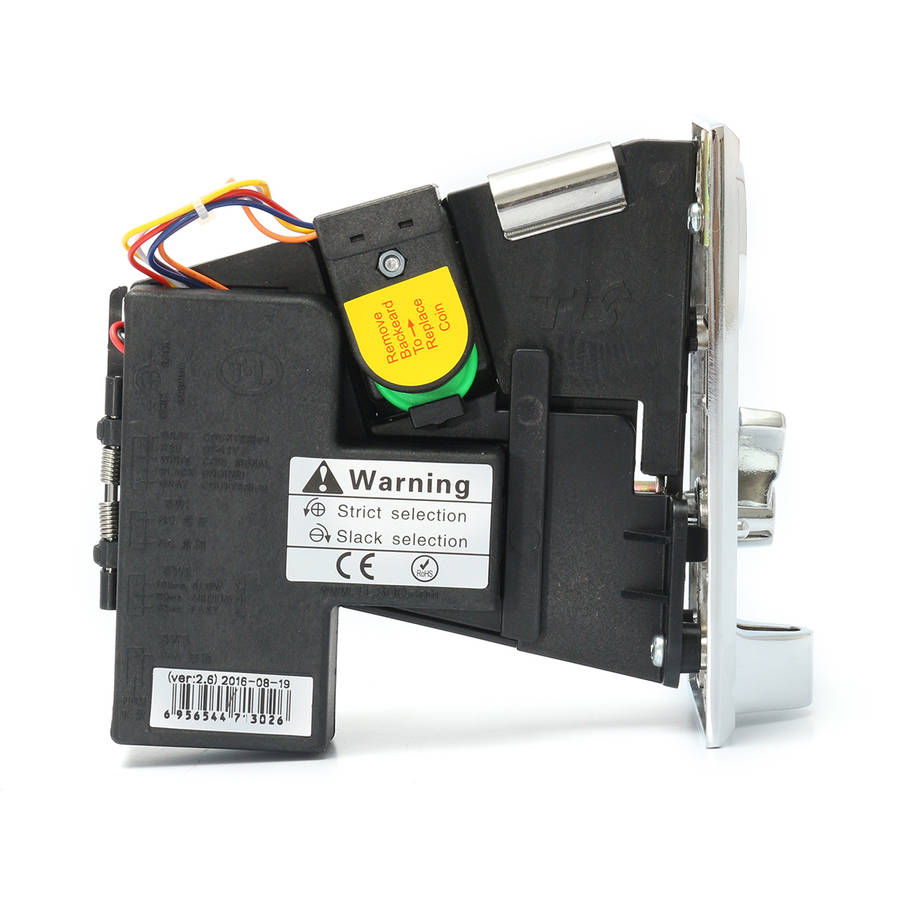

4.VR knob is used to adjust the sensitivity of the coin acceptance. Clockwise turning is a slask selection,
the counterclockwise a strick selection. Generally, it had been adjusted in the factory.
5.If find the coin pass unsmooth, please adjust the precision switch, or turn the VR knob to the suitable direction.
Wiring Setting:
Two Grey Line - Counter
Red Line - DC 12V
White Line - Coin Singal
Black Line - Ground Line

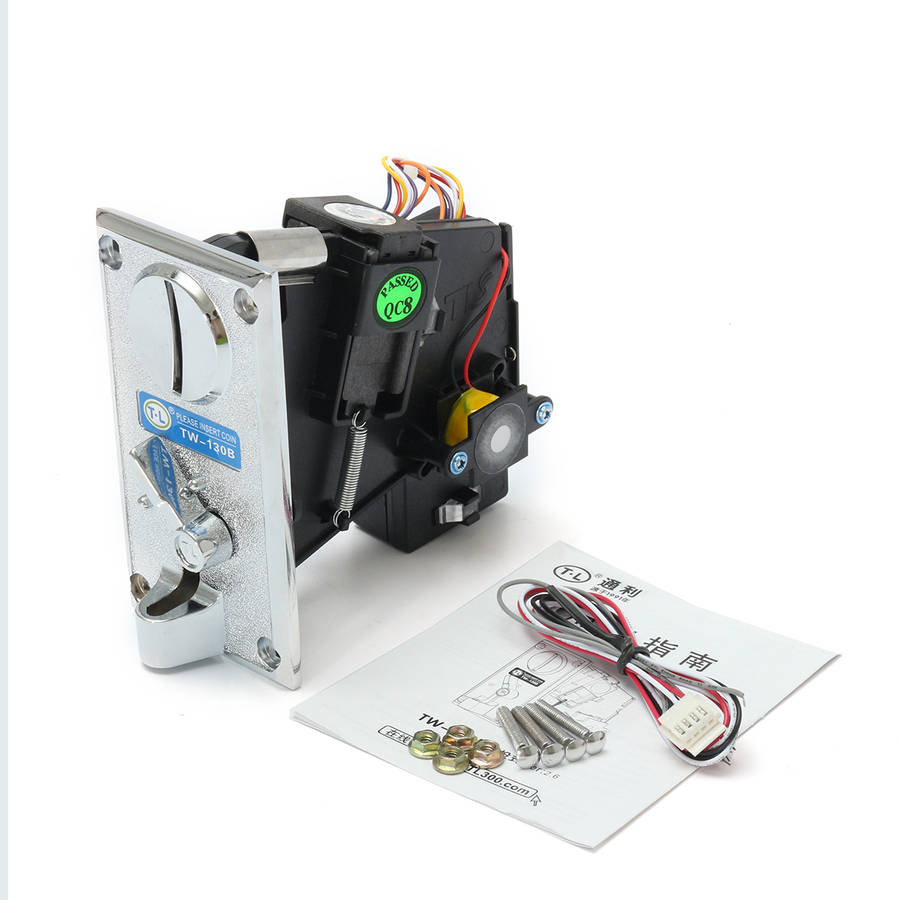

Package Included:
1 x Arcade Game Coin Acceptor
1 x Screws Kit (8 Pcs)
1 x 4P Winding Cable
1 x User Manual
