Electronic Scale Weighing Acquisition Module Sensor Transmitter Weight Am... (TYPE: TTLSERIALOUTPUT)

SELECTED OPTION:
TYPE: TTLSERIALOUTPUT

TTL Serial output:
RS485 Serial output:

Parameter :

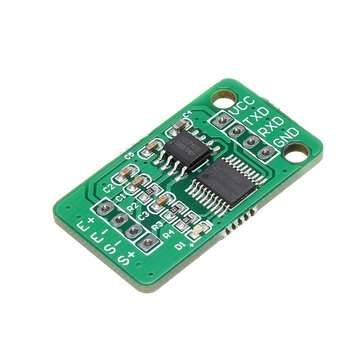

The module is a bare board, without headers and headers. The holes are 2.54mm standard pitch. Sensor excitation voltage: DC 5V Input signal range: ±20mv AD chip: 24-bit precision; (different batches of AD chips may be different, but the 24-bit precision is unchanged.) Resolution: >10000 Sampling rate: 10HZ or 40HZ can be set Network communication: support The functions of baud rate, division value, zero tracking range, median filter, average filter, dynamic tracking, creep tracking, etc. are integrated internally.
Package included:
1 x Electronic Scale Weighing Acquisition Module
