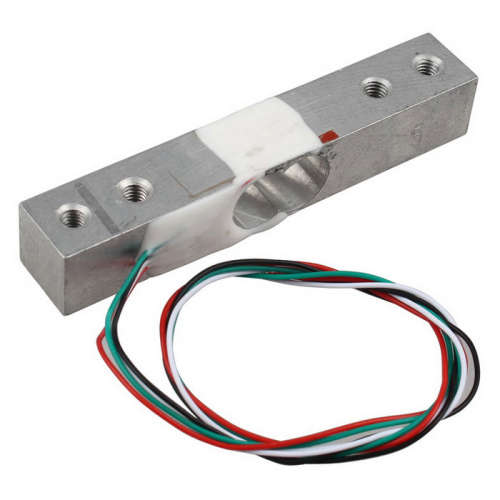

Electronic Scale Weighing Sensor Load Cell Weight 1Kg for Arduino
Rated Load: 1Kg
Rated Output: 1.0mV/V±0.15mV/V
Zero Output: ±0.1mV/V
Creep: 0.03%F.S./30min
Input End: Red+ (power), Black-(power)
Output End: Green+(signal), White-(signal)
Recommended operating voltage: 3~12V DC
Maximum operating voltage: 15V DC
Input Impedance: 1115±10%Ω
Output Impedance: 1000±10%Ω
Protection class: IP65
Total Size: approx.: 80mm x 12.7mm x 12.7mm
Cable: 0.8 x 20 cm (diameter x length)
Material: Aluminum Alloy
This item is available in stock and is not drop shipped. This avoids delays, customs and extra VAT.
