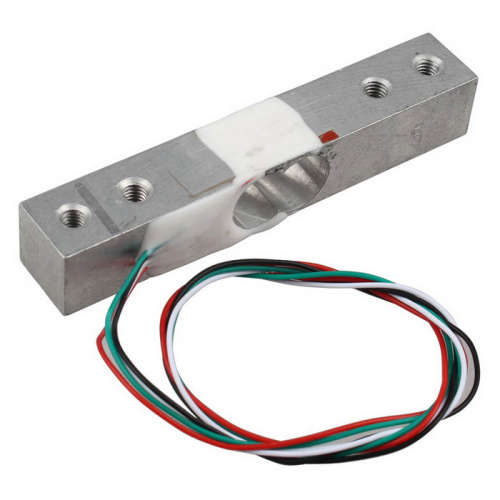

Electronic Weight Weigh Sensor Load Cell 10Kg for Arduino ***LOCAL STOCK***

Electronic Scale Weighing Sensor Load Cell Weight 10Kg for Arduino

• Capacity:10KG
• Rated output:1.0±0.15 mV/V
• Nolinearity:0.05%
• Repeatability:0.03%
• Hysteresis:0.03%
• Creep(5min):0.1%
• Temperatue effect on zero:0.02%RO/¿
• Zero balance:±0.1%RO
• Input resistance:1066±20Ω
• Output resistance:1000±20Ω
• Insulation resistance:2000MΩ¿50V¿
• Recommended excitation voltage:5V
• Operating temperature range:-20¿~65¿
• Safe overload:150%RO
• Load cell material:Aluminium
• Connecting Cable:0.8*180mm
• Method of connecting wire:Red(input +),Black(input -),Green(Output +),White(output -)

This item is available in stock and is not drop shipped. This avoids delays, customs and extra VAT.
