EleksMaker 25cm Multifunctional PCB Ruler Electronic Measuring Tool Resistor Capacitor Chip IC SMD D

20 available / new

R366.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3532

93.44 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

643378927

Description:

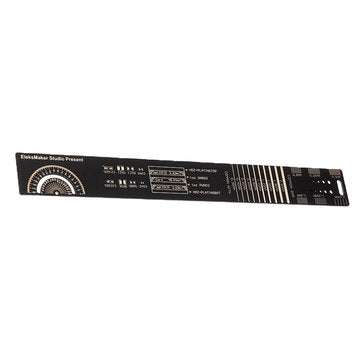

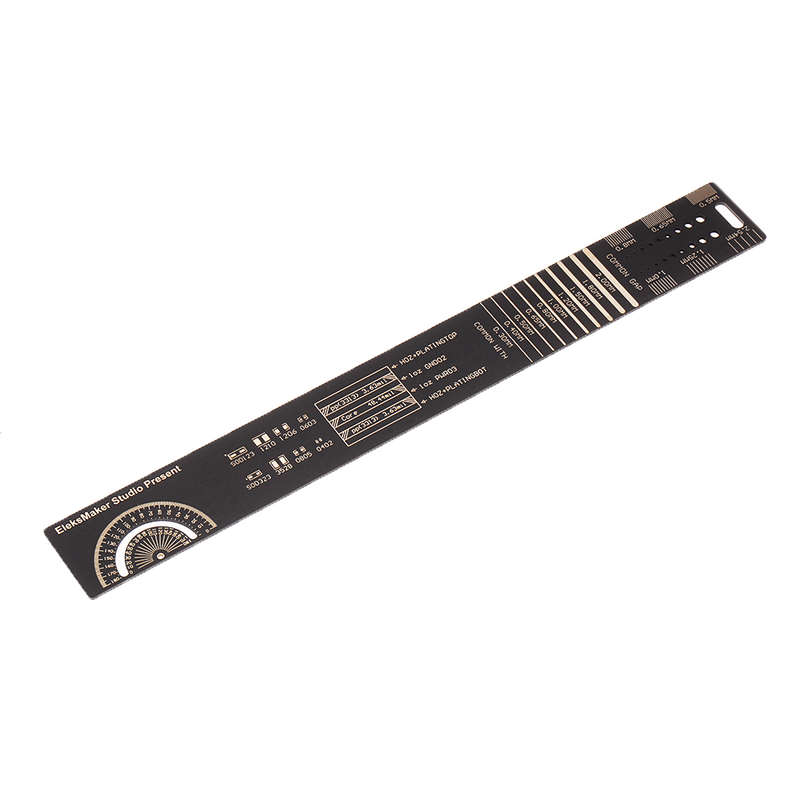

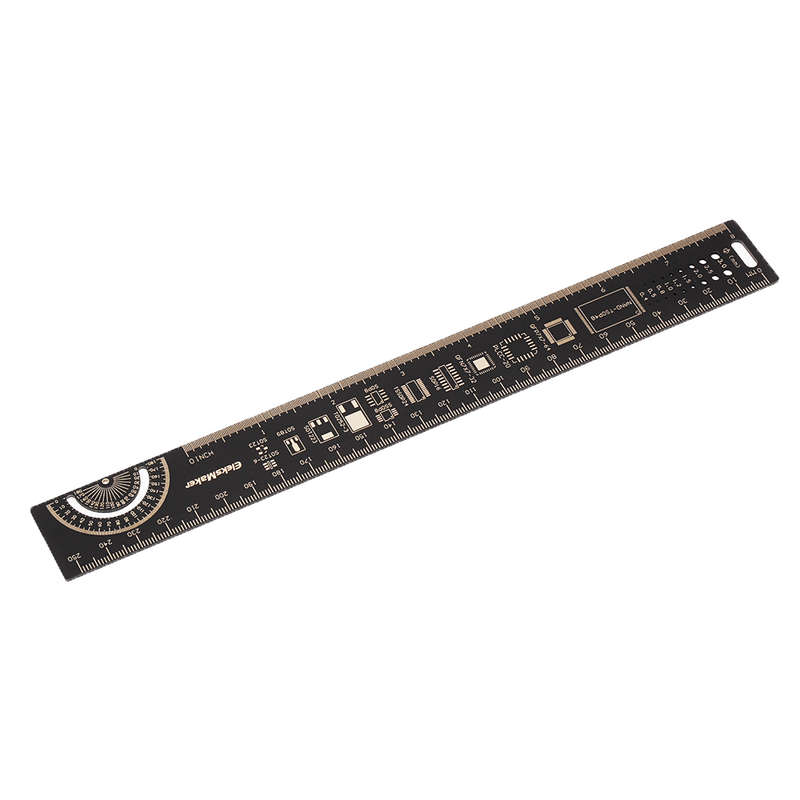

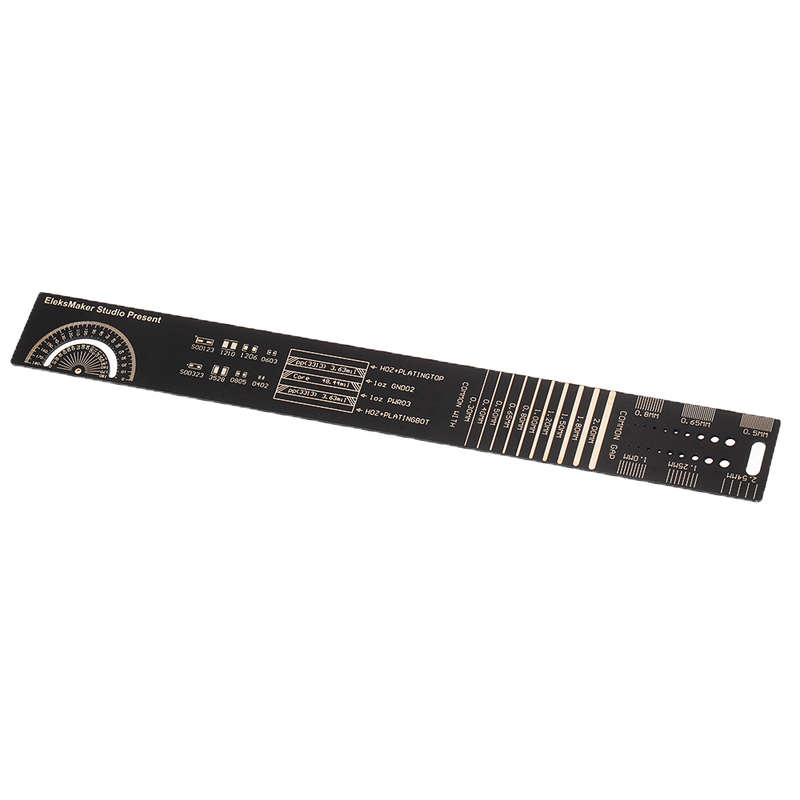

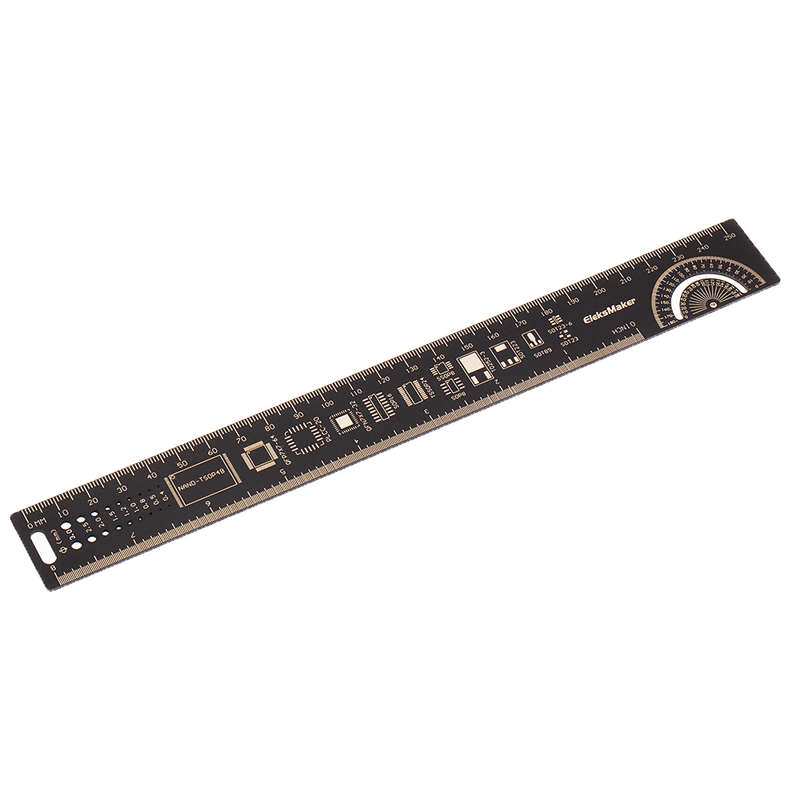

This EleksMaker 25cm PCB ruler integrates relevant information for PCB design such as angle gauges, devices, IC pin spacing tables, and more.

Specification:
Brand: EleksMaker
Material: Metal
Color: Gold + Black
Length: 25cm
Centimeter Side:0.1cm Marks
Angle Measurement: 180 Degrees

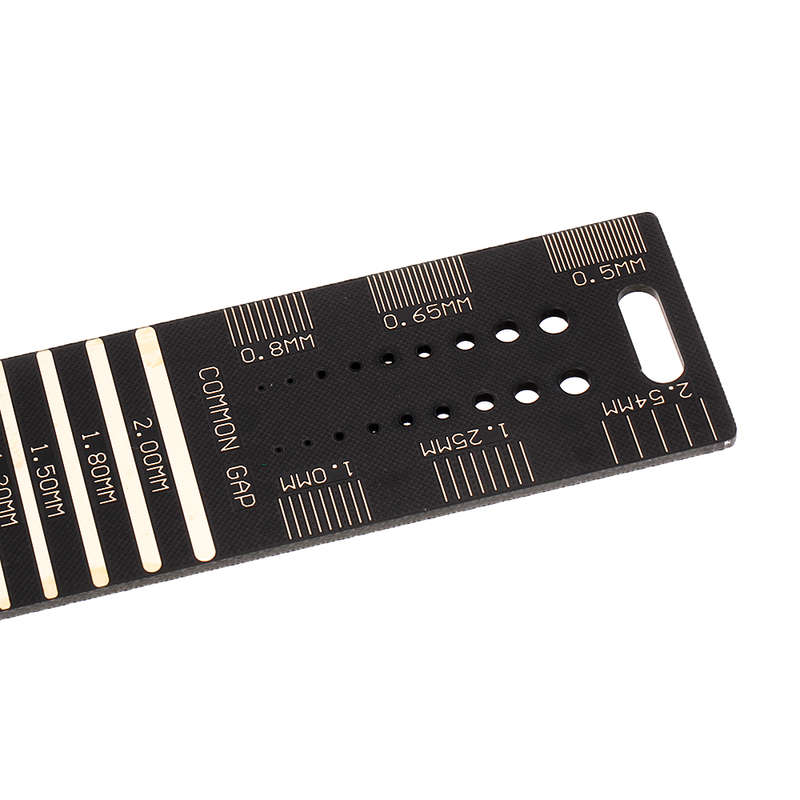

Device, IC pin spacing table: 0.5mm, 0.65mm, 0.8mm, 1.0mm, 1.25mm, 2.54mm

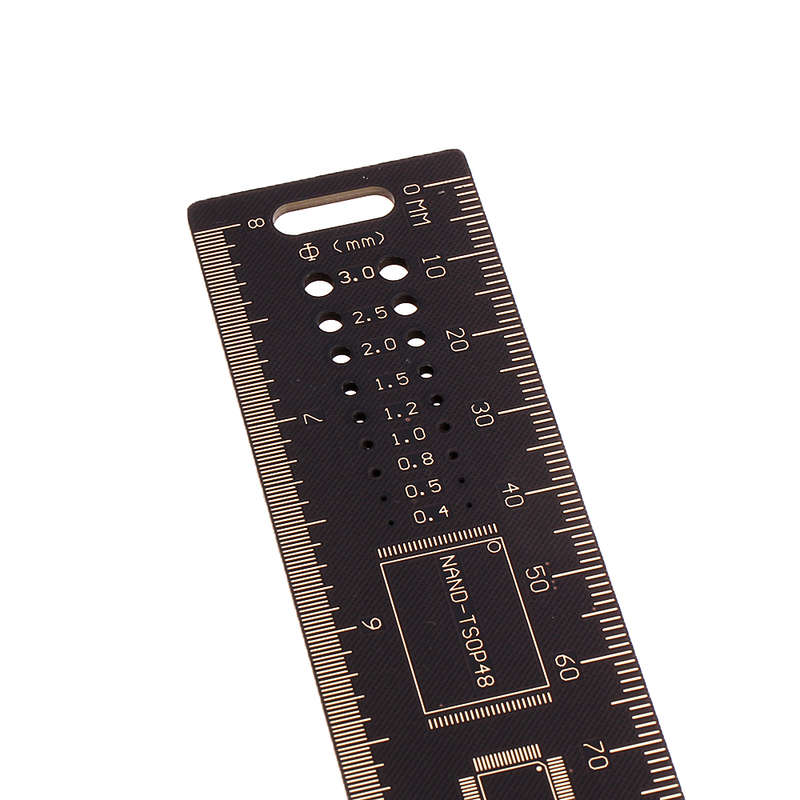

Common Bore Diameter Reference Dimensions (unit: mm): 3.0 2.5 2.0 1.5 1.0 0.8 0.5 0.4
Commonly Used IC package:
1.NAND_FLASH_TSOP48
2.QFP7X7-64
3.PLCC-20
4.SOP16
5.TSSOP24
6.SSOP8
7.SOP8

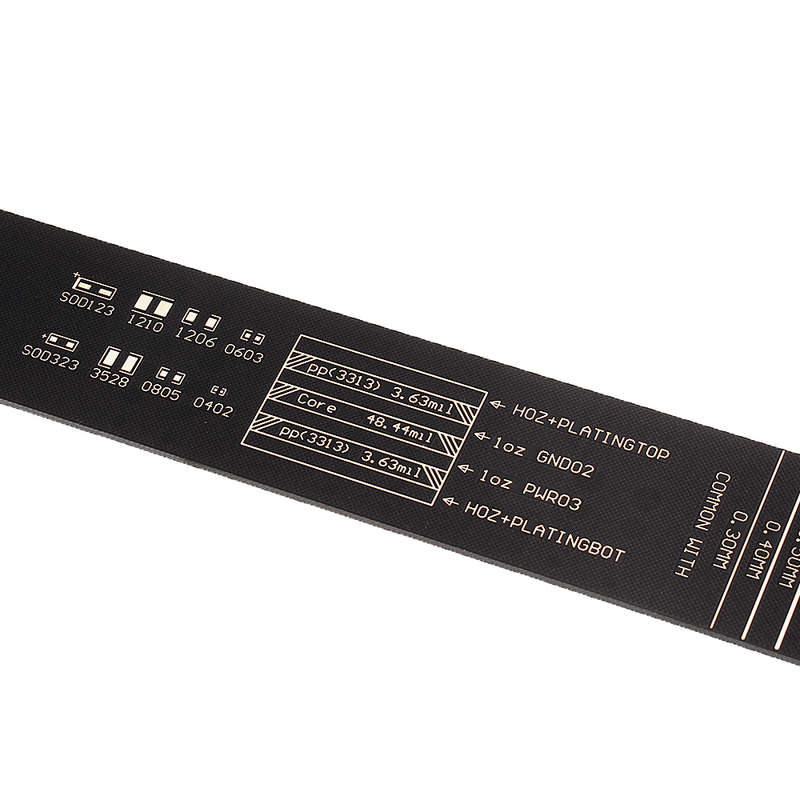

Commonly used CHIP component:
1.TO252-3
2.SOT223
3.SOT89-3
4.SOT23-6
5.SOT23-3
6.SOD123
7.SOD323
8.1210
9.3528
10.1206
11.0805
12. 0603
13. 0402
14.TO92

Features:
1. In addition to measuring the basic functions of millimeter and inch sizes, it also integrates relevant information for PCB design such as angle gauges, devices, IC pin spacing tables, resistor and capacitor chip package, the commonly used diameter reference drill, line width size reference.
2. We printed this information on FR-4 gold-plated PCBs.
3. R-4 gold-plated PCB, high-end atmosphere, high hardness, wear resistance.

Package Included:
1 x 25cm PCB Ruler
