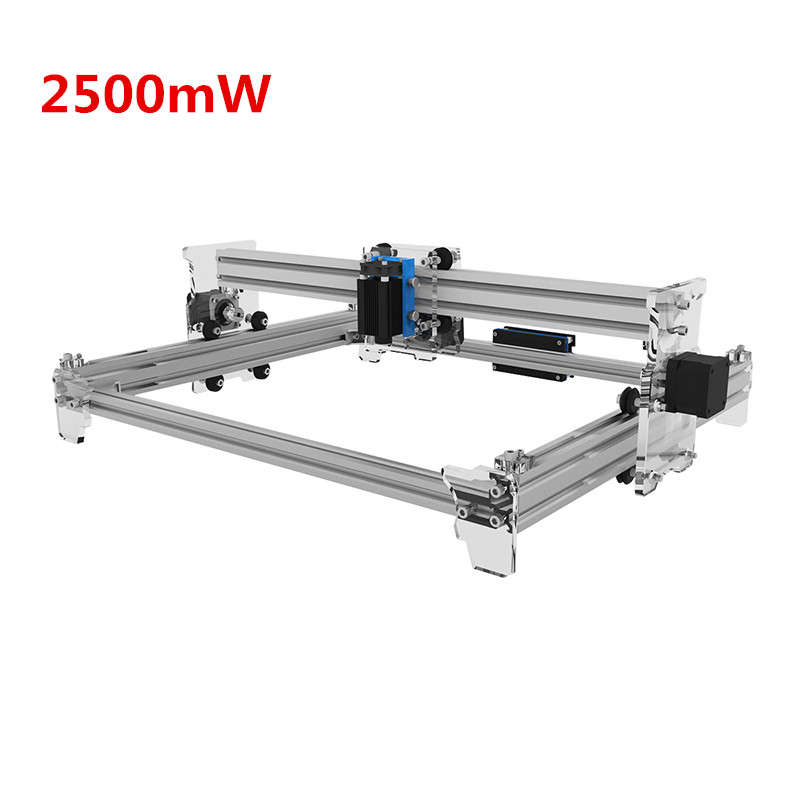

EleksLaser A3 2500mW Desktop DIY Violet Laser Engraver Cutter:
How to Assemble The Laser Machine (Old Version,some parts have been changed):
How to Assemble The Laser Machine (New Version):
How cool the laser machine it can be! (Taking 1.6W A5 laser machine as example.)
Specifications:
Brand | EleksMaker |
Model | EleksLaser-A3 pro 2.5W |
Material | Stainless Steel and Acrylic |
Working Voltage | DC 12V |
Working Current | DC 2.5A |
Laser Power | 2.5W / 2500mW |
Control Software System | Advanced Edition(GRBL)/ Simple version(Benbox) |
Engraving Accuracy | 0.01mm |
Engraving Area | 30x40cm / 11.81 x 15.75inch (maximum) |
Engraved object height limitatiion | No Limitation |
Packaging Size | 58x40x14cm / 22.83x15.75x5.51inch (L*W*H) |
Assembled Product Size | 60x46x18cm / 23.62x18.11x7.09inch (L*W*H) |
Package Weight | 4.60kg |
Certification | CE, FCC, FDA(Please contact us if you need them) |
Function | ideal for amateur laser engraving usage low-light positioning and freedom positioning functions. |
Features | 30X40cm ultra large engraving area,gantry shape design, no engraving height limitation. |
Three stepper motor drive providing faster moving speed. | |
2500mW violet laser module with heatsink, high laser engraving power and long-term available. | |
can print any pictures easily |
Package List:
Parts | Quantity | Parts | Quantity | |
Aluminum Stick | 5 | M6x15 Inner-hexagon Screws | 12 | |
Acrylic Board | 9 | M5x10 Inner-hexagon Screws | 8 | |
Stepper Motor | 3 | M5x10 Inner-hexagon Screws | 8 | |
Motor Drum in-phase | 3 | M5x30 Inner-hexagon Screws | 10 | |
Laser Module | 1 | M5x5 |
