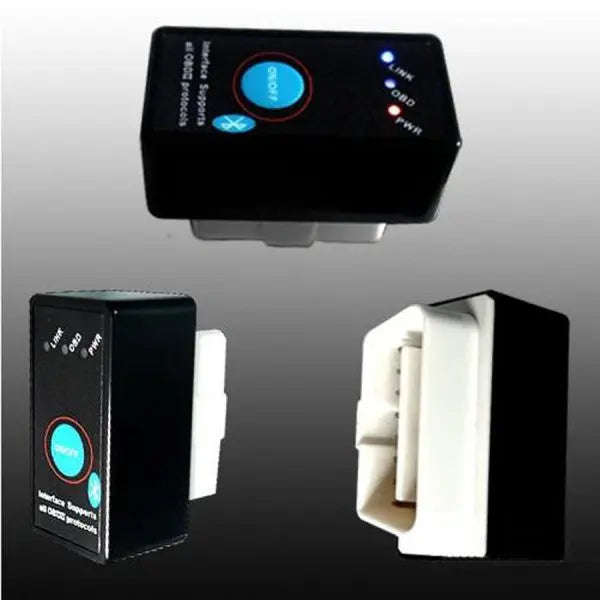

ELM 327 Bluetooth OBD2 Scanner

Functions:

* Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

* Clear trouble codes and turn off the MIL ("Check Engine" light)

* Display current sensor data, including:

* Engine RPM

* Calculated Load Value

* Coolant Temperature

* Fuel System Status

* Vehicle Speed

* Short Term Fuel Trim

* Long Term Fuel Trim

* Intake Manifold Pressure

* Timing Advance

* Intake Air Temperature

* Air Flow Rate

* Absolute Throttle Position

* Oxygen sensor voltages/associated short term fuel trims

* Fuel System status

* Fuel Pressure

* Many others.

Features

OBD SCAN is the newly developed wireless scan tool. It supports all OBD-II protocols

* Automatic

* SAE J1850 PWM(41.6Kbaud)

* SAE J1850 VPW(10.4Kbaud)

* ISO9141-2(5 baud init,10.4Kbaud)

* ISO14230-4 KWP(5 baud init,10.4 Kbaud)

* ISO14230-4 KWP(fast init,10.4 Kbaud)

* ISO15765-4 CAN(11bit ID,500 Kbaud)

* ISO15765-4 CAN(29bit ID,500 Kbaud)

* ISO15765-4 CAN(11bit ID,250 Kbaud)

* ISO15765-4 CAN(29bit ID,250 Kbaud)

A.SAE J1939 CAN(29bit ID,250*Kbaud)

B.USER1 CAN(11*bit ID,125*Kbaud)

C.USER2 CAN(11*bit ID,50*kbaud)

*default settings(user adjustable)

Output Protocol: RS232 to bluetooth

Frequency: 38400

Voltage: 12V

Current: 45mA

Bluetooth: 10M

Supported platform: Android, Symbian, Windows Mobile, palm, pc, pocket pc.

Size: 70*45*25

Net Weight: 55.6g

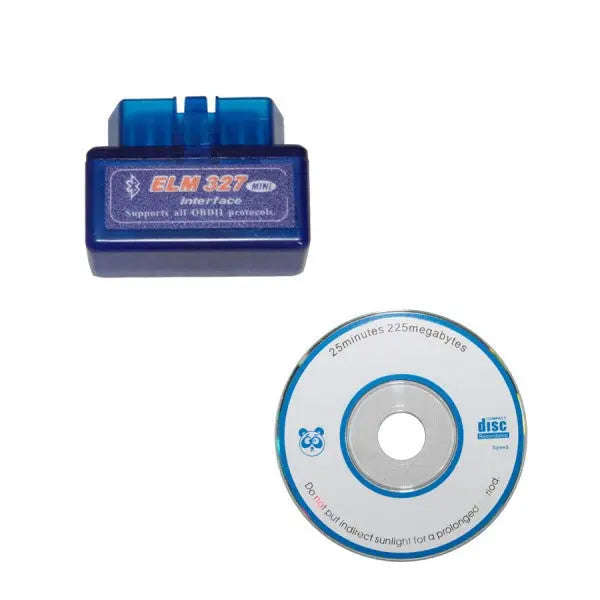

Package content:
1 * ELM327 unit (Bluetooth version)
1 * CD (Driver, Software)
